4404.0002
Schurter Circuit breaker T9-611 in fuse holder design 240VAC 48VDC 6A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
129 Pcs. in stock
Planned delivery time
Ø 32 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- T9-611
- Housing
- in fuse holder design
- Rated voltage V AC
- 240 V AC
- Rated voltage V DC
- 48 V DC
- Rated current
- 6 A
- RoHS-Conform
Specifications
Open all

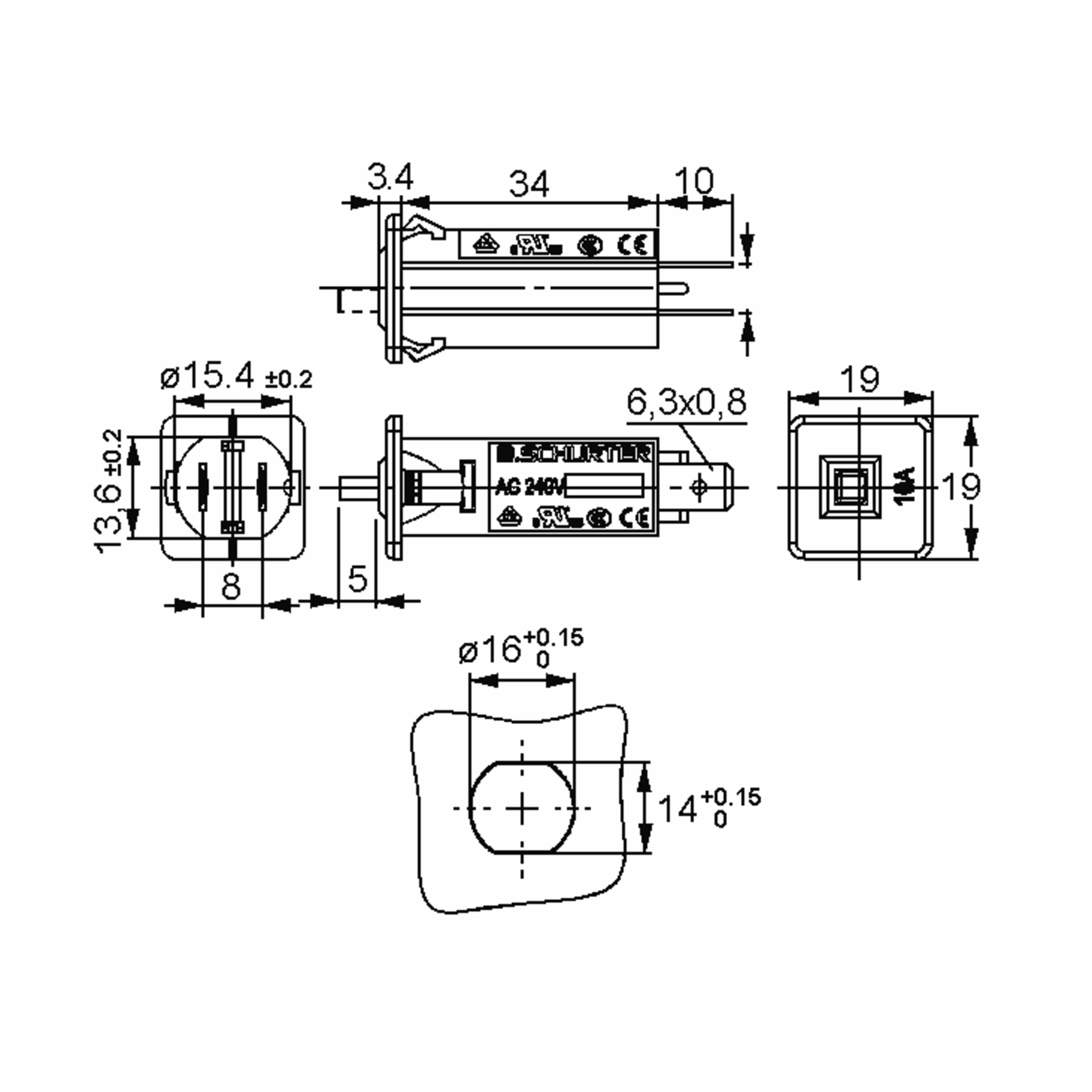

Dimensions and weights
- Dimension: Length
- 19 mm
- Dimension: Width
- 19 mm
- Dimension: Height
- 47.4 mm
- Board Strength min.
- 0.8 mm
- Board Strength max.
- 2 mm
Operating conditions
- Operating temperature range, min.
- -5 °C
- Operating temperature range, max.
- 60 °C
- Service life, typ.
- 2,500 Schaltungen
Technical features
- Rated current
- 6 A
- Switching capacity
- 48 A
- Conditional switching capacity
- 2,000 A
- Dielectric strength
- 1.500 V
- Rated voltage V AC
- 240 V AC
- Rated voltage V DC
- 48 V DC
- Insulation resistance
- 1,000 MOhm
Mechanical features
- Drilling Dimensions
- 16 mm
Safety/Certifications
- Approvals
- CCC
- CE
- VDE
- cULus
- Standards
- IEC/UL 62368-1
- Insulation class
- IP40
