3413.0123.11

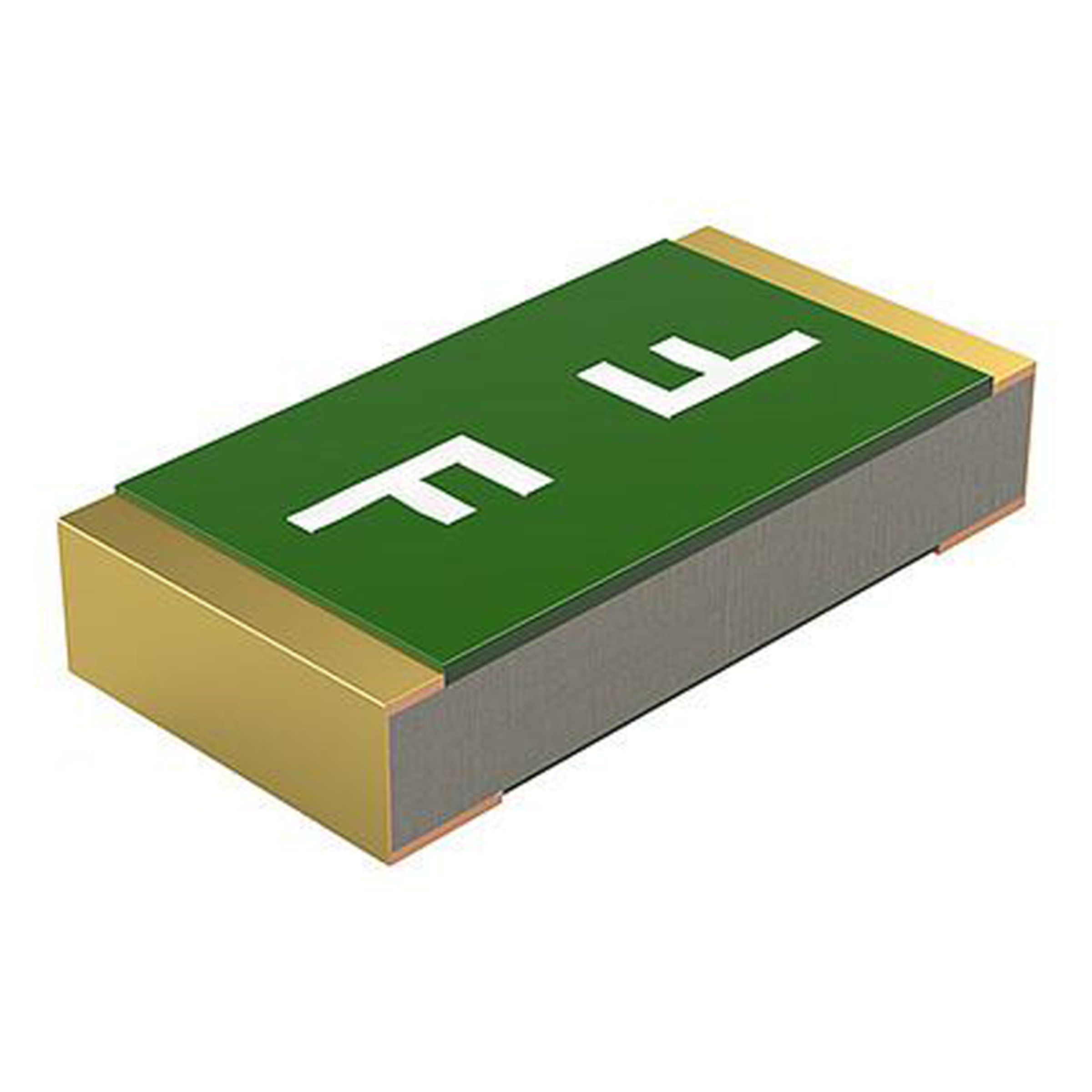

Schurter SMD fuse USF1206 superquickacting 50A 32VAC 63VDC 4A 3,2x1,6mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
90 Pcs. in stock
Planned delivery time
Ø 13 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- SMD fuse
- Series
- USF1206
- Characteristic
- super quick acting
- Package/Case
- 3,2 x 1,6 mm
- Rated current
- 4 A
- Rated voltage V AC
- 32 V AC
- Rated voltage V DC
- 63 V DC
- RoHS-Conform
Specifications
Open all

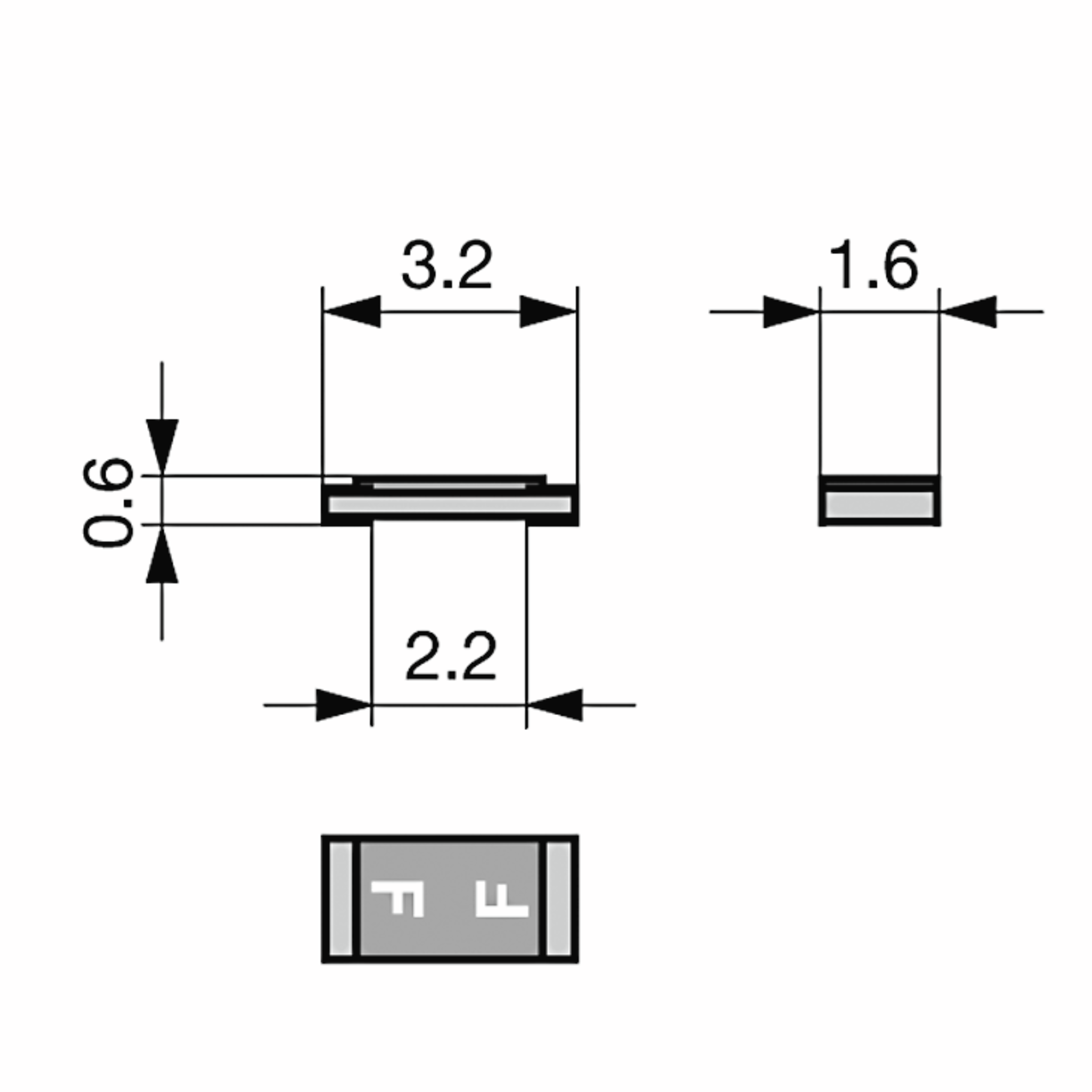

Dimensions and Weights
- Dimension: Length
- 3.2 mm
- Dimension: Width
- 1.6 mm
- Dimension: Height
- 0.6 mm
- Weight
- 0.006 g
Operating conditions
- Operating temperature range, min.
- -55 °C
- Operating temperature range, max.
- 90 °C
- Climate category IEC
- 55/90/21
Technical Features
- Rated current
- 4 A
- Melting integral
- 0.72 A²/s
- Rated breaking capacity
- 50 A
- Rated voltage V AC
- 32 V AC
- Rated voltage V DC
- 63 V DC
- Voltage drop
- 60 mV
- Solderability
- 245 °C / 30 s
Safety/Certifications
- Approvals
- CE
- cULus
- Standards
- UL 248-14
Documents
PCN_D10-088-313_EN.pdf
