3403.0266.23

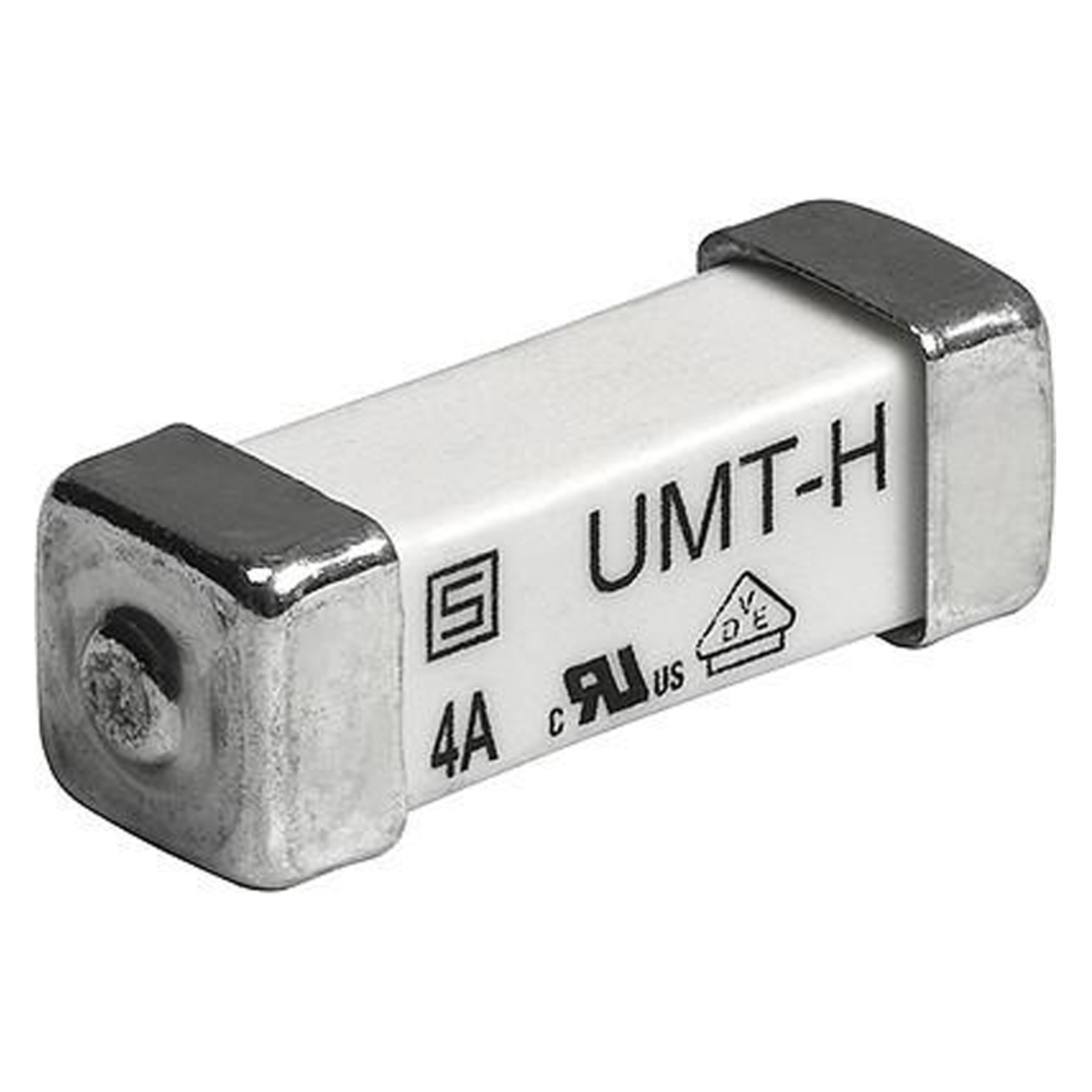

Schurter SMD fuse UMT-H inert 277VAC 250VDC 0,15A 1.500A 16x5,3mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1.500 Pcs.
1.500 Pcs.
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1500 or multiple of 1500)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- SMD fuse
- Series
- UMT-H
- Characteristic
- inert
- Package/Case
- 16 x 5,3 mm
- Rated voltage V AC
- 277 V AC
- Rated voltage V DC
- 250 V DC
- Voltage drop
- 1,680 mV
- Rated current
- 0.15 A
- RoHS-Conform
Specifications
Open all

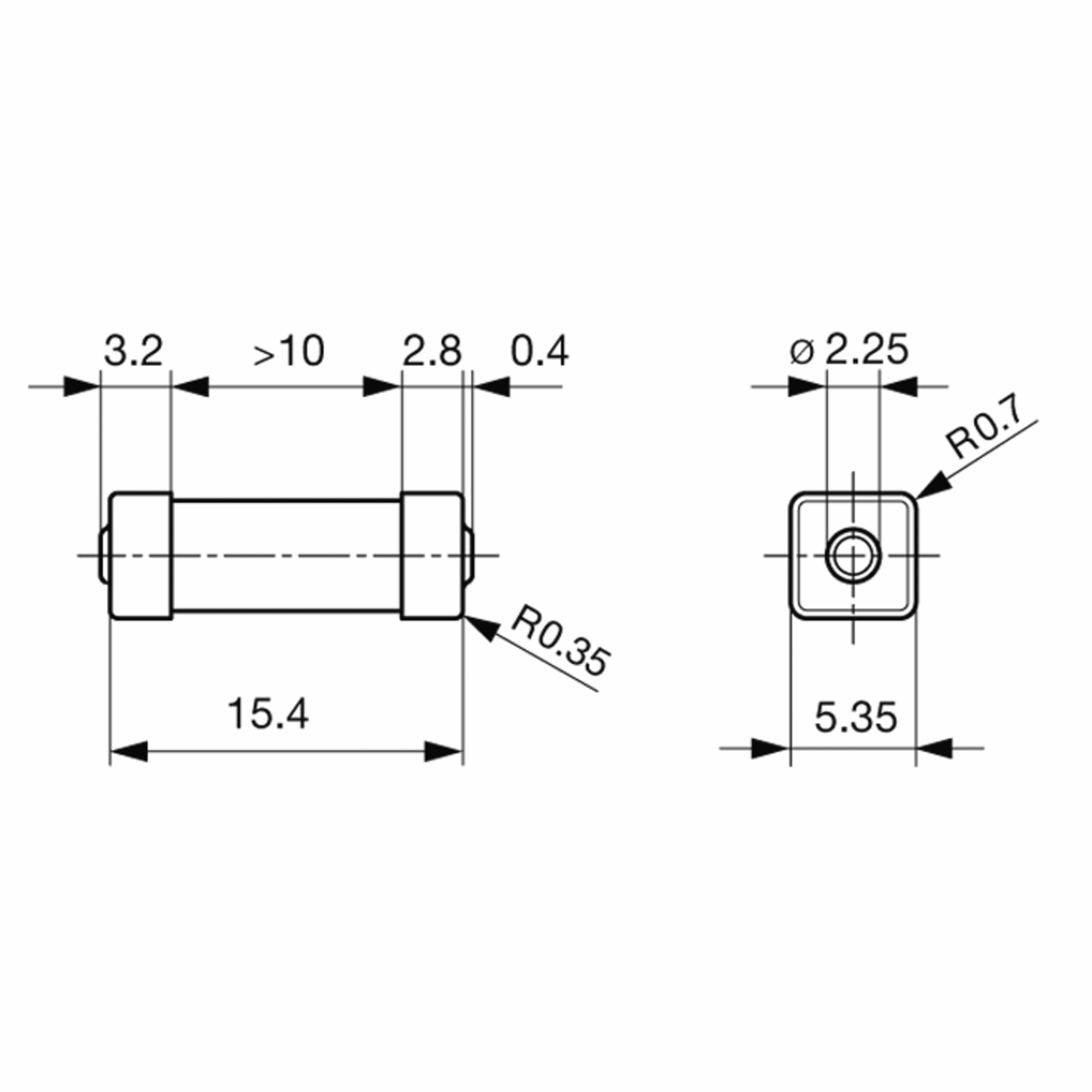

Dimensions and weights
- Dimension: Length
- 15.4 mm
- Dimension: Width
- 5.35 mm
- Dimension: Height
- 5.35 mm
- Weight
- 1.42 g
Operating conditions
- Operating temperature range, min.
- -55 °C
- Operating temperature range, max.
- 125 °C
- Climate category IEC
- 55/125/21
Technical features
- Rated current
- 0.15 A
- Melting integral
- 0.055 A²/s
- Rated breaking capacity
- 1.500 A
- Rated voltage V AC
- 277 V AC
- Rated voltage V DC
- 250 V DC
- Voltage drop
- 1,680 mV
- Power loss, max.
- 410 mW
- Solderability
- 245 °C / 30 s
Safety/Certifications
- Approvals
- CE
- CQC
- IEC
- UK CA
- UL
- VDE
- cULus
- Standards
- UL 248-14, IEC 60127-7, IEC/UL 62368-1
