Schurter Fuse holder 5x20 250VAC for G-fuses 5x20mm 10A PC2 IP40
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
200 Pcs. in stock
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable device fuses and automotive fuses. - Type
- Fuse holder 5x20
- Series
- FPG3
- Housing
- closed
- Insulation class
- IP40
- Applications
- for G-fuses 5x20mm
- Rated voltage V AC
- 250 V AC
- Rated current
- 10 A
- Nominal power consumption
- 2.5 W
- Contact hazard protection Category
- PC2
- RoHS-Conform
Specifications
Open all

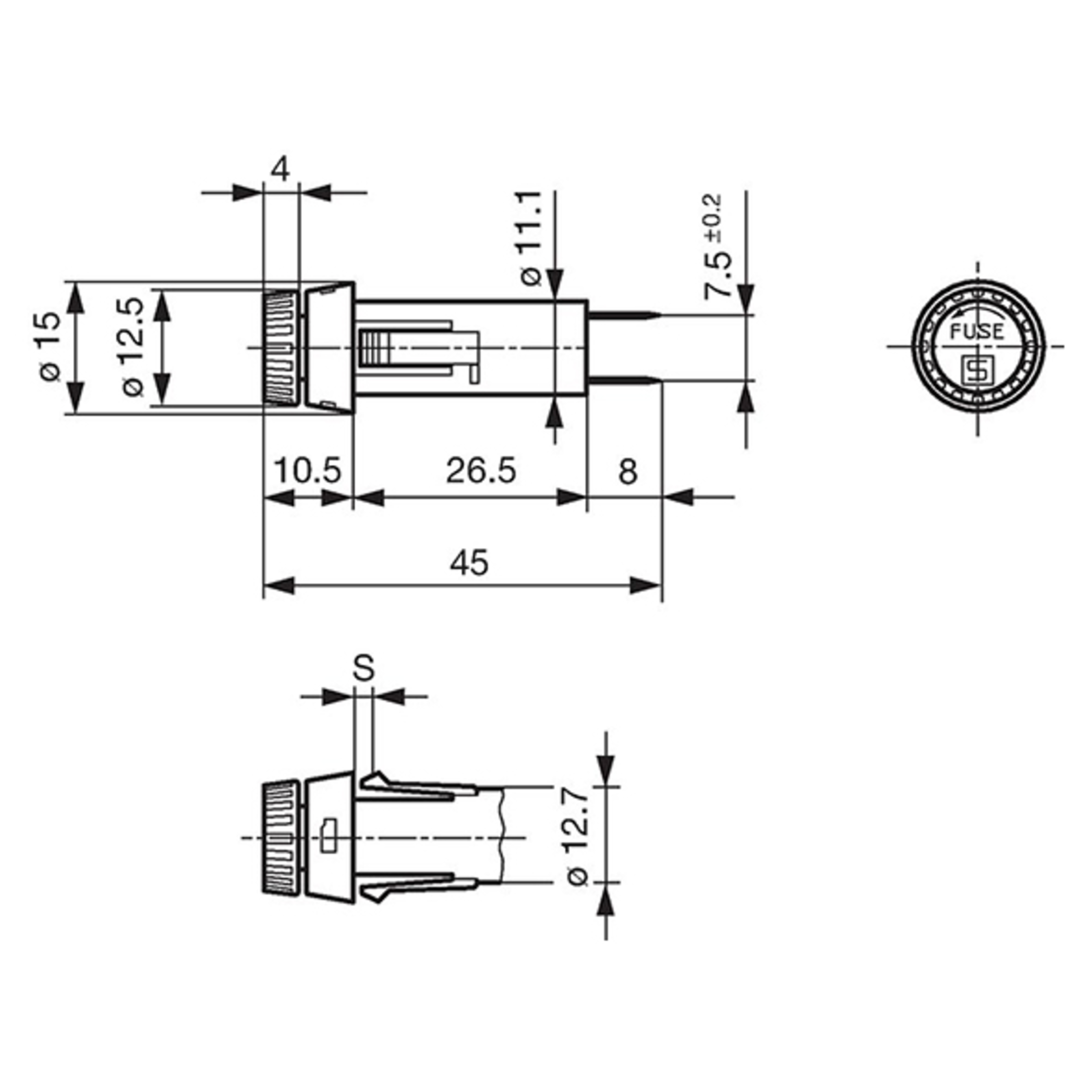

Dimensions and Weights
- Dimension: Height
- 45 mm
- Diameter
- 15 mm
- Pin length
- 8 mm
- Pitch
- 7.5 mm
- Weight
- 5.3 g
- Board Strength min.
- 2 mm
- Board Strength max.
- 3 mm
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
- Climate category IEC
- 40/85/21
Technical Features
- Rated current
- 10 A
- Dielectric strength
- 3 kV
- Surge voltage resistance
- 4 kV
- Rated voltage V AC
- 250 V AC
- Contact resistance, max.
- 10 mOhm
- Insulation resistance
- 10 MOhm
- Nominal power consumption
- 2.5 W
- Solderability
- 350 °C / 2 s
Safety/Certifications
- Approvals
- CE
- IEC
- KTL
- UK CA
- VDE
- cCSA
- cULus
- Standards
- IEC 60127-6, UL 4248-1, CSA C22.2 no. 4248.1, IEC/UL 62368-1, IEC 60335-1
- Insulation class
- IP40
- Contact hazard protection Category
- PC2
