3-158-706
Schurter Supercapacitor SCCC THT axial 5,5V 1000mF P5mm -25°C...70°C
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1134 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1134 or multiple of 1134)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Supercapacitor
- Capacity
- 1.000 mF
- Capacity Tolerance [%]
- 0/30
- Rated voltage DC
- 5.5 V
- Assembly Type
- THT
- Housing
- axial
- Pitch
- 5 mm
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 70 °C
- RoHS-Conform
Specifications
Open all

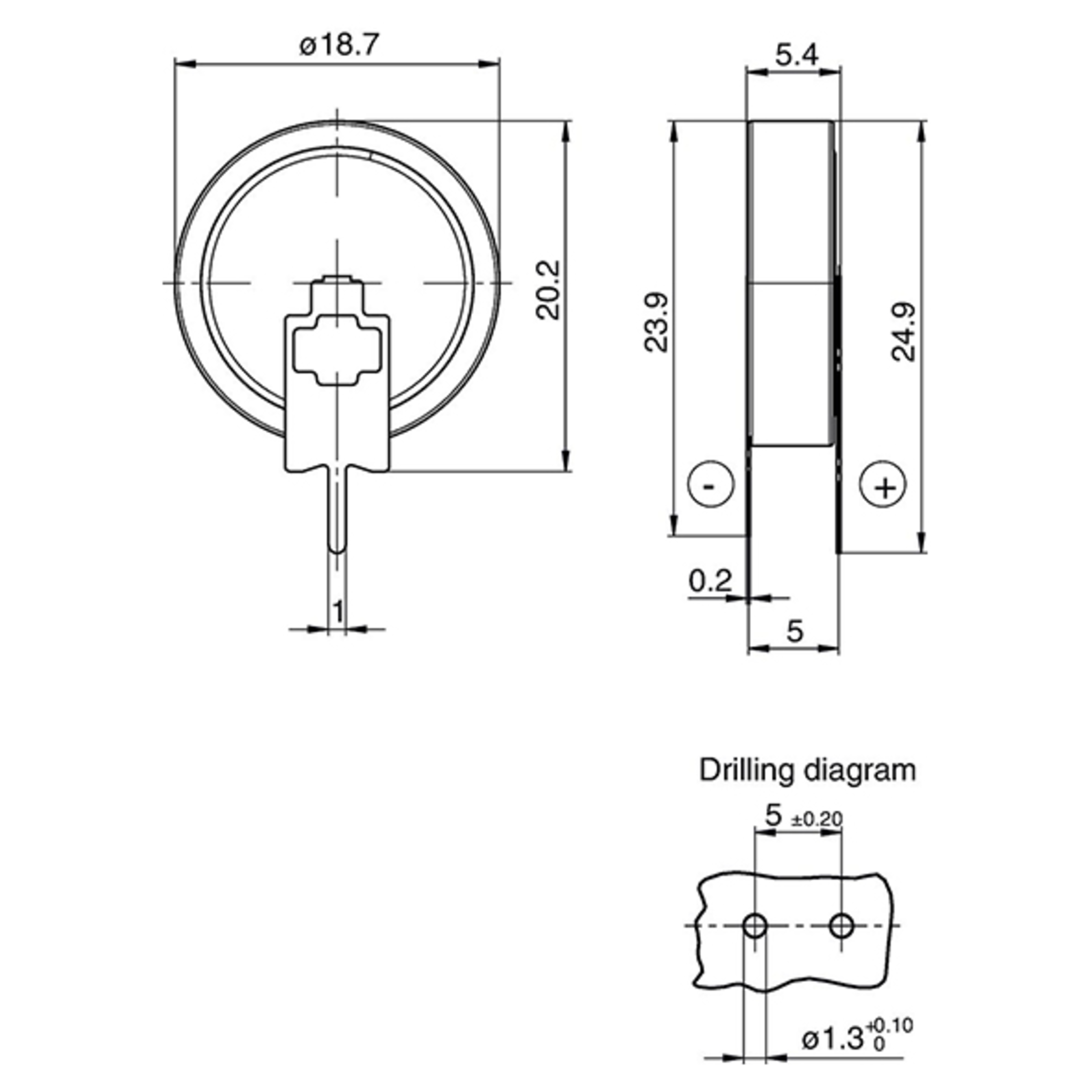

Dimensions and Weights
- Diameter
- 18.7 mm
- Dimension: Width
- 5.4 mm
- Dimension: Height
- 24.9 mm
- Weight
- 4.3 g
- Pitch
- 5 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Capacity
- 1.000 mF
- Capacity
- 1,000
- Capacity unit
- mF
- Capacity Tolerance [%]
- 0/30
- Current, max.
- 0.089 A
- Equivalent series resistance (ESR)
- 15 Ohm
- Rated voltage DC
- 5.5 V
Safety/Certifications
- Approvals
- CE
- UK CA
