3-158-702
Schurter Supercapacitor SCCC THT axial 5,5V 100mF P4,7mm -25°C...70°C
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2464 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 2464 or multiple of 2464)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Supercapacitor
- Capacity
- 100 mF
- Capacity Tolerance [%]
- -20/150
- Rated voltage DC
- 5.5 V
- Assembly Type
- THT
- Housing
- axial
- Pitch
- 4.7 mm
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 70 °C
- RoHS-Conform
Specifications
Open all

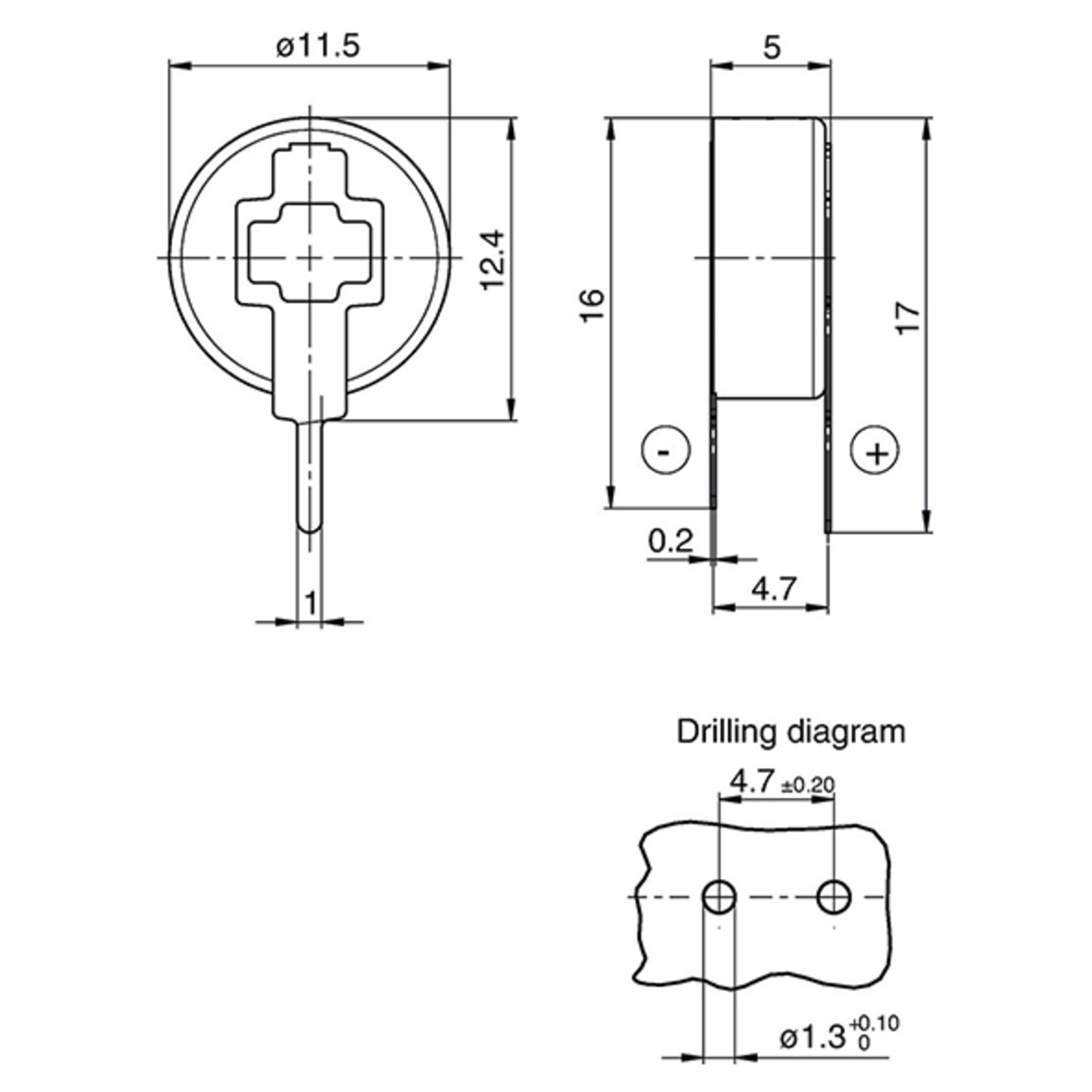

Dimensions and Weights
- Diameter
- 11.5 mm
- Dimension: Width
- 5 mm
- Dimension: Height
- 17 mm
- Weight
- 1.4 g
- Pitch
- 4.7 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Capacity
- 100 mF
- Capacity
- 100
- Capacity unit
- mF
- Capacity Tolerance [%]
- -20/150
- Current, max.
- 0.025 A
- Equivalent series resistance (ESR)
- 50 Ohm
- Rated voltage DC
- 5.5 V
Safety/Certifications
- Approvals
- CE
- UK CA
