3-156-062
Schurter EV fuse ADO 10,3x38mm 10,3x38mm 750VDC 20A
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 60 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1080 or multiple of 1080)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable fuse holders for vehicles. - Type
- EV fuse
- Series
- ADO
- Design
- PCB
- Rated current
- 20 A
- Rated voltage V DC
- 750 V DC
- RoHS-Conform
Specifications
Open all

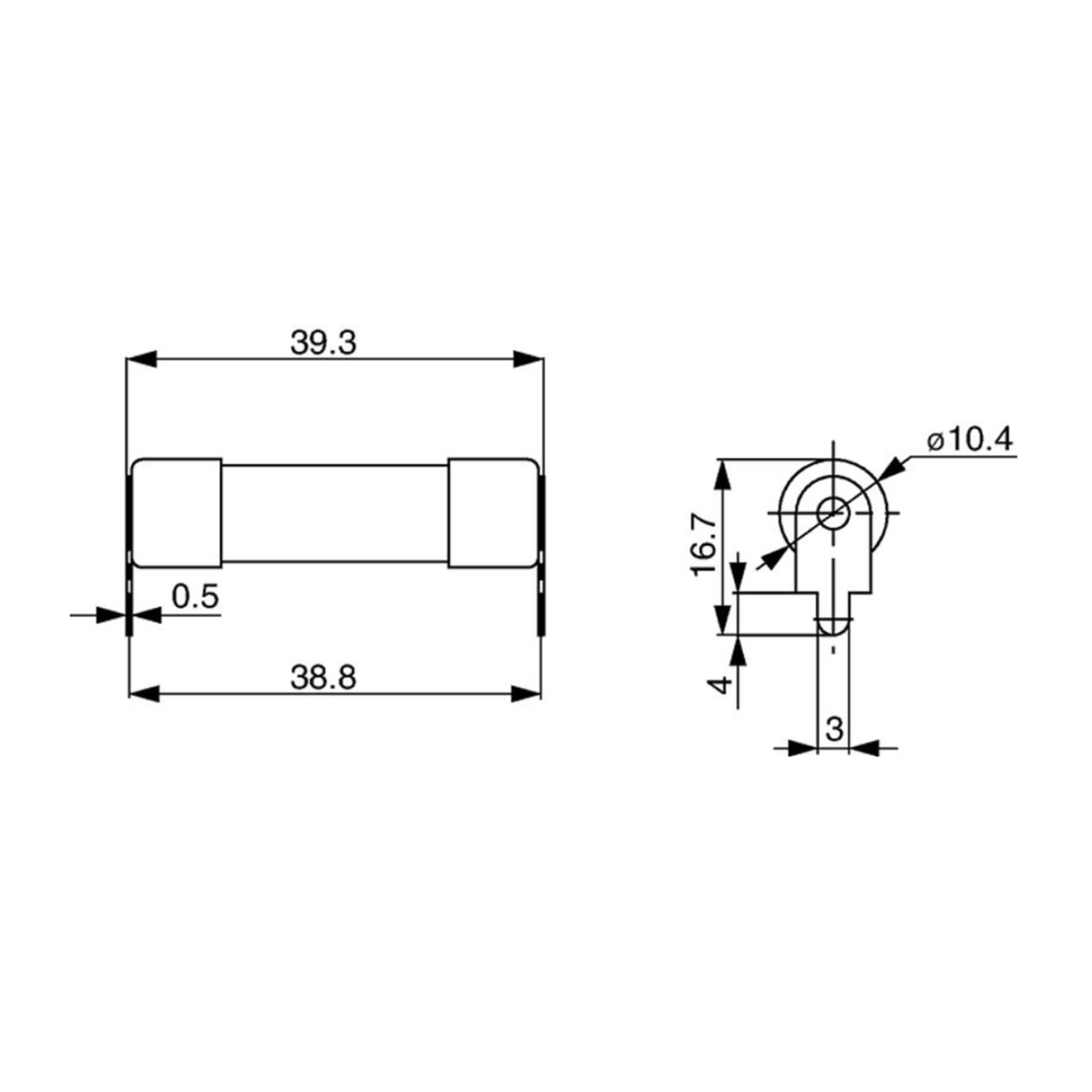

Dimensions and Weights
- Dimension: Length
- 39.3 mm
- Dimension: Height
- 16.7 mm
- Diameter
- 10.4 mm
- Pitch
- 38.8 mm
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 125 °C
Technical Features
- Rated current
- 20 A
- Melting integral
- 54 A²/s
- Rated breaking capacity
- 20 kA
- Rated voltage V DC
- 750 V DC
- Power loss, max.
- 3,9 W
Safety/Certifications
- Approvals
- CE
- Standards
- UL 248-20, ISO 8820-8, GB/T31465.6, JASO D622
