3-153-423
Schurter SMD Supercapacitor SCPB 5V 90mF 20mmx18mmx2,1mm -40°C...70°C Low ESR
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
5 Pcs. in stock
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Supercapacitor
- Capacity
- 90 mF
- Rated voltage DC
- 5 V
- Assembly Type
- SMD
- Housing
- AS21
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
- RoHS-Conform
Specifications
Open all

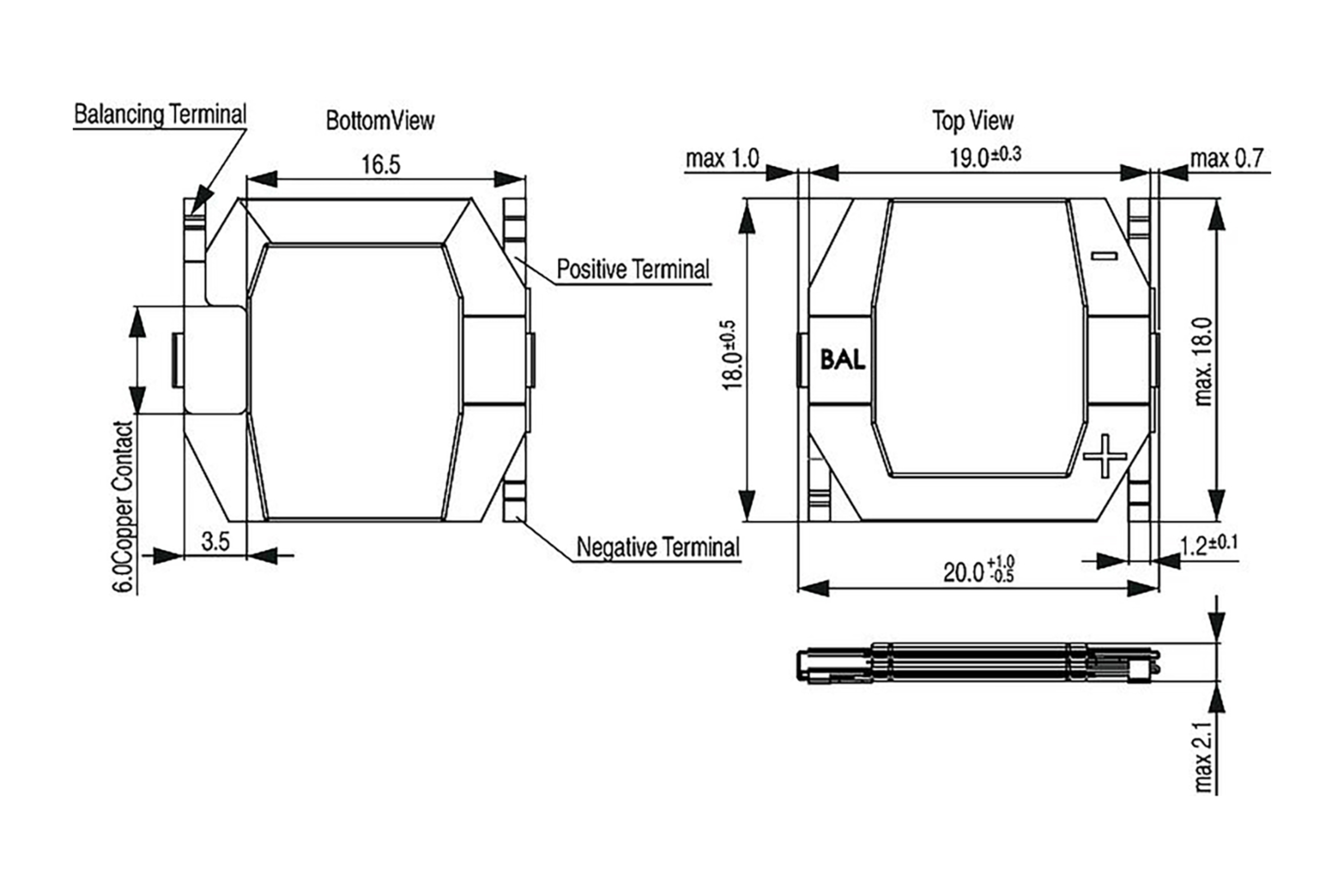

Dimensions and Weights
- Dimension: Length
- 20 mm
- Dimension: Width
- 18 mm
- Dimension: Height
- 2.1 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Capacity
- 90 mF
- Capacity
- 90
- Capacity unit
- mF
- Current, max.
- 30 A
- Ripple Current
- 4.500 mA
- Equivalent series resistance (ESR)
- 95 mOhm
- Rated voltage DC
- 5 V
Safety/Certifications
- Approvals
- CE
- UK CA
Documents
AN_Supercaps_EN.pdf
