3-153-043

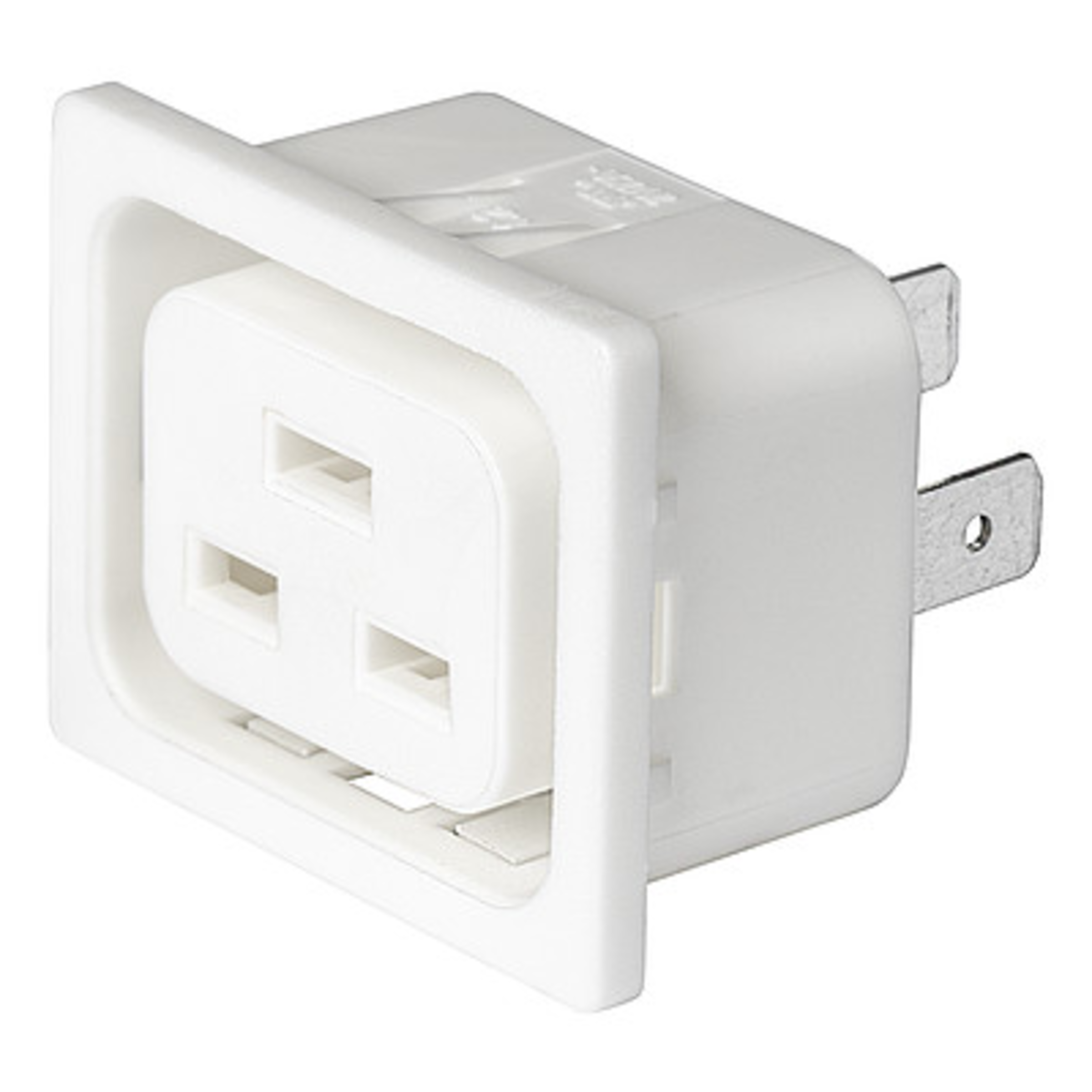

Schurter 4792 Panel J 3 Pole Plug in Thermoplast (TP) 16A 250VAC 70°C I
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Connector Contact
- Plug in
- Series
- 4792
- Colour
- white
- Housing material
- Thermoplast (TP)
- Pin Temperature
- 70 °C
- Housing
- rectangular
- Specifications
- Panel
- Number of poles
- 3
- Standards
- IEC 60320-1
IEC 60335-1
IEC 62368-1
UL 60320-1
UL 62368-1 - Contact Type
- J
- Fastening
- Snap-In
- Class of Inflammability
- UL 94 V-0
- Alignment
- straight
- Operating Temperature Max.
- 70 °C
- Rated voltage AC
- 250 V AC
- Rated current
- 16 A
- Operating Temperature Min.
- -25 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Width
- 34.1 mm
- Dimension: Height
- 23.4 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 70 °C
- Pin Temperature
- 70 °C
Technical Features
- Rated current
- 16 A
- Rated voltage AC
- 250 V AC
Mechanical Features
- Faston terminal
- 6.3 mm
- Housing material
- Thermoplast (TP)
Safety/Certifications
- Approvals
- CE
- CSA
- IEC
- UKCA
- UL
- Standards
- IEC 60320-1
- IEC 60335-1
- IEC 62368-1
- UL 60320-1
- UL 62368-1
- Class of Inflammability
- UL 94 V-0
- Protection class
- I
