3-150-067

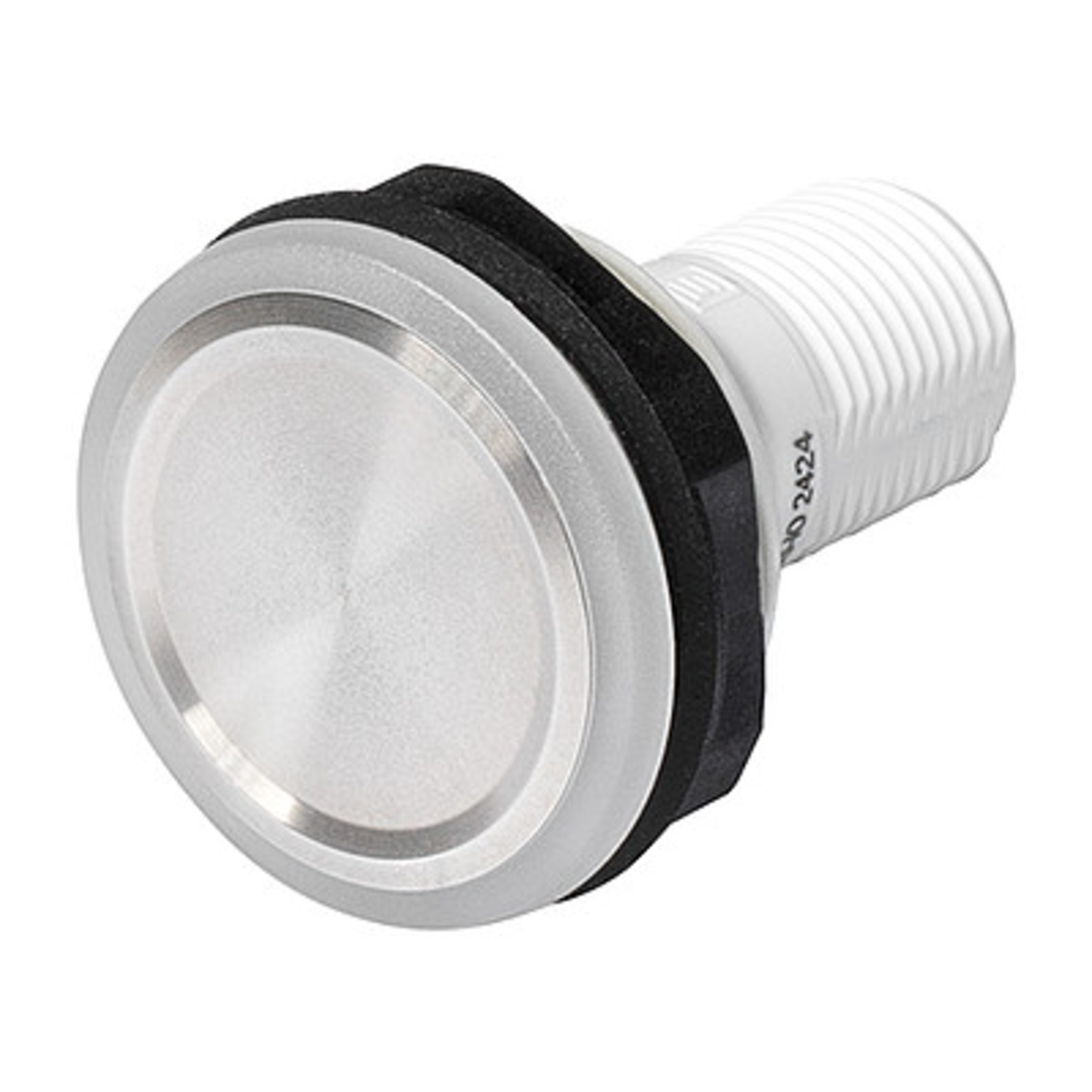

Schurter Pushbutton MSS-IO 1x0-(E) Push-in connector translucent 24VDC 3N Ring illuminated Multicolor

3-150-067
NEW
Manufacturer Part No.
3-150-067
Schukat Part No.
3-150-067
Manufacturer
Schurter
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Pushbutton
Series
MSS-IO
Body colour
translucent
contacts
1xNO
Type of actuator
Push button
Function
1x0-(E)
Actuator colour
silver
Diameter
25.5 mm
Number of poles
4
illumination
illuminated
Panel cut out
Ø22,1mm
Actuating force, max.
3 N
Operating temperature range, min.
-40 °C
Operating temperature range, max.
85 °C
Approvals
CE
UK CA
Protection class
IP67
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Schurter
Series
  • MSS-IO
Product group
  • E3132
Type
  • Pushbutton
contacts
  • 1xNO
Function
  • 1x0-(E)
Body colour
  • translucent
Type of actuator
  • Push button
Actuator colour
  • silver
illumination
  • illuminated
Type of lighting
  • Ring
Lighting Colour
  • Multicolor
Features

  • - IO-Link communication system
    - M12 plug connection

Dimensions and Weights

Diameter
  • 25.5 mm
Panel cut out
  • Ø22,1mm

Operating conditions

Operating temperature range, min.
  • -40 °C
Operating temperature range, max.
  • 85 °C
Minimum Storage Temperature
  • -40 °C
Maximum Storage Temperature
  • 85 °C

Technical Features

Switching voltage
  • 24 V DC
Service life, electrical
  • 20 x 10^6 Betätigungen
Material: Body
  • PMMA
Material: Actuator
  • Stainless steel

Mechanical properties

Thread
  • M22x1
Connection
  • Push-in connector
Actuating force, max.
  • 3 N
Number of poles
  • 4

Safety/Certifications

Approvals
  • CE
  • UK CA
Protection class
  • IP67
