3-145-273

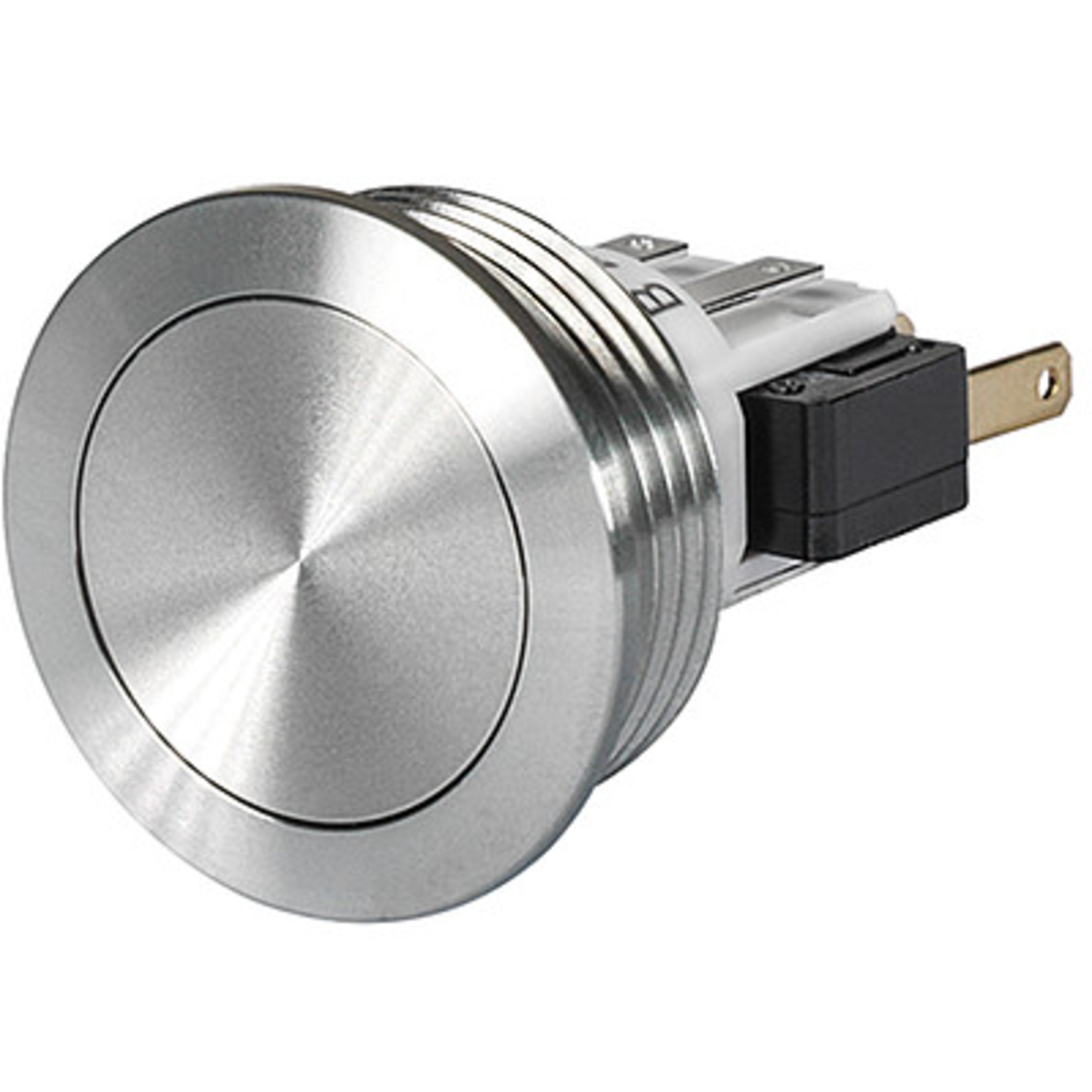

Schurter Pushbutton switch MSM II 1xCO Push-in connector silver 250VAC 5A 4,5N unlit
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
395 Pcs. in stock
Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Pushbutton switch
- Series
- MSM II
- Body colour
- silver
- contacts
- 1xCO
- Type of actuator
- Push button
- Function
- 1xCO
- Actuator colour
- silver
- Diameter
- 16 mm
- Number of poles
- 1
- illumination
- unlit
- Switching current, max.
- 5 A
- Panel cut out
- Ø16,1mm
- Actuating force, max.
- 4,5 N
- Operating temperature range, min.
- -30 °C
- Operating temperature range, max.
- 85 °C
- Approvals
- CE
UK CA - Protection class
- IP40
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Diameter
- 16 mm
- Panel cut out
- Ø16,1mm
Operating conditions
- Operating temperature range, min.
- -30 °C
- Operating temperature range, max.
- 85 °C
- Minimum Storage Temperature
- -40 °C
- Maximum Storage Temperature
- 85 °C
Technical features
- Switching voltage
- 250 V AC
- Mechanical service life
- 15 x 10^5 Betätigungen
- Switching current, max.
- 5 A
- Material: Body
- Stainless steel
- Material: Actuator
- Stainless steel
Mechanical properties
- Thread
- M16 x 1
- Connection
- Push-in connector
- Operating path
- 1 mm
- Actuating force, max.
- 4,5 N
- Number of poles
- 1
Safety/Certifications
- Approvals
- CE
- UK CA
- Protection class
- IP40
