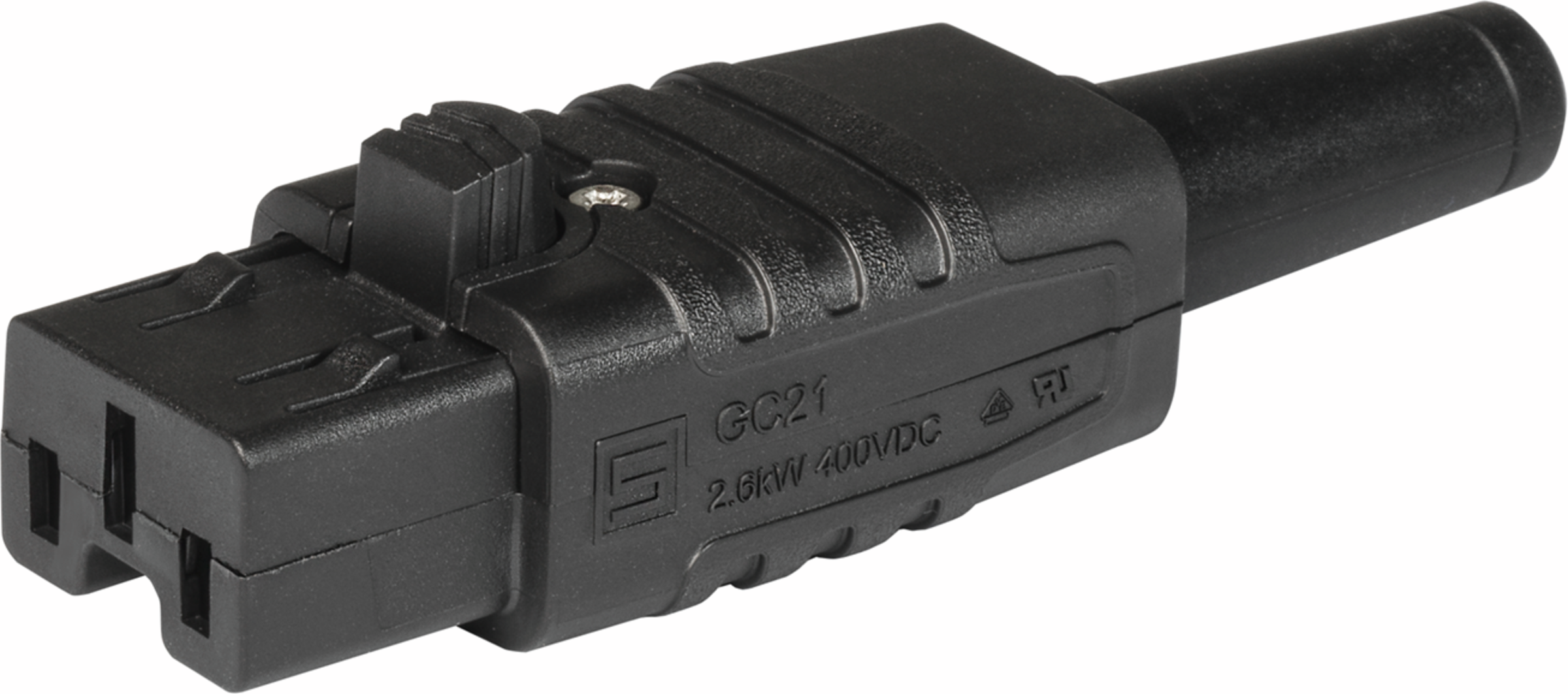

3-142-747

Schurter Panel Plastic 3pol.

Manufacturer Part No.
3-142-747
Schukat Part No.
3-142-747
Manufacturer
Schurter
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

100 Pcs. in stock

Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Series
GC21
Colour
black
Number of poles
3
Dimension: Length
101.2 mm
Package/Case
Plastic
Rated current
6.5 A
Dimension: Width
28.4 mm
Rated voltage DC
294 V DC
Dimension: Height
28.8 mm
Operating Temperature Min.
-5 °C
Standards
IEC TS 63236-1
UL Subject 2695
Approvals
UL
VDE
Operating Temperature Max.
105 °C
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Schurter
Series
  • GC21
Package/Case
  • Plastic
Contact type
  • Plug
Fastening
  • Screw mounting
Anschlusskontakt
  • Screw
Number of poles
  • 3
Kontakttyp
  • TS
Ausrichtung
  • straight
Type ( axial, radial )
  • Panel
Protective conductor
Colour
  • black
Locking
  • no

Dimensions and weights

Dimension: Length
  • 101.2 mm
Dimension: Width
  • 28.4 mm
Dimension: Height
  • 28.8 mm
Cable diameter, min.
  • 6.4 mm
Cable diameter, max.
  • 9.2 mm
Conductor cross-section (AWG), min.
  • 18 AWG
Conductor cross-section, min.
  • 0.75 mm²
Conductor cross-section (AWG), max.
  • 16 AWG
Conductor cross-section, max.
  • 1.5 mm²

Operating conditions

Operating Temperature Min.
  • -5 °C
Operating Temperature Max.
  • 105 °C

Technical features

Rated current
  • 6.5 A
Rated voltage DC
  • 294 V DC
Rated power
  • 2.6 kW

Safety/Certifications

Approvals
  • UL
  • VDE
Standards
  • IEC TS 63236-1
  • UL Subject 2695
Class of Inflammability
  • UL 94 V-0
Protection class
  • I
