3-140-093

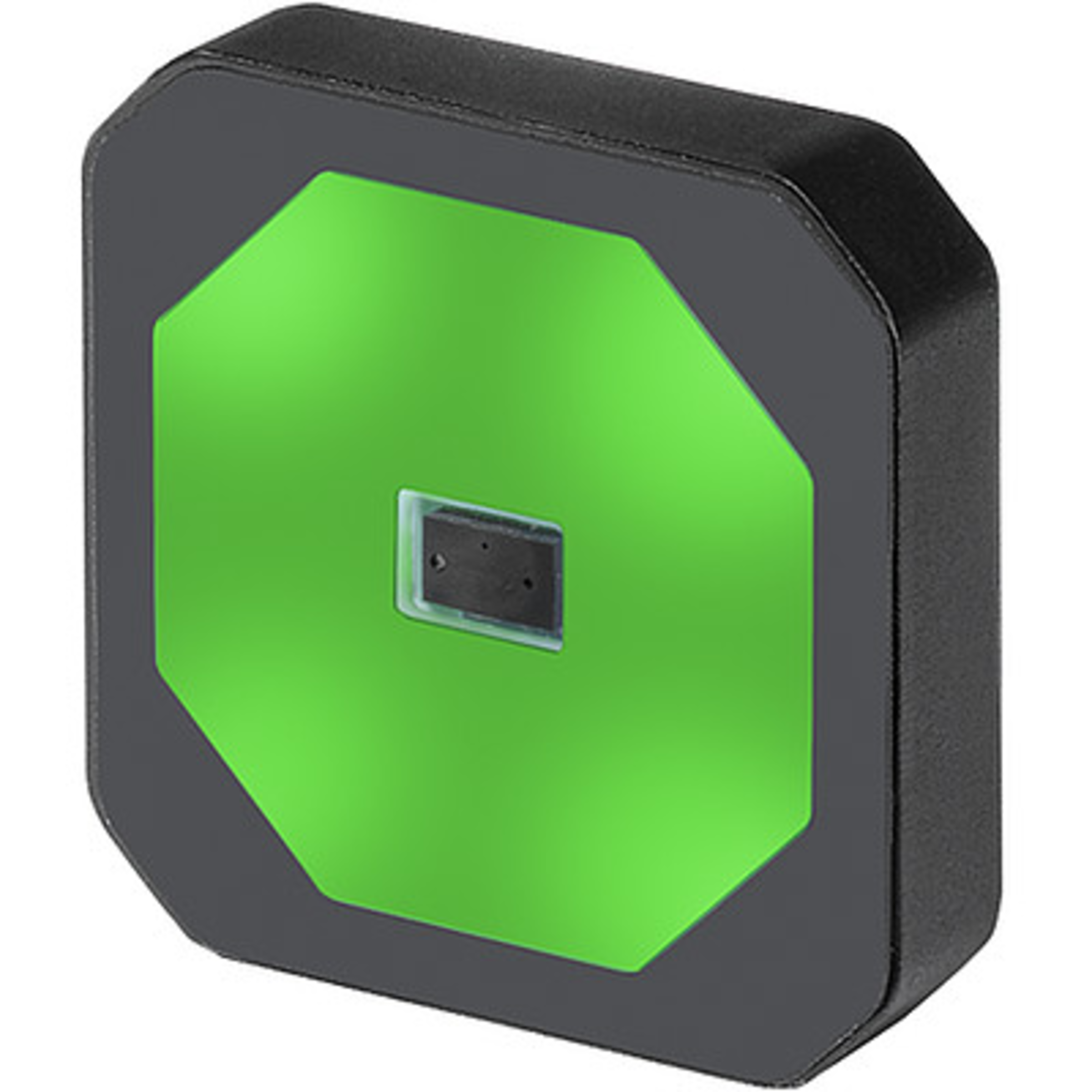

Schurter Pushbutton THS 1x0-(E) Push-in connector black 60VDC 0,1A 30mm 30mm 10,75mm Surface area illuminated Multicolor

Manufacturer Part No.
3-140-093
Schukat Part No.
3-140-093
Manufacturer
Schurter
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
20 Pcs.
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 20 or multiple of 20)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Pushbutton
Series
THS
Body colour
black
contacts
1xNO
Type of actuator
Push button
Function
1x0-(E)
Number of poles
1
illumination
illuminated
Switching current, max.
0.1 A
Operating temperature range, min.
-40 °C
Operating temperature range, max.
85 °C
Approvals
CE
UK CA
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Schurter
Series
  • THS
Product group
  • E3130 Schurter THS contactless Switch illuminated
Type
  • Pushbutton
contacts
  • 1xNO
Function
  • 1x0-(E)
Body colour
  • black
Type of actuator
  • Push button
illumination
  • illuminated
Type of lighting
  • Surface area
Lighting Colour
  • Multicolor

Dimensions and weights

Dimension: Length
  • 30 mm
Dimension: Width
  • 30 mm
Dimension: Height
  • 10.75 mm

Operating conditions

Operating temperature range, min.
  • -40 °C
Operating temperature range, max.
  • 85 °C
Minimum Storage Temperature
  • -40 °C
Maximum Storage Temperature
  • 85 °C

Technical features

Switching voltage
  • 60 V DC
LED supply voltage
  • 28 V DC
Service life, electrical
  • 10 x 10^7 Betätigungen
Switching current, max.
  • 0.1 A

Mechanical properties

Connection
  • Push-in connector
Number of poles
  • 1

Safety/Certifications

Approvals
  • CE
  • UK CA
