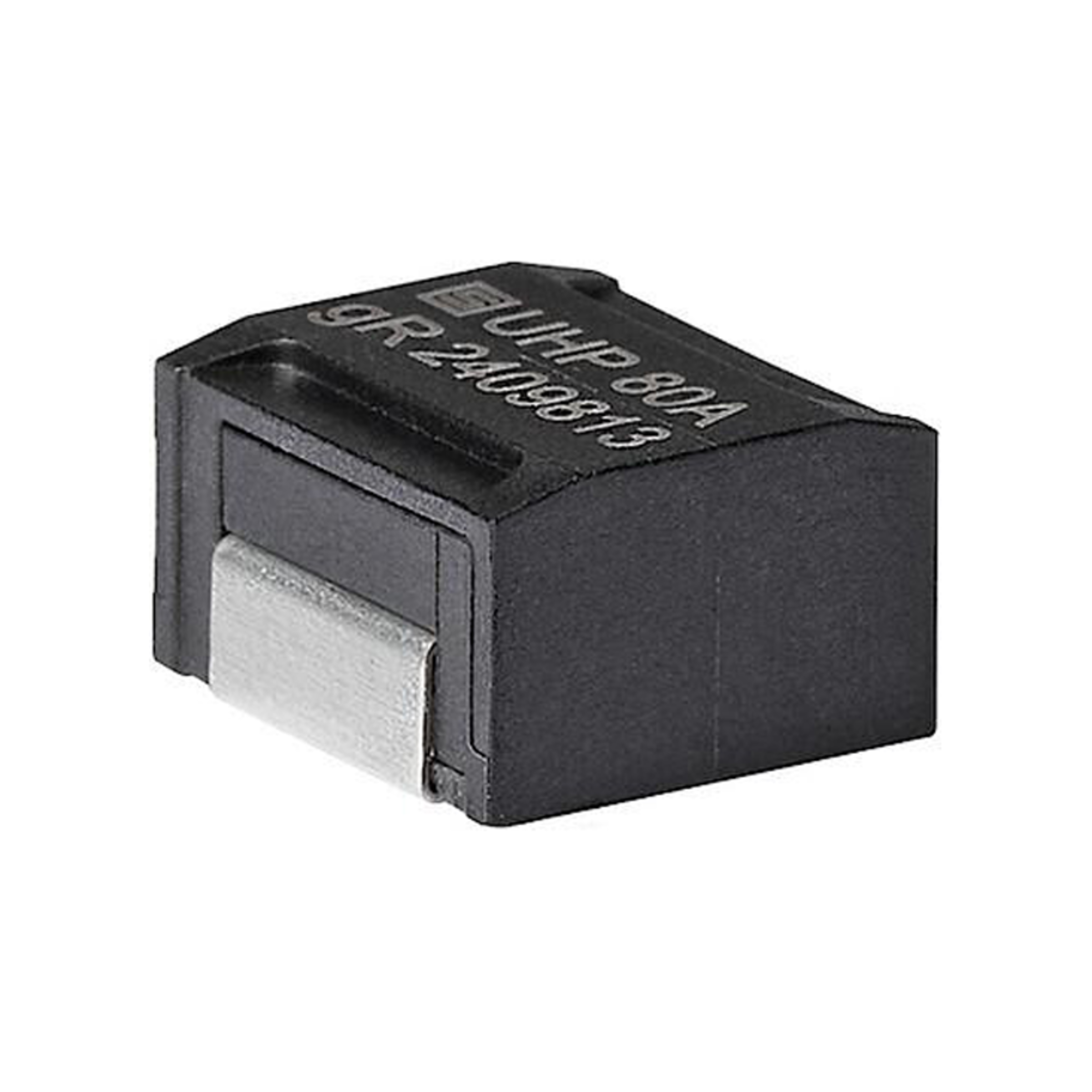

Schurter SMD fuse UHP quickacting 2.000A 80VDC 80A 11,4x10,2mm AEC-Q200
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- SMD fuse
- Series
- UHP
- Characteristic
- quick acting
- Package/Case
- 11,4 x 10,2 mm
- Rated current
- 80 A
- Rated voltage V DC
- 80 V DC
- Qualification
- AEC-Q200
- RoHS-Conform
Specifications
Open all

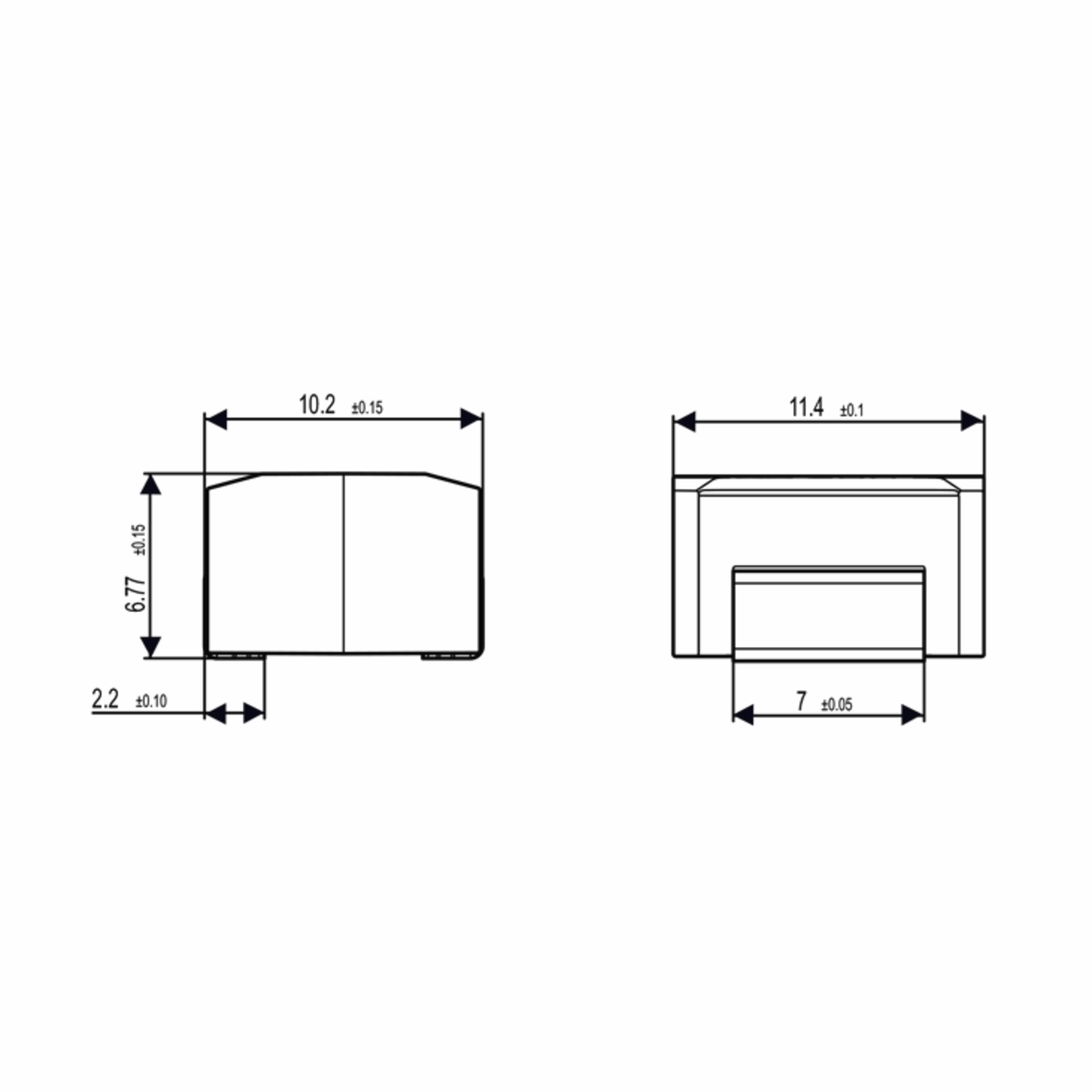

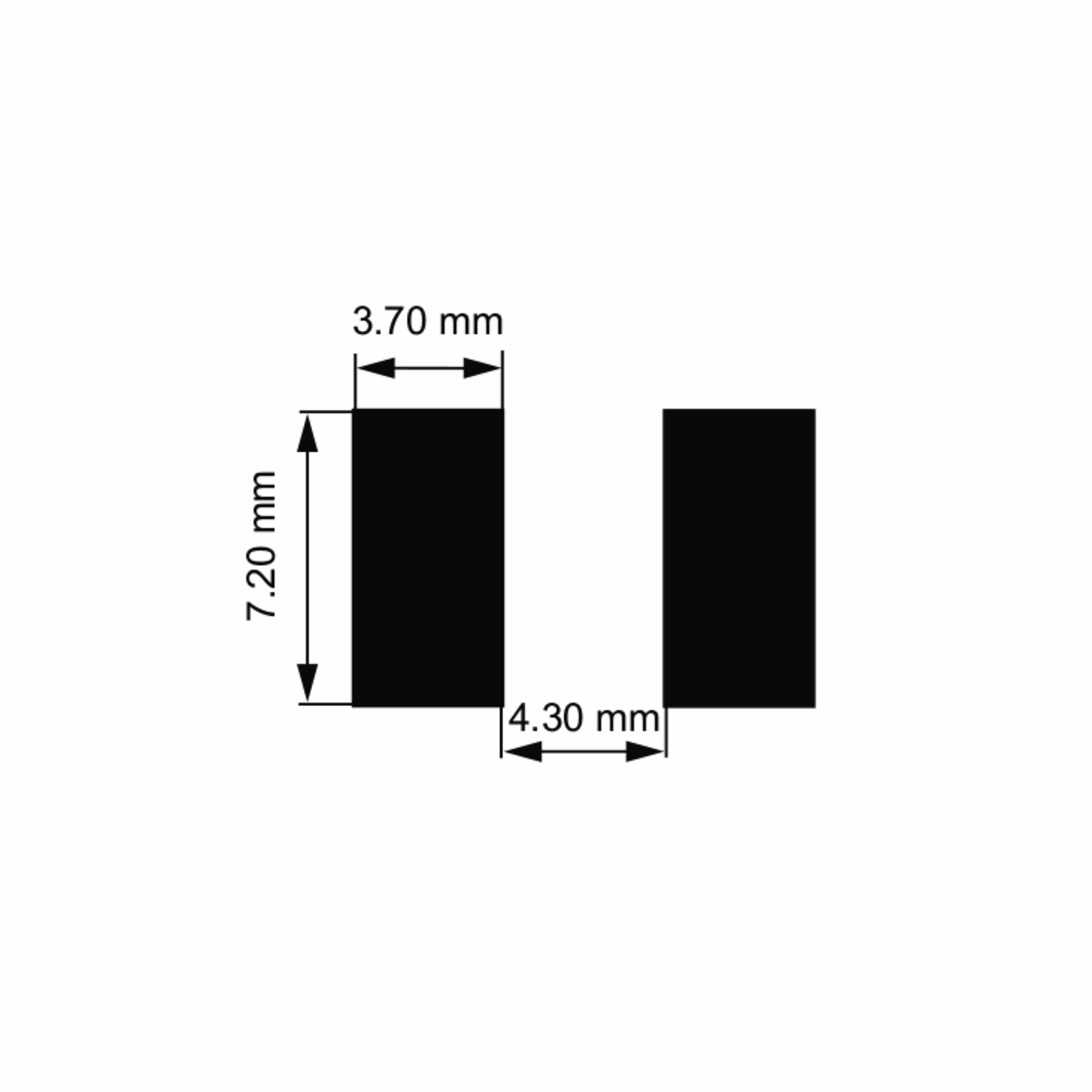

Dimensions and Weights
- Dimension: Length
- 10.2 mm
- Dimension: Width
- 11.4 mm
- Dimension: Height
- 6.77 mm
- Weight
- 1.2 g
Operating conditions
- Operating temperature range, min.
- -55 °C
- Operating temperature range, max.
- 125 °C
Technical Features
- Rated current
- 80 A
- Melting integral
- 2,100 A²/s
- Rated breaking capacity
- 2.000 A
- Rated voltage V DC
- 80 V DC
- Voltage drop
- 97 mV
- Solderability
- 245 °C / 3 s
Safety/Certifications
- Qualification
- AEC-Q200
- Approvals
- CE
- UK CA
- UL
- cCSA
- Standards
- UL 248-13, CSA C22.2 No. 248.13:22
Documents
PCN_D10-085-598_EN.pdf
PCN_D10-087-293_EN.pdf
PCN_D10-095-204_EN.pdf
