3-137-412

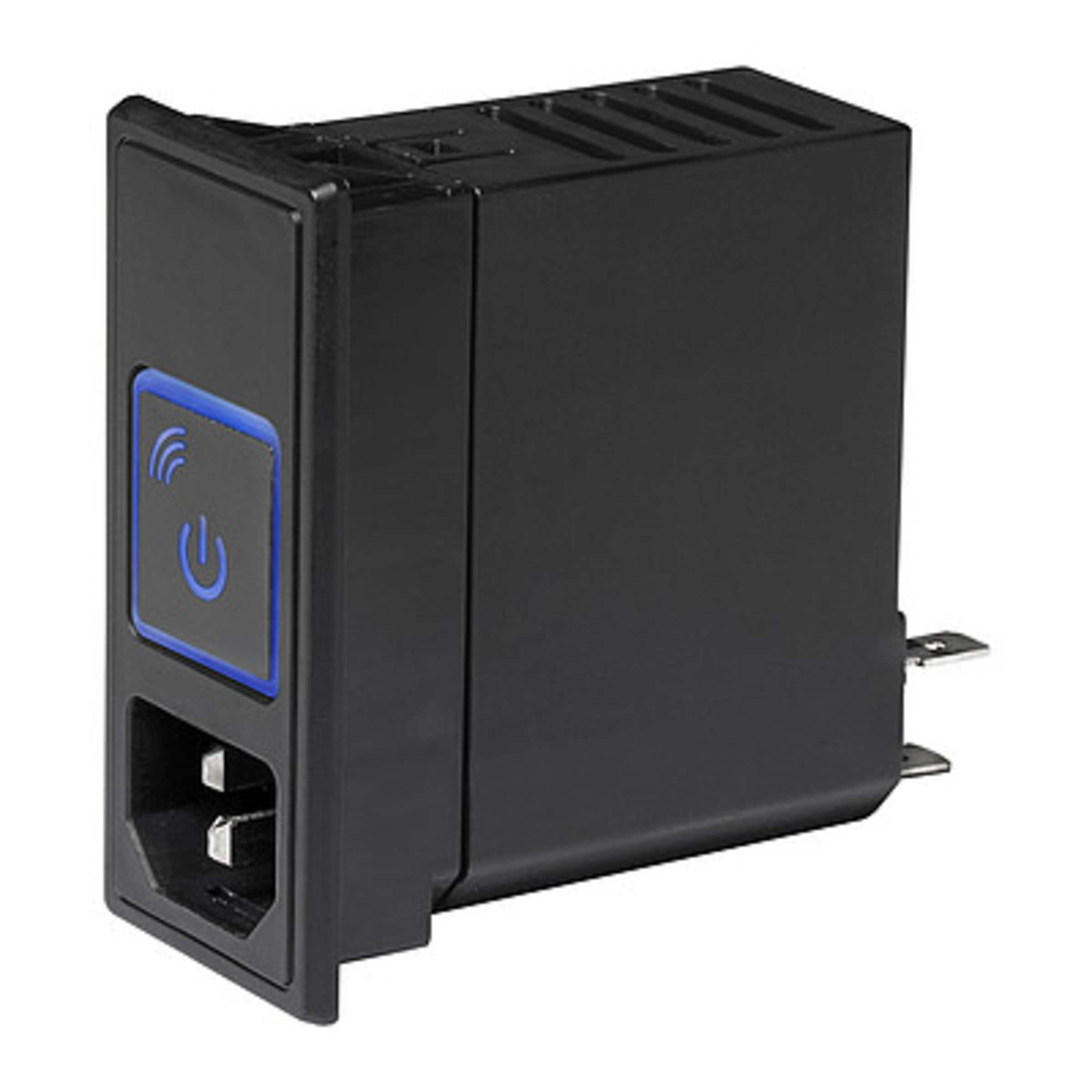

Schurter Built-in cold appliance plug DS11 Panel C14 3 Pole IP40 Plug in 10A 250VAC 70°C I
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Plug
- Type
- Built-in cold appliance plug
- Connector Contact
- Plug in
- Series
- DS11
- Colour
- black
- Pin Temperature
- 70 °C
- Housing
- rectangular
- Design
- Panel
- Number of poles
- 3
- Standards
- IEC 60320-1
- Contact Type
- C14
- Fastening
- Snap-In
- Locking
- no
- Alignment
- straight
- IP Protection Class Front Side
- IP40
- Rated voltage AC
- 250 V AC
- Rated current
- 10 A
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Width
- 73.7 mm
- Dimension: Height
- 35 mm
- Dimension: Depth
- 77.6 mm
Operating conditions
- Pin Temperature
- 70 °C
Technical Features
- Rated current
- 10 A
- Rated voltage AC
- 250 V AC
Mechanical Features
- Faston terminal
- 6.3 mm
Safety/Certifications
- Approvals
- CE
- UKCA
- VDE
- Standards
- IEC 60320-1
- Protection class
- I
- IP Protection Class Front Side
- IP40
