3-132-874

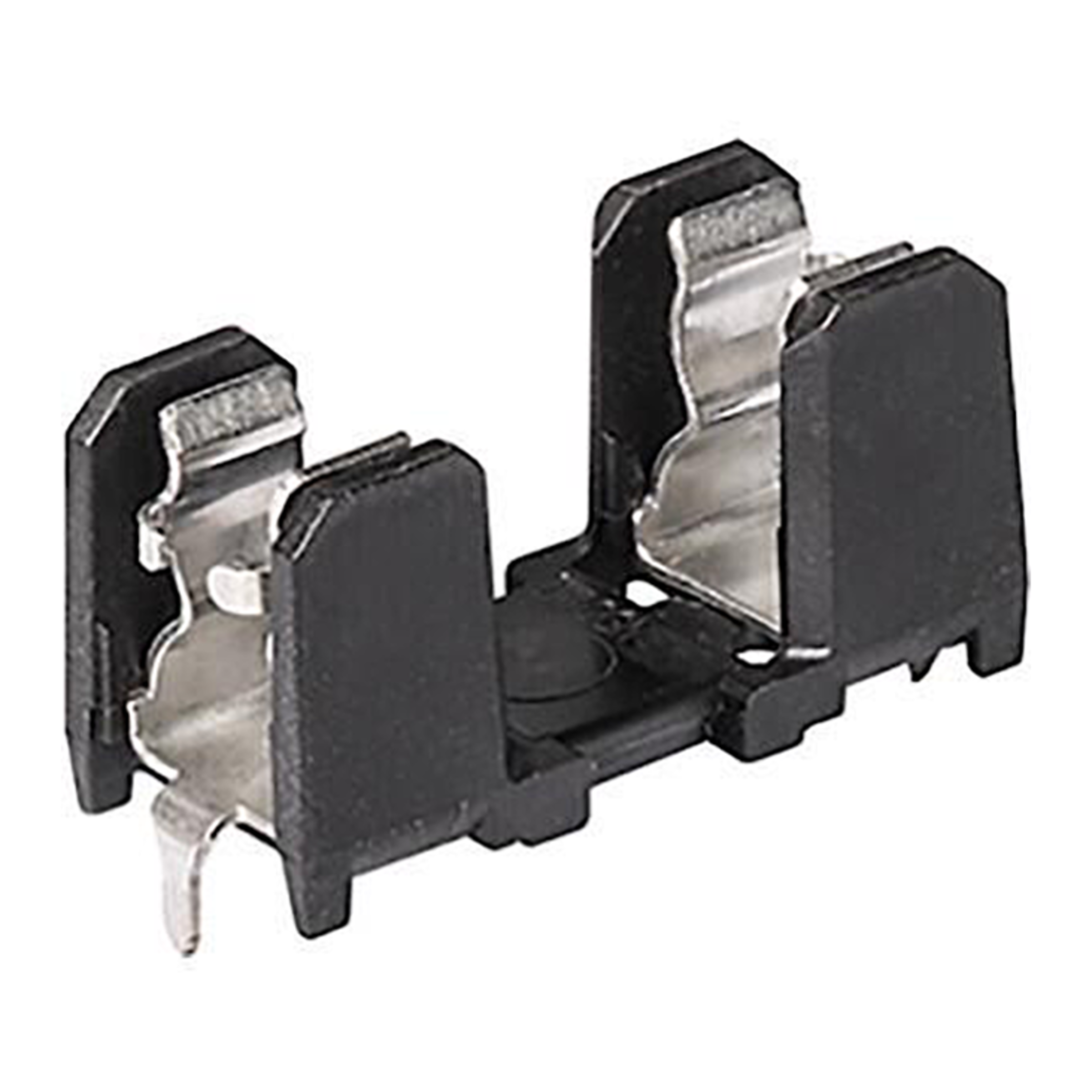

Schurter Fuse holder 5x20 500VAC
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
170 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 320 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Housing
- open
- Rated voltage V AC
- 500 V AC
- Nominal power consumption
- 4 W
- RoHS-Conform
Specifications
Open all

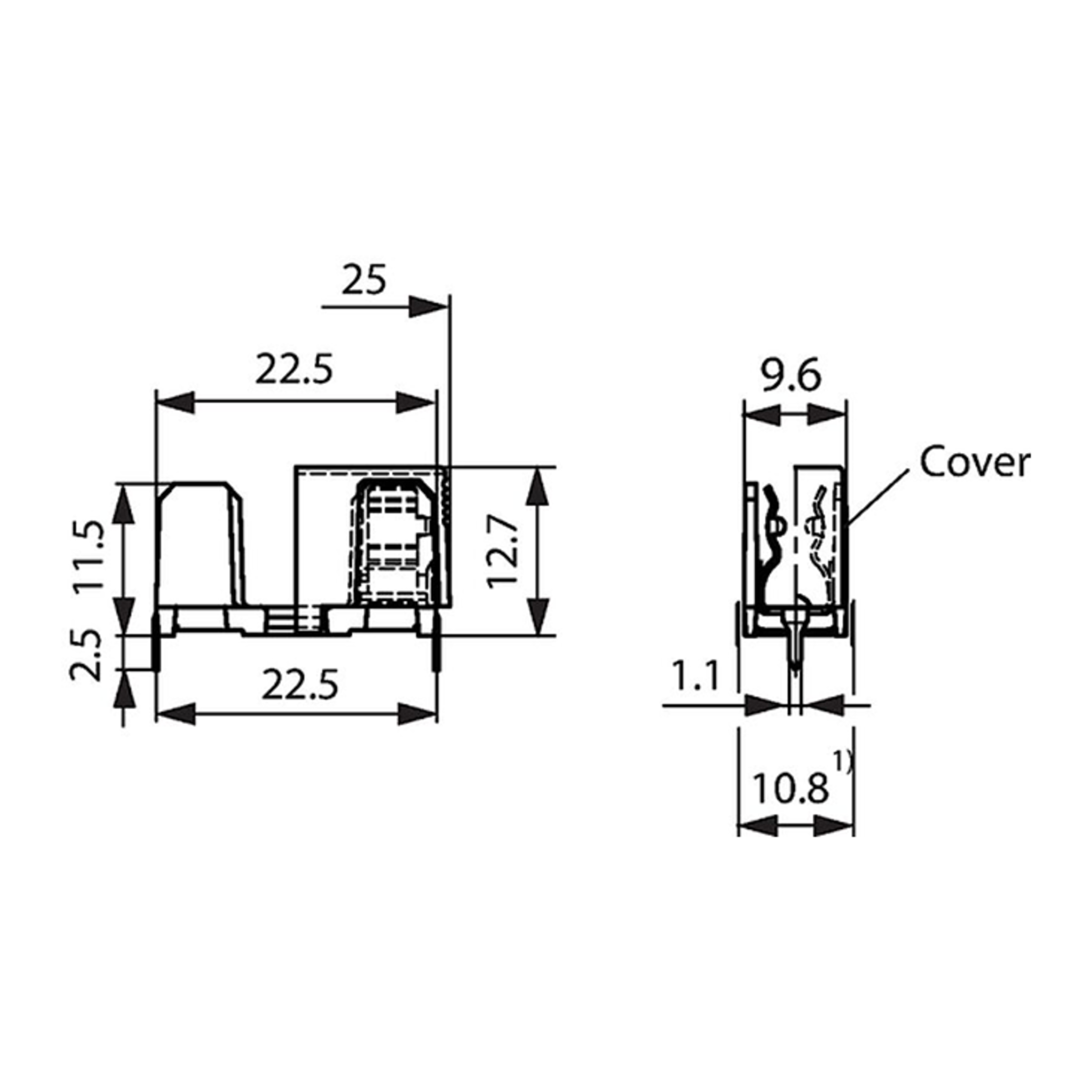

Dimensions and weights
- Dimension: Length
- 22.5 mm
- Dimension: Width
- 10.8 mm
- Dimension: Height
- 14 mm
- Weight
- 1.7 g
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
Technical features
- Rated current
- 10 A
- Dielectric strength
- 3 kV
- Rated voltage V AC
- 500 V AC
- Contact resistance, max.
- 10 mOhm
- Insulation resistance
- 10 MOhm
- Nominal power consumption
- 4 W
- Solderability
- 245 °C / 3 s
Safety/Certifications
- Approvals
- CE
- IEC
- UK CA
- UL
- VDE
- cCSA
- cULus
- Standards
- IEC 60335-1
- Insulation class
- IP20 mit Abdeckkappe
