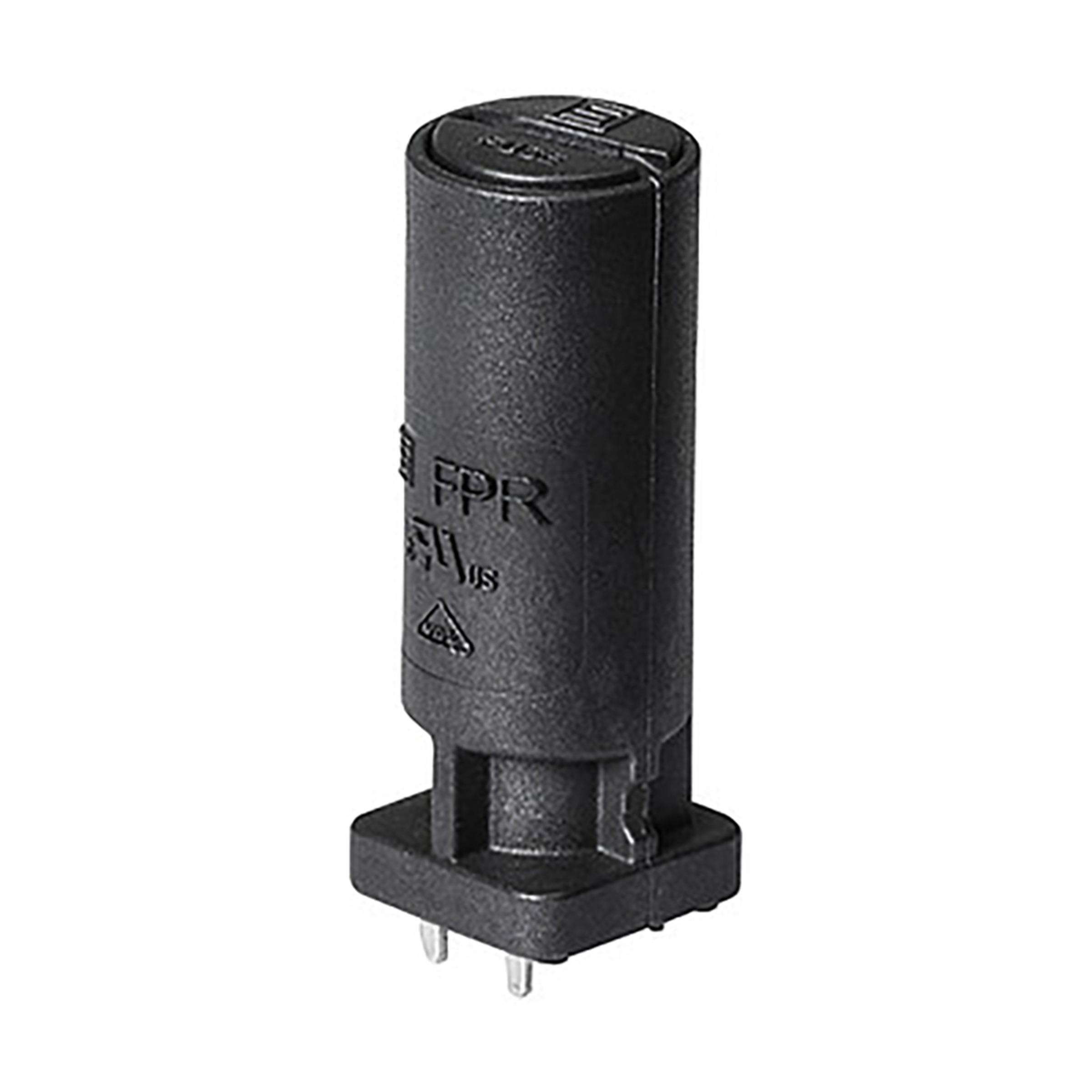

Schurter Fuse holder 5x20 250VAC For 5x20mm G-fuses 10A IP40

3-127-7003-127-700
NEW
Manufacturer Part No.
3-127-700
Schukat Part No.
3-127-700
Manufacturer
Schurter
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

200 Pcs. in stock

Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
• Here you will find suitable device fuses and automotive fuses.
Type
Fuse holder 5x20
Series
FPR
Housing
closed
Insulation class
IP40
Applications
For 5x20mm G-fuses
Rated voltage V AC
250 V AC
Rated current
10 A
Nominal power consumption
3.2 W
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Schurter
Series
  • FPR
Type
  • Fuse holder 5x20
Product group
  • E1827
Housing
  • closed
Assembly
  • Printed circuit board assembly
Applications
  • For 5x20mm G-fuses
Housing material
  • Thermoplastic (UL 94V-0)
Labelling
  • Logo, type, test mark
Colour
  • black
Material Terminal
  • Copper alloy, tin plated
Termination Style
  • Solder pins
Features

  • • Enclosed fuse holder for 5x20 mm fuses, vertical orientation
    • Slotted for screwdriver
    • Solder terminals for PCB mounting
    • Nut tightening torque (fuse holder): 0.4 Nm
    • Suitable for Class I equipment (according to IEC 61140)
    • Overvoltage category III (according to IEC 60644-1)
    • Pollution degree 3 (according to IEC 60664-1)
    • Vibration resistance according to IEC 60068-2-6, test Fc
    • Suitable for industrial applications, household appliances or medical devices.
    • Meets the requirements of IEC 60335-1 for unattended equipment. This includes the stricter glow wire requirements according to IEC 60695-2-11 or -12 & -13.

Notice

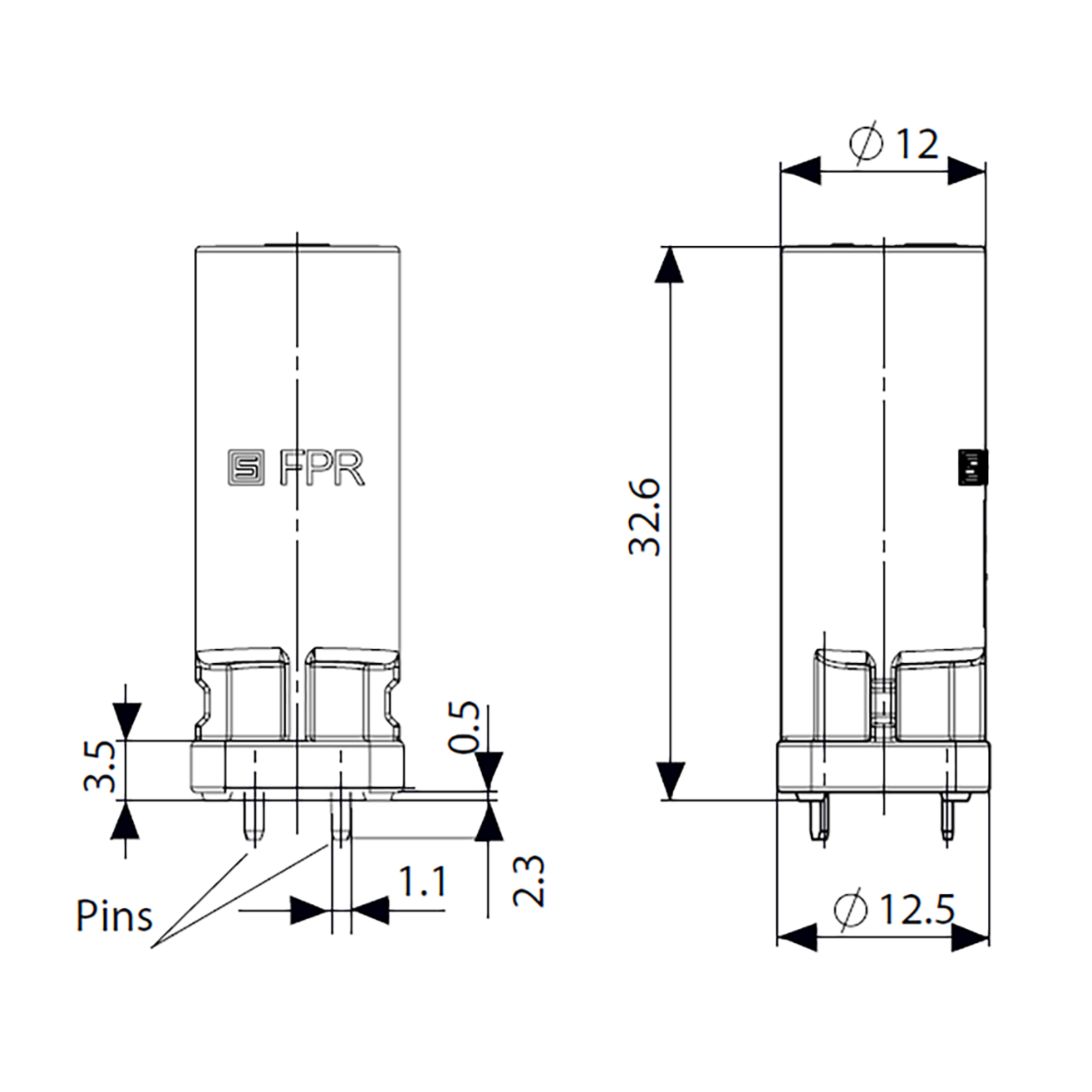

Dimensions and Weights

Dimension: Length
  • 12.5 mm
Dimension: Width
  • 12.5 mm
Dimension: Height
  • 32.6 mm
Diameter
  • 12 mm
Pin length
  • 2.3 mm
Pitch
  • 5.08 mm
Pin diameter
  • 1.1 mm
Weight
  • 7 g

Operating conditions

Operating temperature range, min.
  • -40 °C
Operating temperature range, max.
  • 85 °C
Climate category IEC
  • 40/85/21

Technical Features

Rated current
  • 10 A
Dielectric strength
  • 3 kV
Surge voltage resistance
  • 4 kV
Rated voltage V AC
  • 250 V AC
Contact resistance, max.
  • 10 mOhm
Insulation resistance
  • 20 MOhm
Nominal power consumption
  • 3.2 W
Solderability
  • 245 °C / 3 s

Mechanical Features

Drilling Dimensions
  • 1.3 mm

Safety/Certifications

Approvals
  • CE
  • IEC
  • UK CA
  • VDE
  • cCSA
  • cULus
Standards
  • IEC 60127-6, UL 4248-1, CSA C22.2 no. 4248.1, ICE/UL 62368-1, IEC 60335-1
Insulation class
  • IP40
