3-124-969

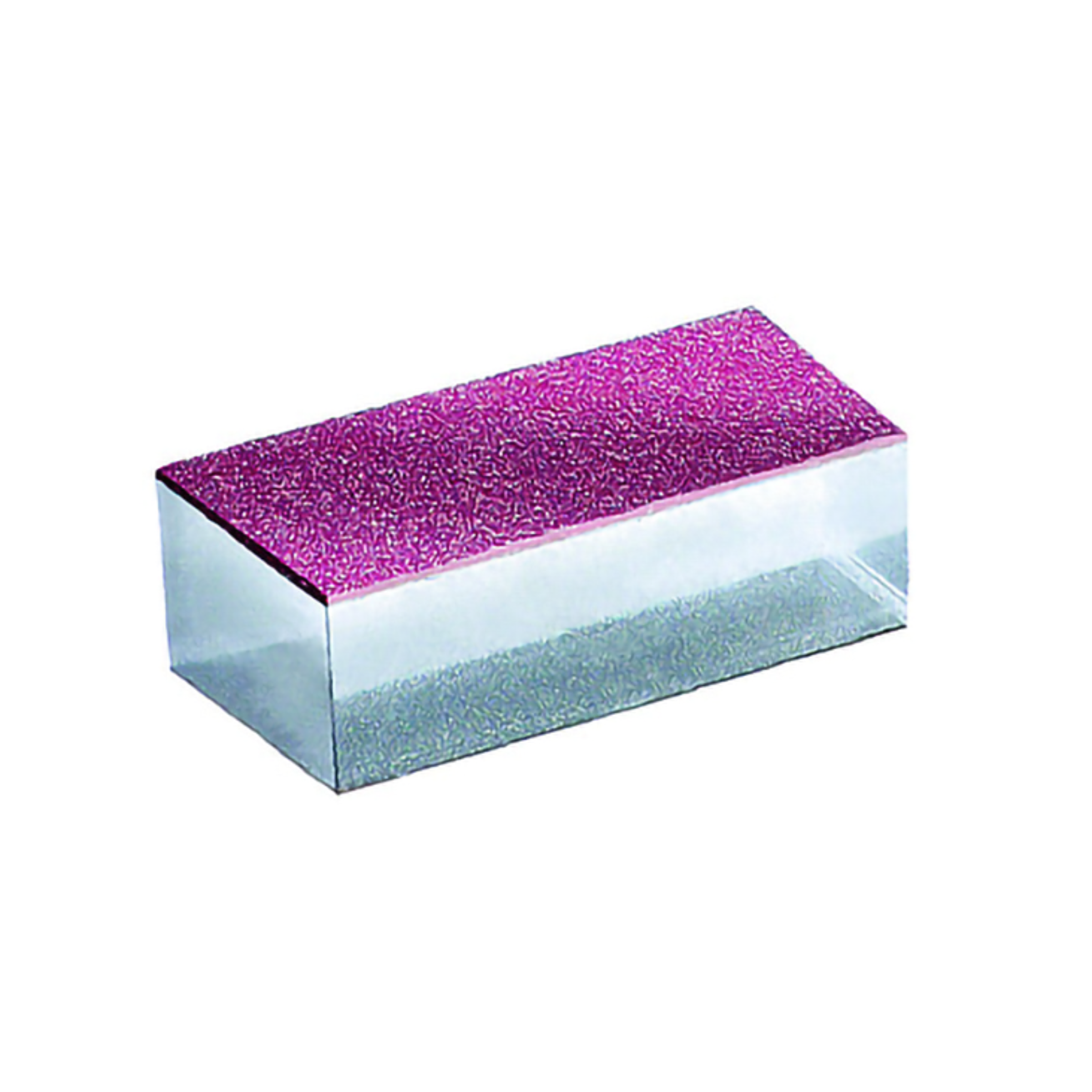

Schurter SMD fuse USL 0603 supertime-lag 50A 63VDC 0,05A 1,6x0,8mm
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 5 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 5000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5000 or multiple of 5000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- SMD fuse
- Series
- USL 0603
- Characteristic
- super time-lag
- Package/Case
- 1,6 x 0,8 mm
- Rated current
- 0.05 A
- Rated voltage V DC
- 63 V DC
- RoHS-Conform
Specifications
Open all

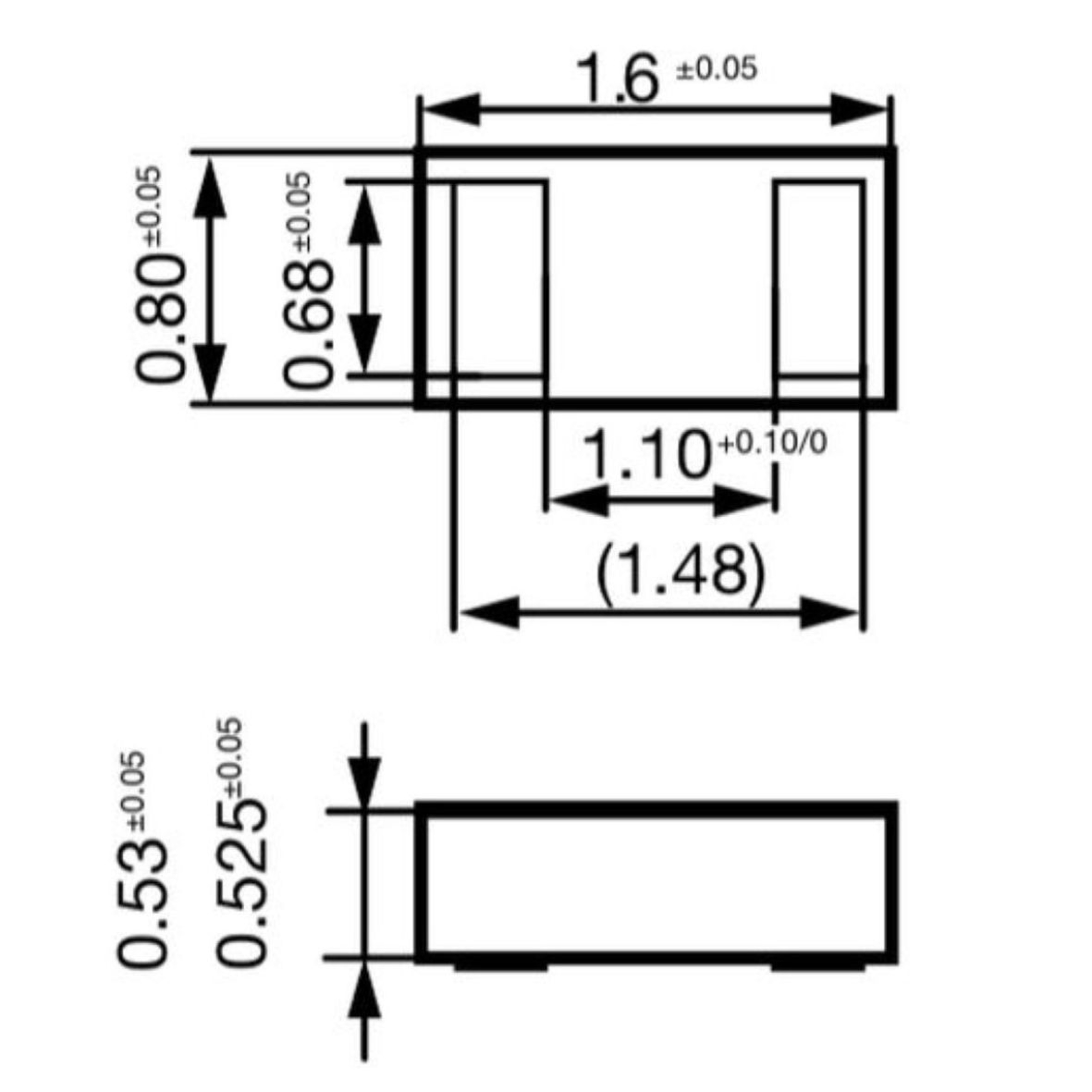

Dimensions and Weights
- Dimension: Length
- 1.6 mm
- Dimension: Width
- 0.8 mm
- Dimension: Height
- 0.53 mm
- Weight
- 0.002 g
Operating conditions
- Operating temperature range, min.
- -50 °C
- Operating temperature range, max.
- 125 °C
- Climate category IEC
- 50/150/21
Technical Features
- Rated current
- 0.05 A
- Rated breaking capacity
- 50 A
- Rated voltage V DC
- 63 V DC
- Voltage drop
- 145 mV
Safety/Certifications
- Approvals
- CE
- IEC
- UK CA
- UL
- cCSA
- cULus
- Standards
- UL 248-14, CSA22.2 No. 248.14, IEC/UL 62368-1
