3-110-013

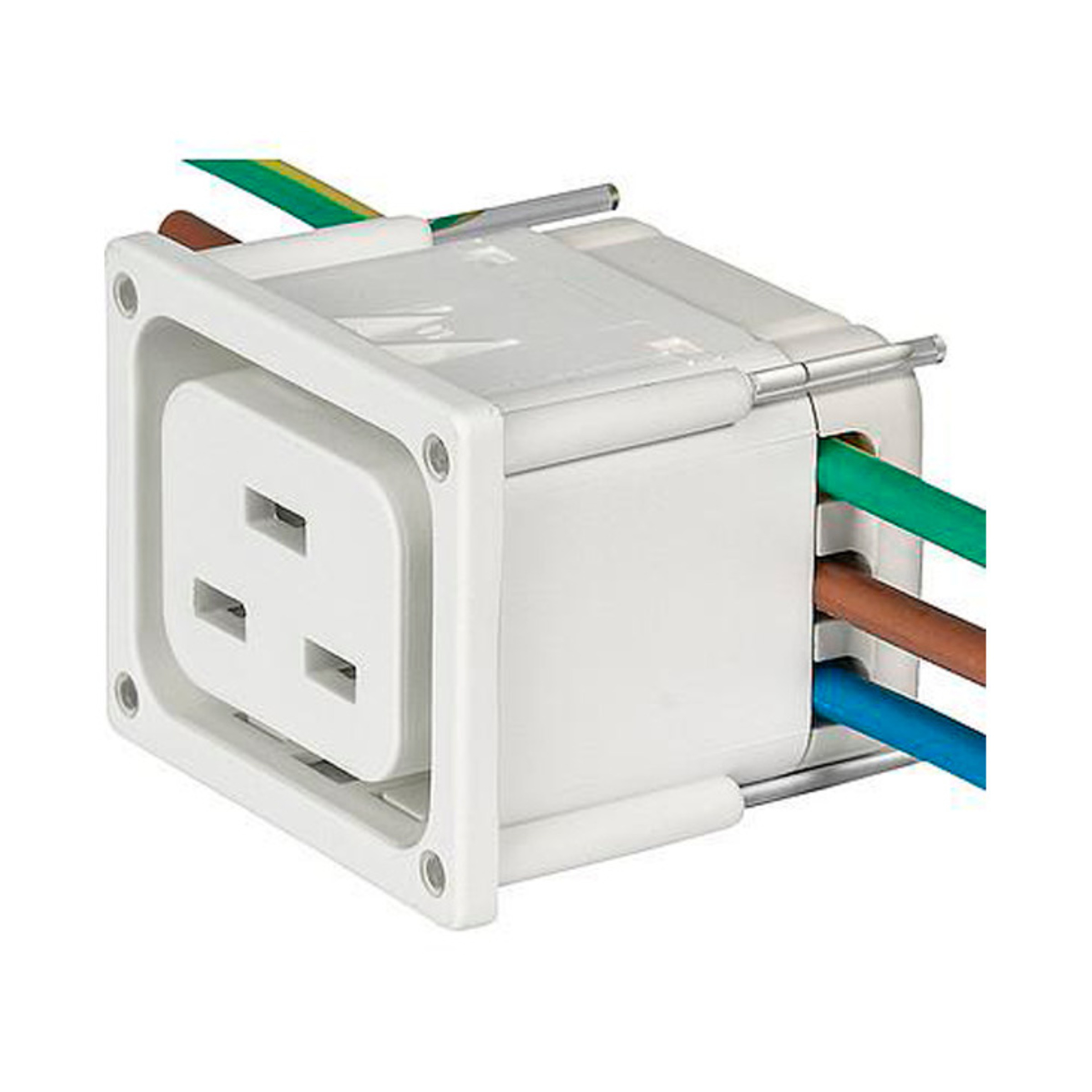

Schurter Built-in cold appliance socket 4710-5 Panel J 3 Pole IDC Thermoplast (TP) 16A 250VAC 70°C I
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 05.11.2025
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Built-in cold appliance socket
- Connector Contact
- IDC
- Series
- 4710-5
- Colour
- black
- Housing material
- Thermoplast (TP)
- Pin Temperature
- 70 °C
- Housing
- rectangular
- Specifications
- Panel
- Number of poles
- 3
- Standards
- CSA C22.2 no. 60320-1
IEC 60320-1
IEC 60320-3
UL 60320-1 - Contact Type
- J
- Fastening
- Snap-In
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- straight
- Operating Temperature Max.
- 70 °C
- Rated voltage AC
- 250 V AC
- Rated current
- 16 A
- Operating Temperature Min.
- -25 °C
- RoHS-Conform
