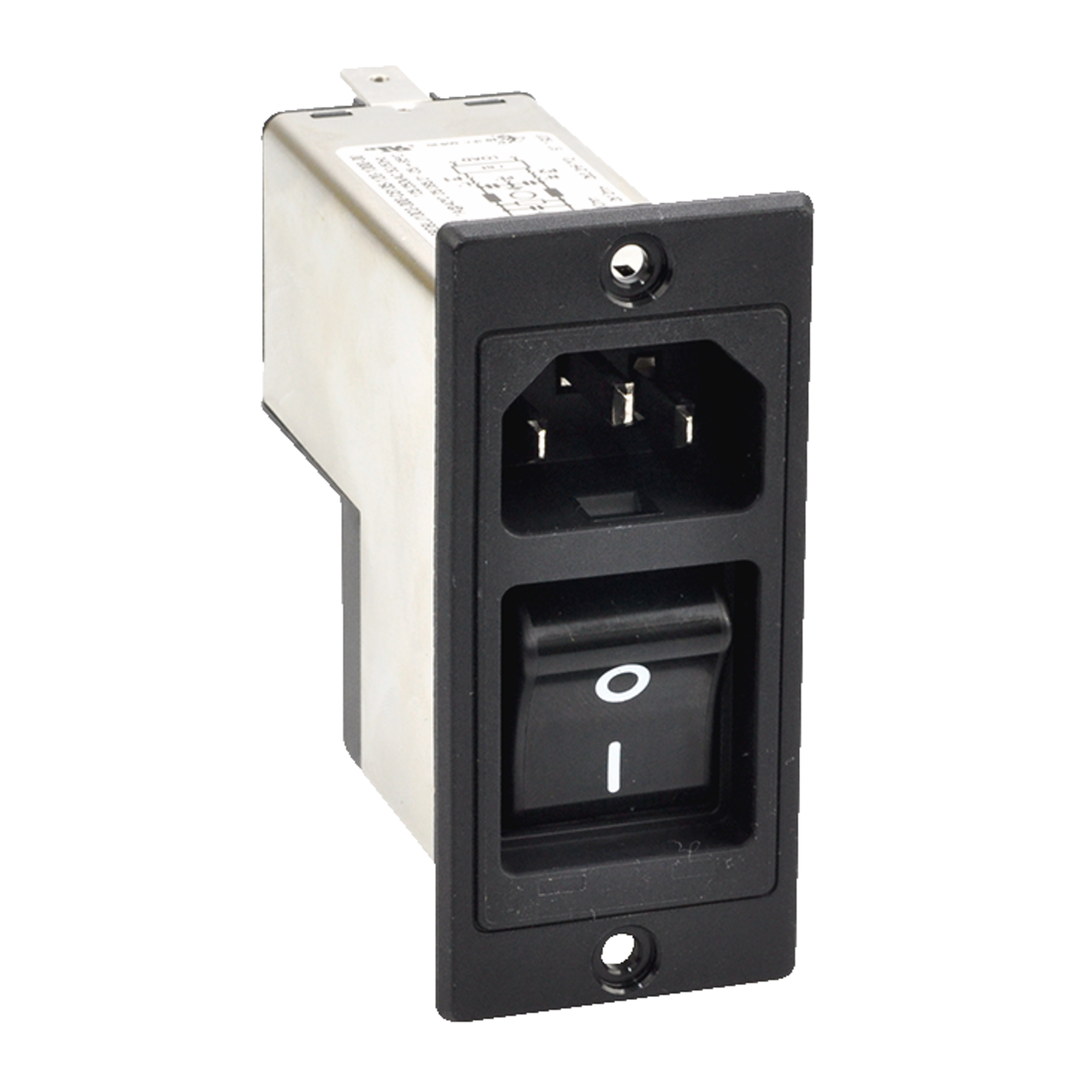

Schurter IEC filter DG12 Panel mounting 250V 8A IP40
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- DG12
- Type
- IEC filter
- Rated voltage at 50/60Hz
- 250 V
- Rated current
- 8 A
- Approvals
- CE
CQC
ENEC10
IEC
UK CA
cCSA
cRUus - Protection class front side
- IP40
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 78.3 mm
- Dimension: Width
- 35 mm
- Dimension: Height
- 76 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 60 °C
Technical features
- Rated voltage at 50/60Hz
- 250 V
- Dielectric strength, 2s, conductor/earth
- 2,7 kV DC
- Dielectric strength, 2s, conductor/conductor
- 1,7 kV DC
- Rated current
- 8 A
- Leakage current, max.
- 0,5 mA
- Inductance
- 0.6 mH
- Cx
- 220 nF
- Cy
- 2,2 nF
- Climate category
- HPF (25/060/21)
Safety/Certifications
- Approvals
- CE
- CQC
- ENEC10
- IEC
- UK CA
- cCSA
- cRUus
- Protection class front side
- IP40
- Standards
- IEC 60320-1; IEC 60939; IEC 61058-1; UL 60320-1; UL 60939-3; CSA C22.2 no. 60320-1; CSA C22.2 no. 8; UL 62368-1; IEC 62368-1
