3-104-587

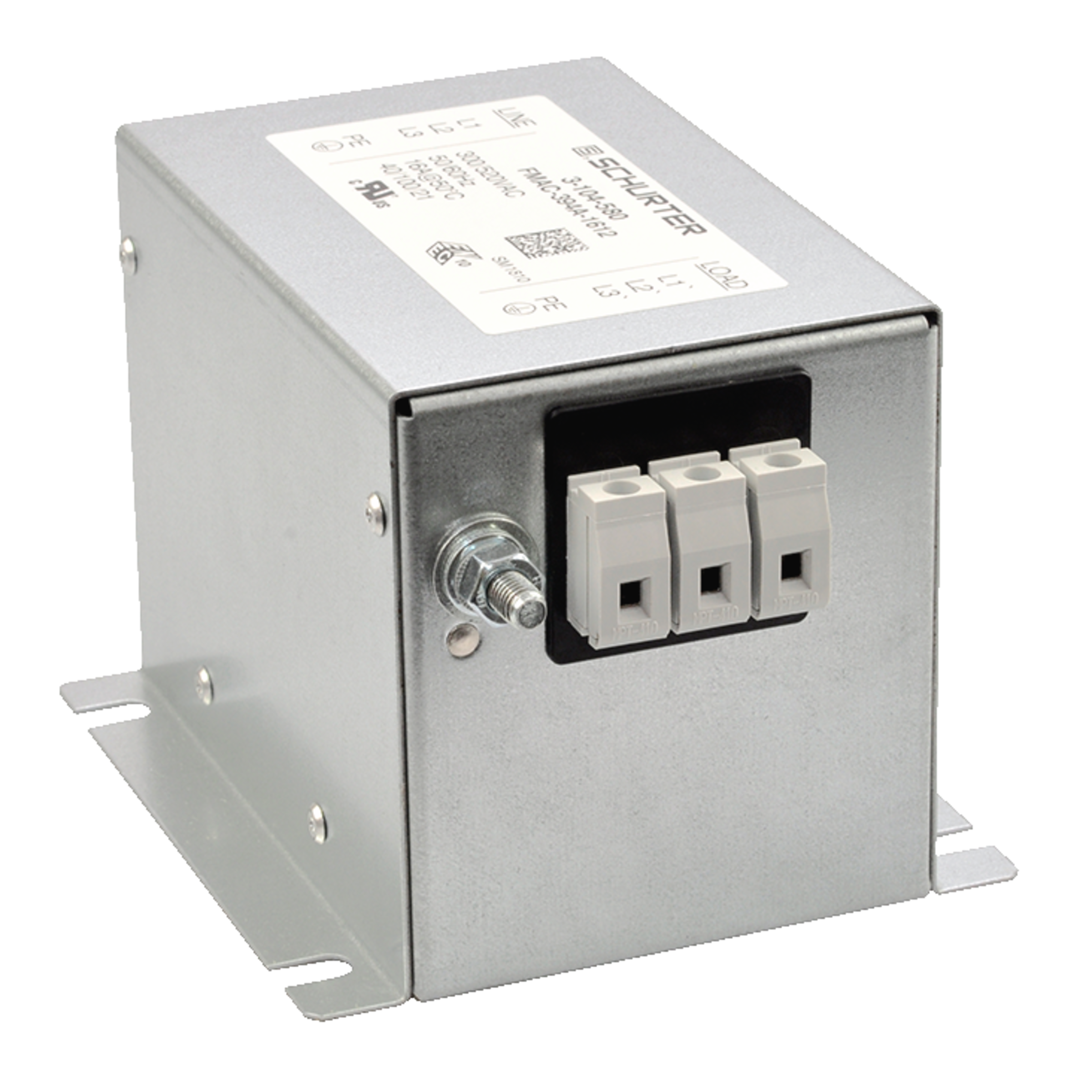

Schurter Three-phase filter FMAC NEO Chassis assembly 520V 180A IP20
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
9 Pcs. in stock
Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- FMAC NEO
- Type
- Three-phase filter
- Rated voltage at 50/60Hz
- 520 V
- Rated current
- 180 A
- Approvals
- CE
ENEC10
IEC
UK CA
cRUus - Protection class front side
- IP20
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 201 mm
- Dimension: Width
- 150 mm
- Dimension: Height
- 151 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 100 °C
Technical features
- Rated voltage at 50/60Hz
- 520 V
- Dielectric strength, 2s, conductor/earth
- 2,75 kV DC
- Dielectric strength, 2s, conductor/conductor
- 2,25 kV DC
- Rated current
- 180 A
- Leakage current, max.
- 12,2 mA
- Climate category
- 40/100/21
Safety/Certifications
- Approvals
- CE
- ENEC10
- IEC
- UK CA
- cRUus
- Protection class front side
- IP20
- Standards
- IEC 60939; UL 1283; UL 62368-1; IEC 62368-1
