3-101-786

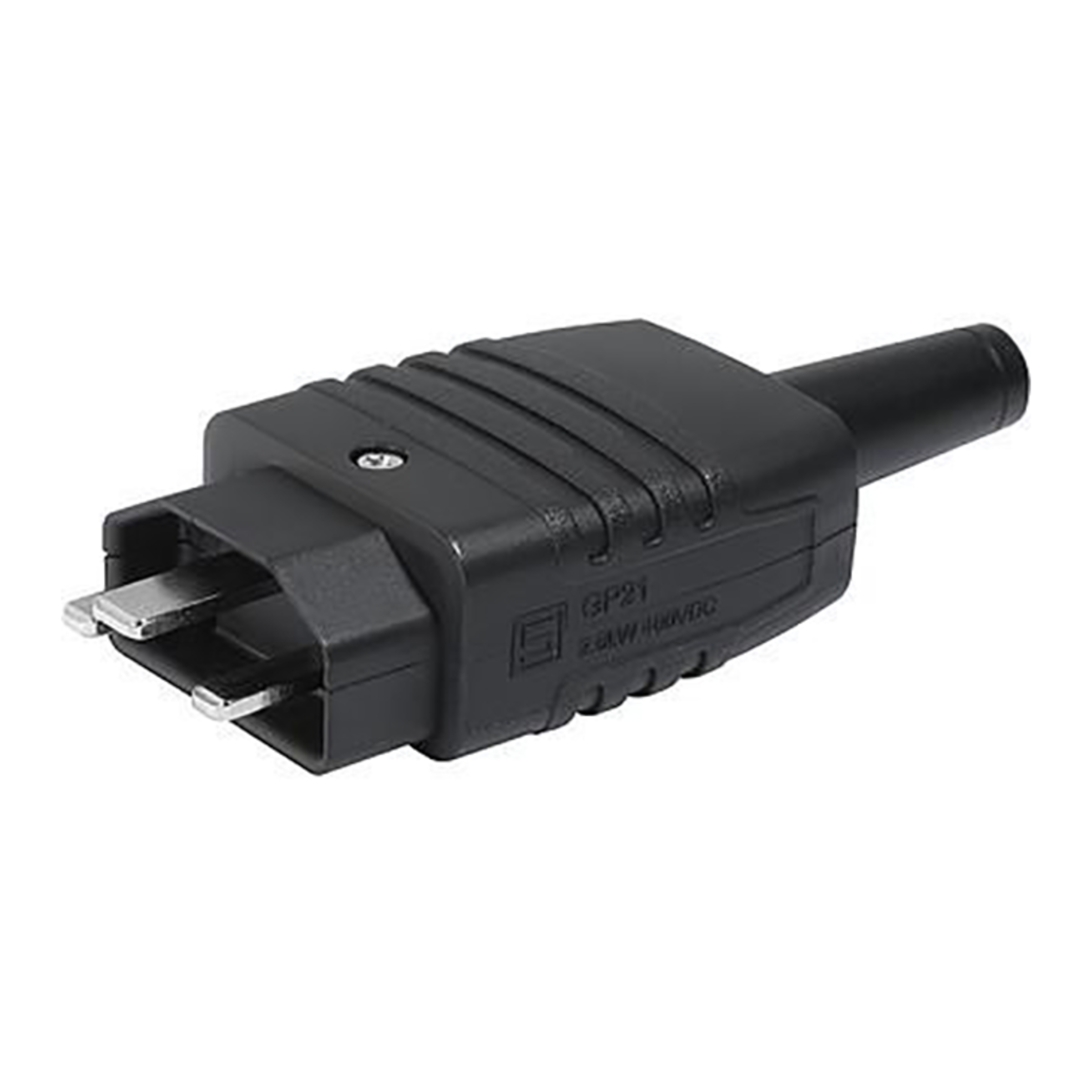

Schurter Plug GP21 Cable Standard Sheet 2 3 Pole Screw Thermoplast (TP) 8,8A 105°C I
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 30 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Plug
- Type
- Plug
- Connector Contact
- Screw
- Series
- GP21
- Colour
- black
- Housing material
- Thermoplast (TP)
- Pin Temperature
- 105 °C
- Design
- Cable
- Cable diameter, max.
- 9.2 mm
- Number of poles
- 3
- Standards
- IEC TS 62735-1
UL Subject 2695 - Contact Type
- Standard Sheet 2
- Fastening
- Screw mounting
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- straight
- Operating Temperature Max.
- 105 °C
- Rated current
- 8.8 A
- Rated voltage DC
- 400 V DC
- Operating Temperature Min.
- -5 °C
- RoHS-Conform
Specifications
Open all

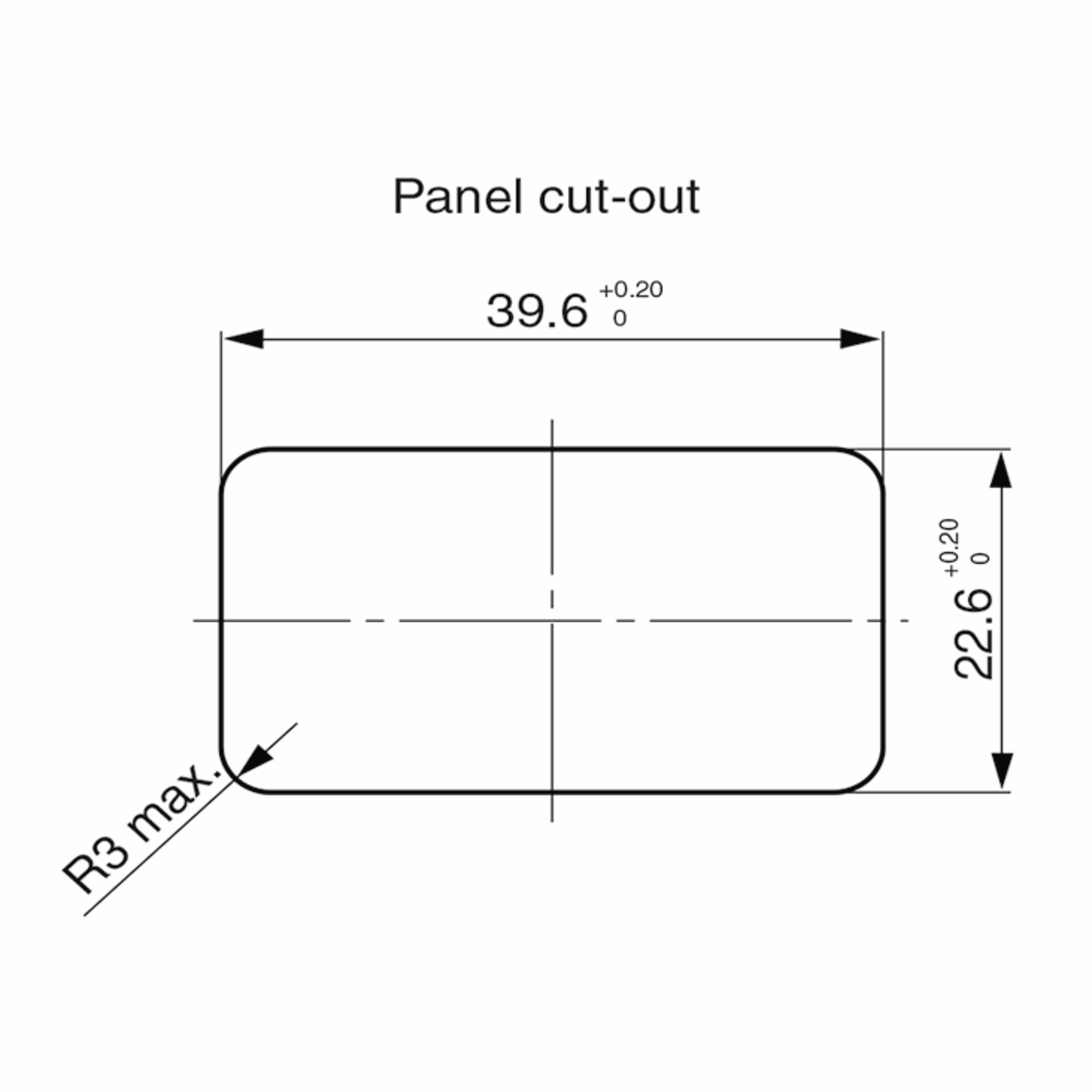

Dimensions and Weights
- Dimension: Length
- 111.7 mm
- Dimension: Width
- 42.2 mm
- Dimension: Height
- 25.6 mm
- Cable diameter, min.
- 6.4 mm
- Cable diameter, max.
- 9.2 mm
- Conductor cross-section (AWG), min.
- 18 AWG
- Conductor cross-section, min.
- 0.75 mm²
- Conductor cross-section (AWG), max.
- 16 AWG
- Conductor cross-section, max.
- 1.5 mm²
Operating conditions
- Operating Temperature Min.
- -5 °C
- Operating Temperature Max.
- 105 °C
- Pin Temperature
- 105 °C
Technical Features
- Rated current
- 8.8 A
- Rated voltage DC
- 400 V DC
- Rated power
- 2.6 kW
Mechanical Features
- Insertion force per contact, min.
- 105 N
- Housing material
- Thermoplast (TP)
Safety/Certifications
- Approvals
- UL
- VDE
- Standards
- IEC TS 62735-1
- UL Subject 2695
- Class of Inflammability
- UL 94 V-0
- Protection class
- I
