3-101-785
Schurter Panel Plastic 3pol.
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
5 Pcs.
5 Pcs.
Planned delivery time
Ø 15 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- GS21
- Housing
- rectangular
- Pin Temperature
- 105 °C
- Colour
- black
- Number of poles
- 3
- Dimension: Length
- 25 mm
- Package/Case
- Plastic
- Rated current
- 8.8 A
- Dimension: Width
- 42 mm
- Rated voltage DC
- 400 V DC
- Dimension: Height
- 41.85 mm
- Operating Temperature Min.
- -5 °C
- Standards
- IEC TS 62735-1
UL Subject 2695 - Approvals
- UL
VDE - Operating Temperature Max.
- 105 °C
- RoHS-Conform
Specifications
Open all

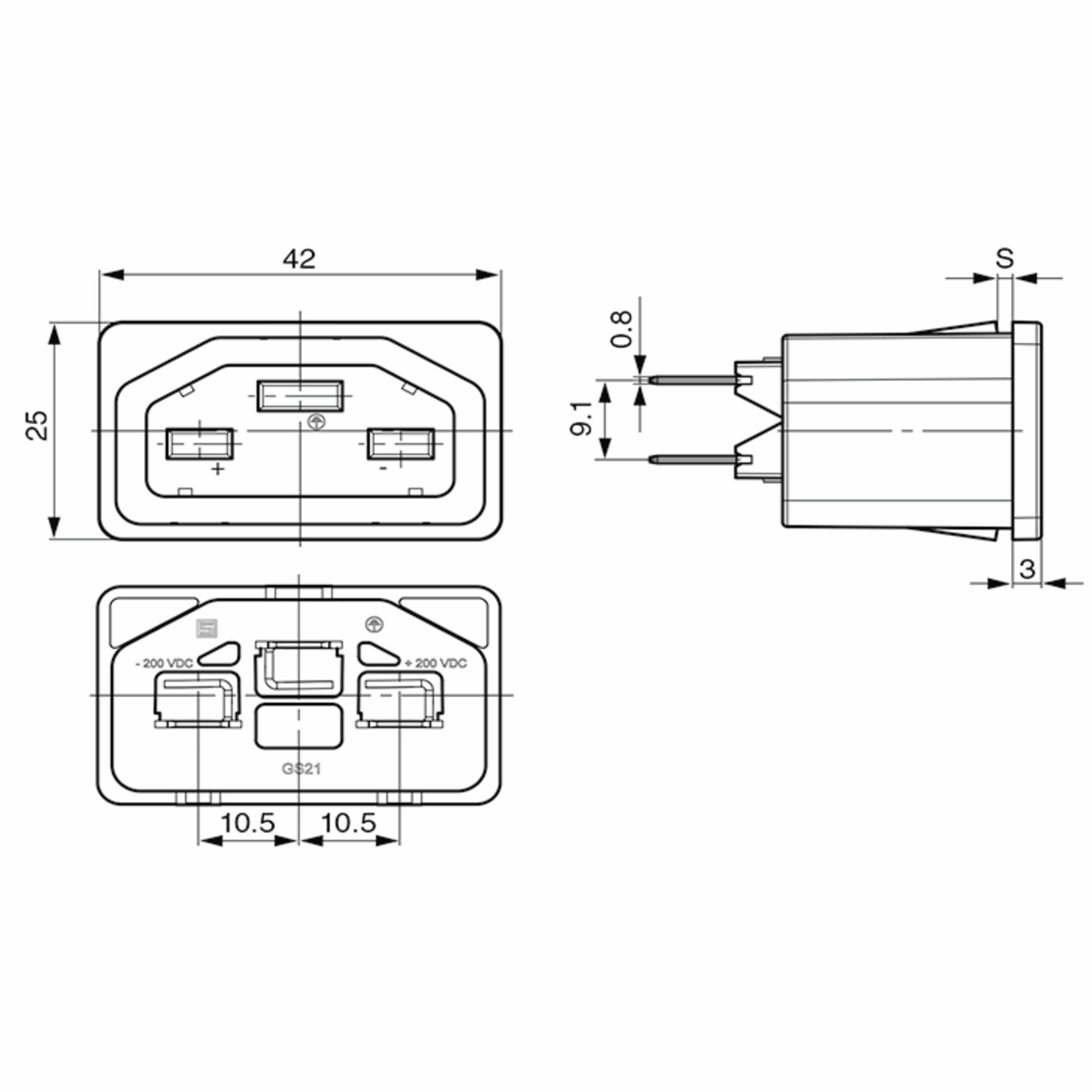

Dimensions and weights
- Dimension: Length
- 25 mm
- Dimension: Width
- 42 mm
- Dimension: Height
- 41.85 mm
- Board Strength max.
- 1.5 mm
Operating conditions
- Operating Temperature Min.
- -5 °C
- Operating Temperature Max.
- 105 °C
- Pin Temperature
- 105 °C
Technical features
- Rated current
- 8.8 A
- Rated voltage DC
- 400 V DC
- Rated power
- 2.6 kW

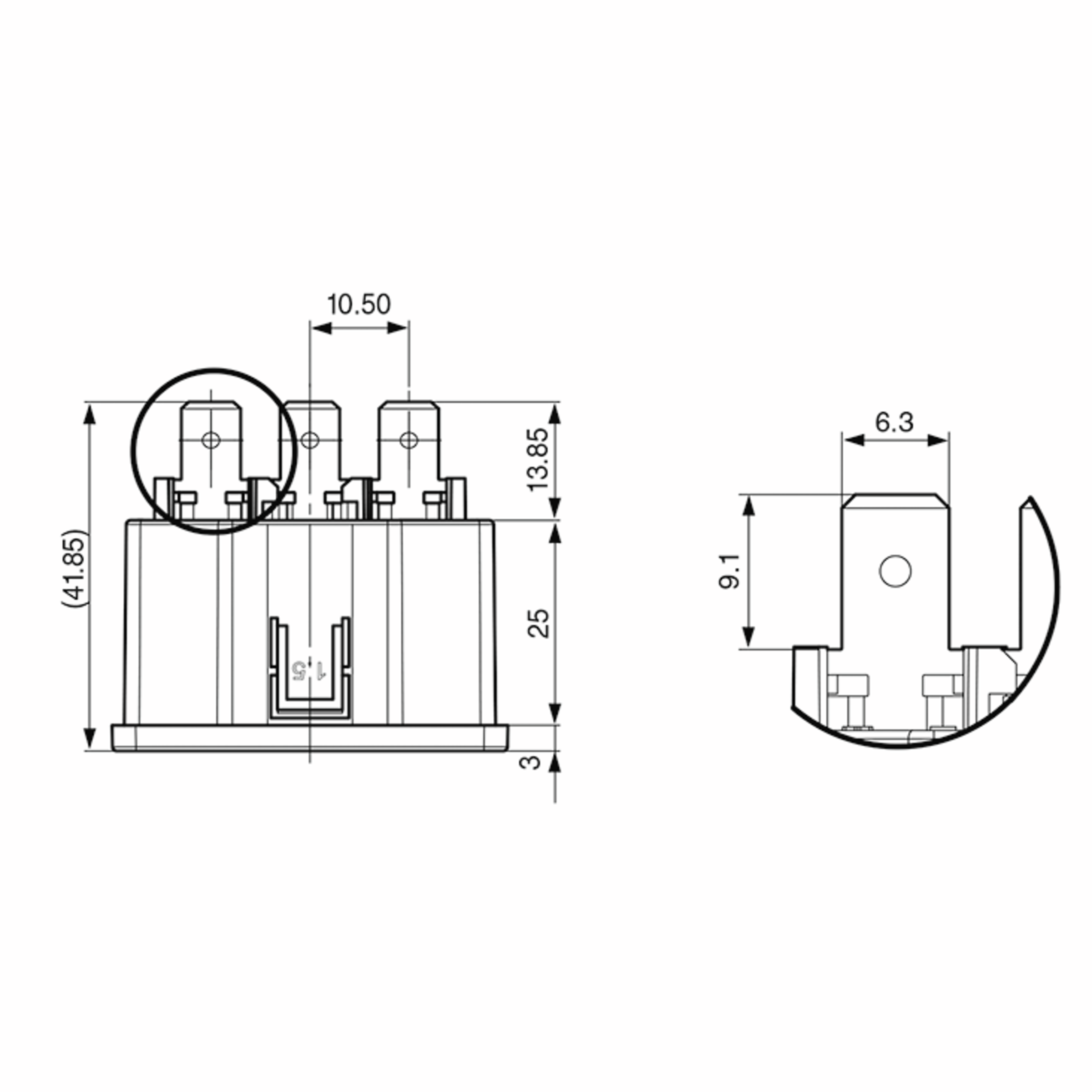

Mechanical features
- Faston terminal
- 6.3 mm
- Insertion force per contact, min.
- 105 N
Safety/Certifications
- Approvals
- UL
- VDE
- Standards
- IEC TS 62735-1
- UL Subject 2695
- Class of Inflammability
- UL 94 V-0
- Protection class
- I
- IP Schutzklasse Frontseitig
- IP20
