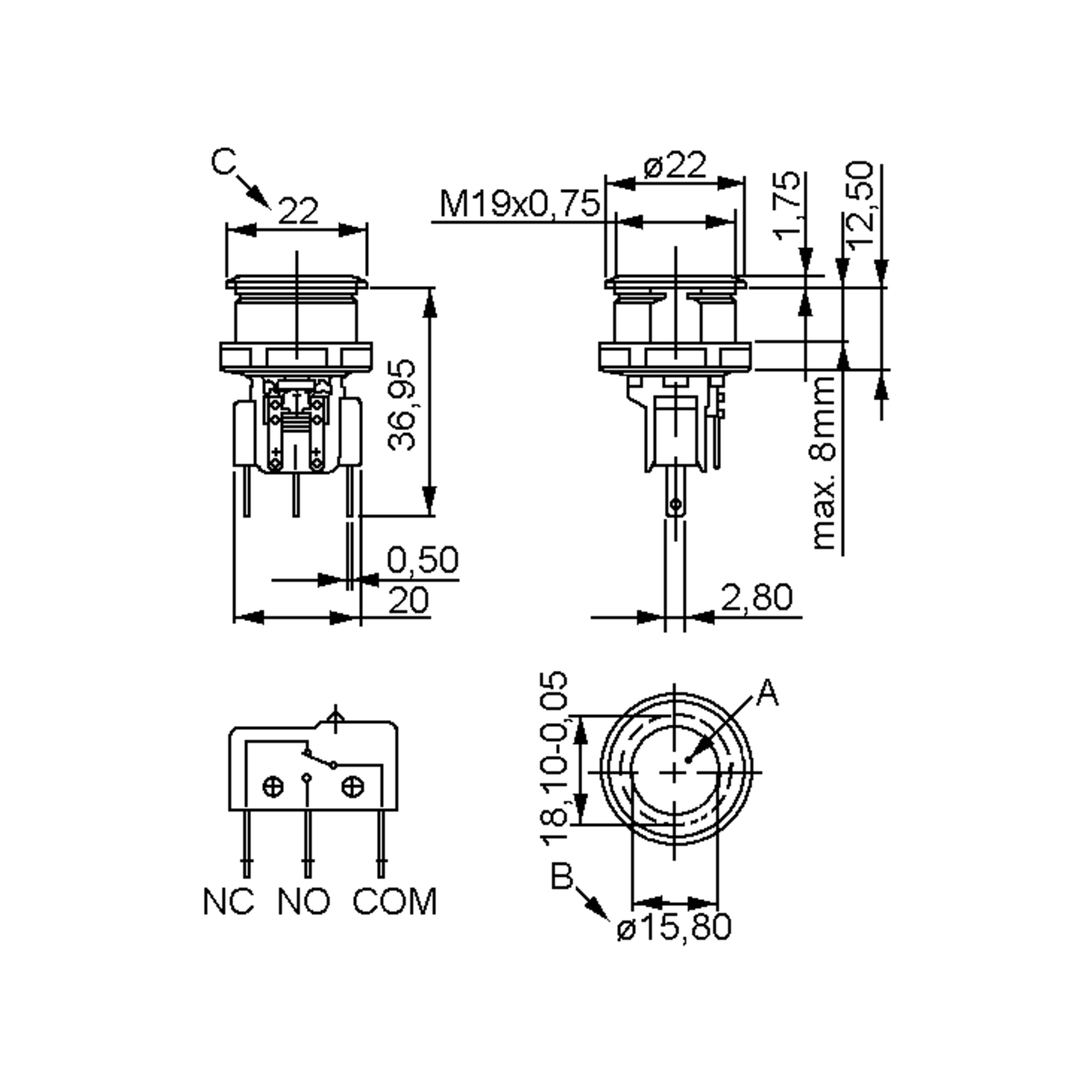

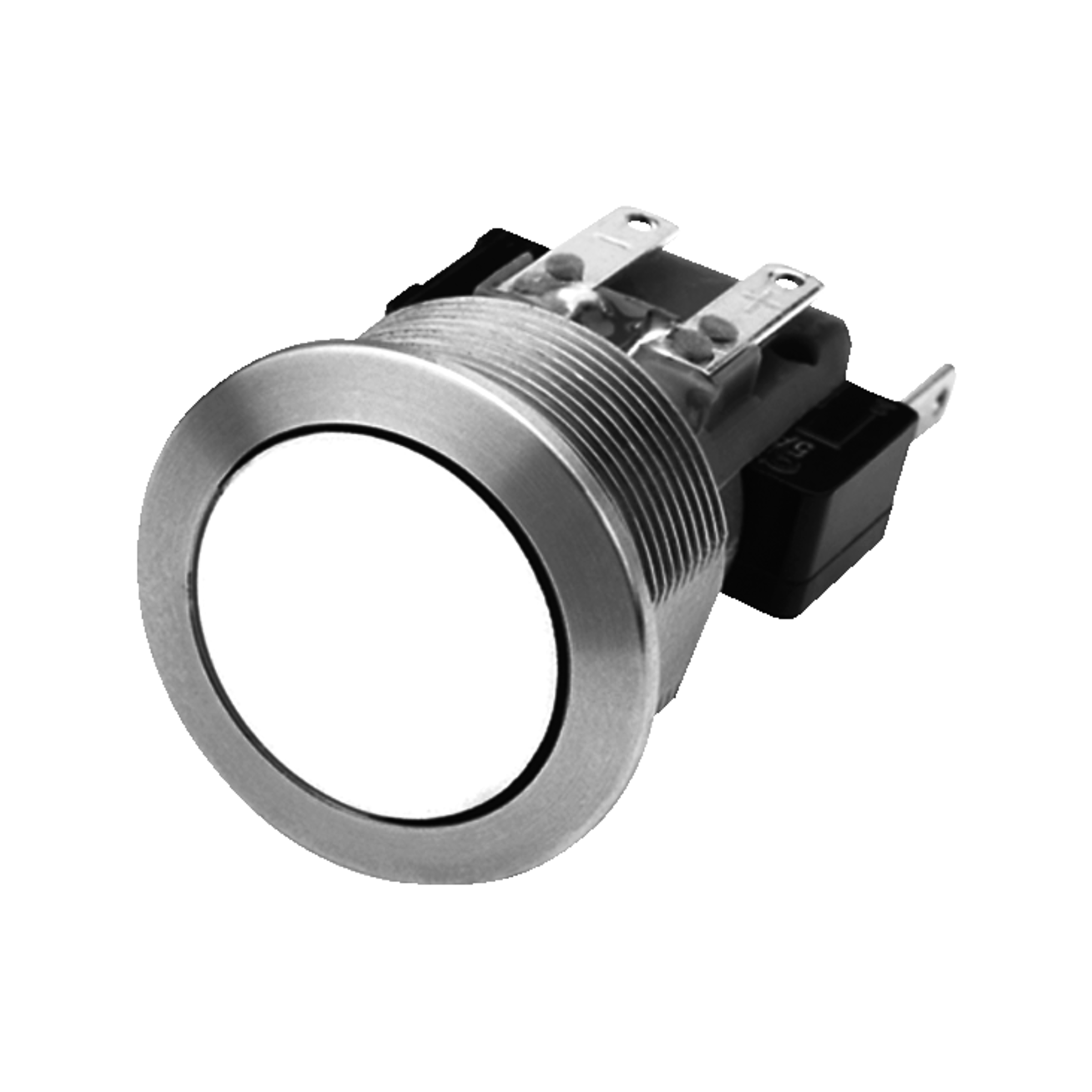

1241.7026.1121000

Schurter Pushbutton switch MSM CS 19 1xCO Push-in connector silver 250VAC 3A 4,5N Surface area illuminated red

Manufacturer Part No.
1241.7026.1121000
Schukat Part No.
MSMCS19-RT-3A
Manufacturer
Schurter
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
10 Pcs.
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Pushbutton switch
Series
MSM CS 19
Body colour
silver
contacts
1xCO
Type of actuator
Push button
Function
1xCO
Actuator colour
red
Diameter
19 mm
Number of poles
1
illumination
illuminated
Switching current, max.
3 A
Panel cut out
Ø19,1mm
Actuating force, max.
4,5 N
Operating temperature range, min.
-25 °C
Operating temperature range, max.
85 °C
Protection class
IP40
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Schurter
Series
  • MSM CS 19
Product group
  • E3126 Schurter Push Button Momentary Switches MSMCS
Type
  • Pushbutton switch
contacts
  • 1xCO
Function
  • 1xCO
Body colour
  • silver
Type of actuator
  • Push button
Actuator colour
  • red
illumination
  • illuminated
Type of lighting
  • Surface area
Lighting Colour
  • red
Features

  • - High-quality Stainless steel housing
    - Highly durable ceramic actuator with homogeneous illumination
    - Vandal-proof according to IP69K
    - For use in harsh environment
    - High-quality design
    - Reliable tactile feedback of input

Dimensions and weights

Diameter
  • 19 mm
Panel cut out
  • Ø19,1mm

Operating conditions

Operating temperature range, min.
  • -25 °C
Operating temperature range, max.
  • 85 °C
Minimum Storage Temperature
  • -25 °C
Maximum Storage Temperature
  • 85 °C

Electrical features

Performance
  • 1.25 W

Technical features

Switching voltage
  • 250 V AC
LED supply voltage
  • 24 V DC
Mechanical service life
  • 15 x 10^5 Betätigungen
Switching current, max.
  • 3 A
Contact resistance
  • 30 mOhm
Insulation resistance, min.
  • 100 MOhm
Bounce time
  • < 5 ms
Material: Body
  • Stainless steel
Material: Actuator
  • Ceramics
Material: Terminals
  • silver, plated

Mechanical properties

Thread
  • M19 x 0,75
Connection
  • Push-in connector
Operating path
  • 1 mm
Actuating force, max.
  • 4,5 N
Number of poles
  • 1

Safety/Certifications

Protection class
  • IP40
