1241.6621.1180000

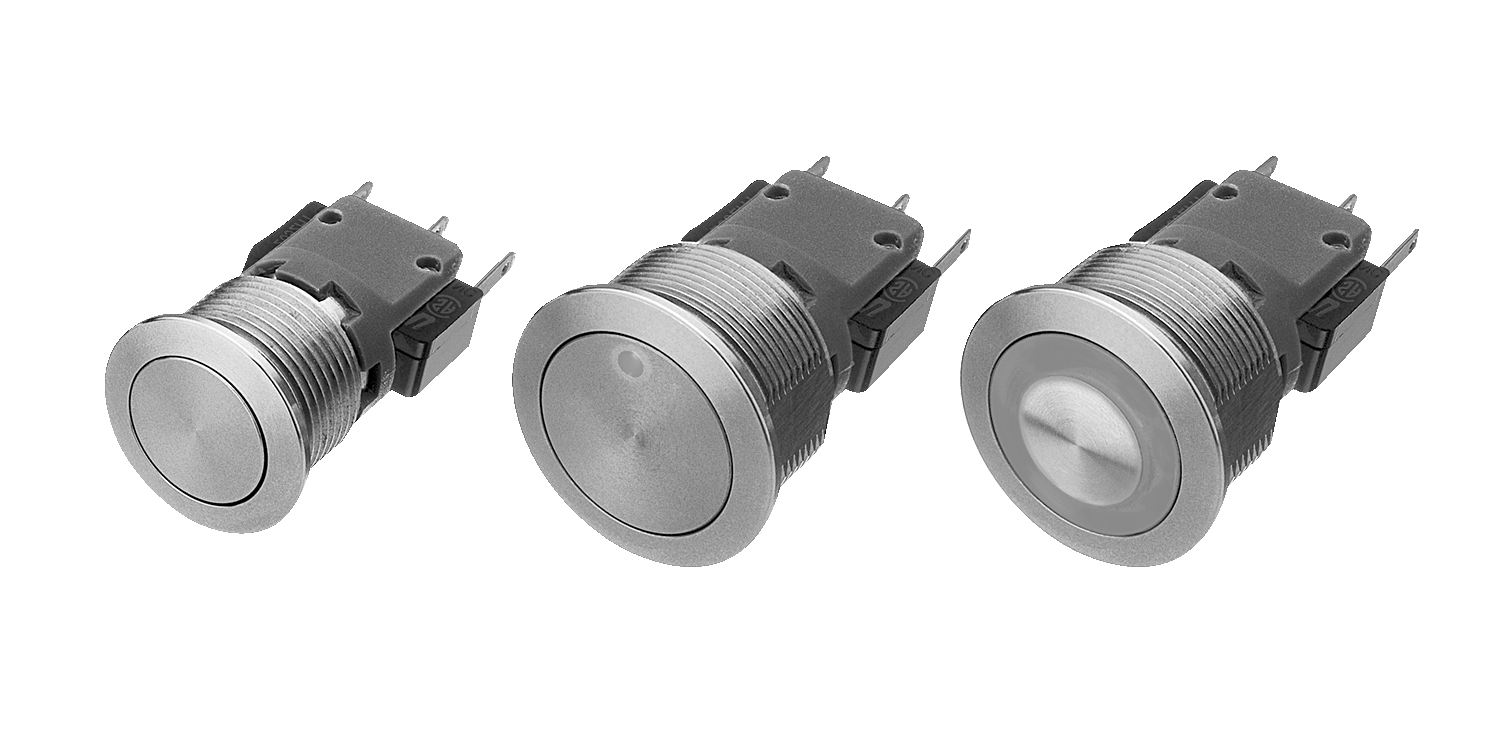

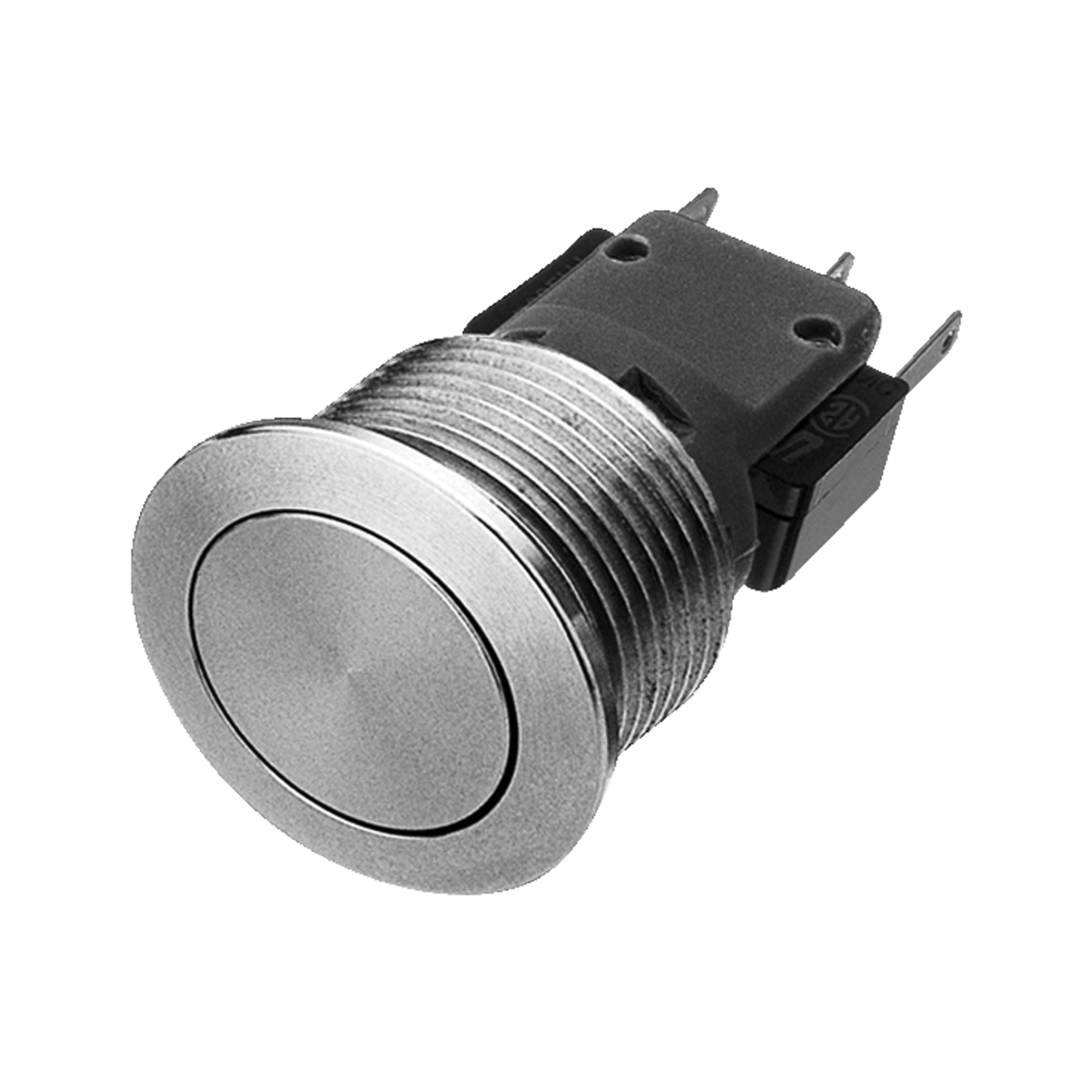

Schurter Pushbutton switch MSM 1xCO Push-in connector silver 250VAC 3A 3,7N unlit
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 14.03.2024
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Pushbutton switch
- Series
- MSM
- Body colour
- silver
- contacts
- 1xCO
- Type of actuator
- Push button
- Function
- 1xCO
- Actuator colour
- silver
- Diameter
- 19 mm
- Number of poles
- 1
- illumination
- unlit
- Switching current, max.
- 3 A
- Panel cut out
- Ø19,1mm
- Actuating force, max.
- 3,7 N
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 85 °C
- Protection class
- IP67
- RoHS-Conform
Specifications
Open all

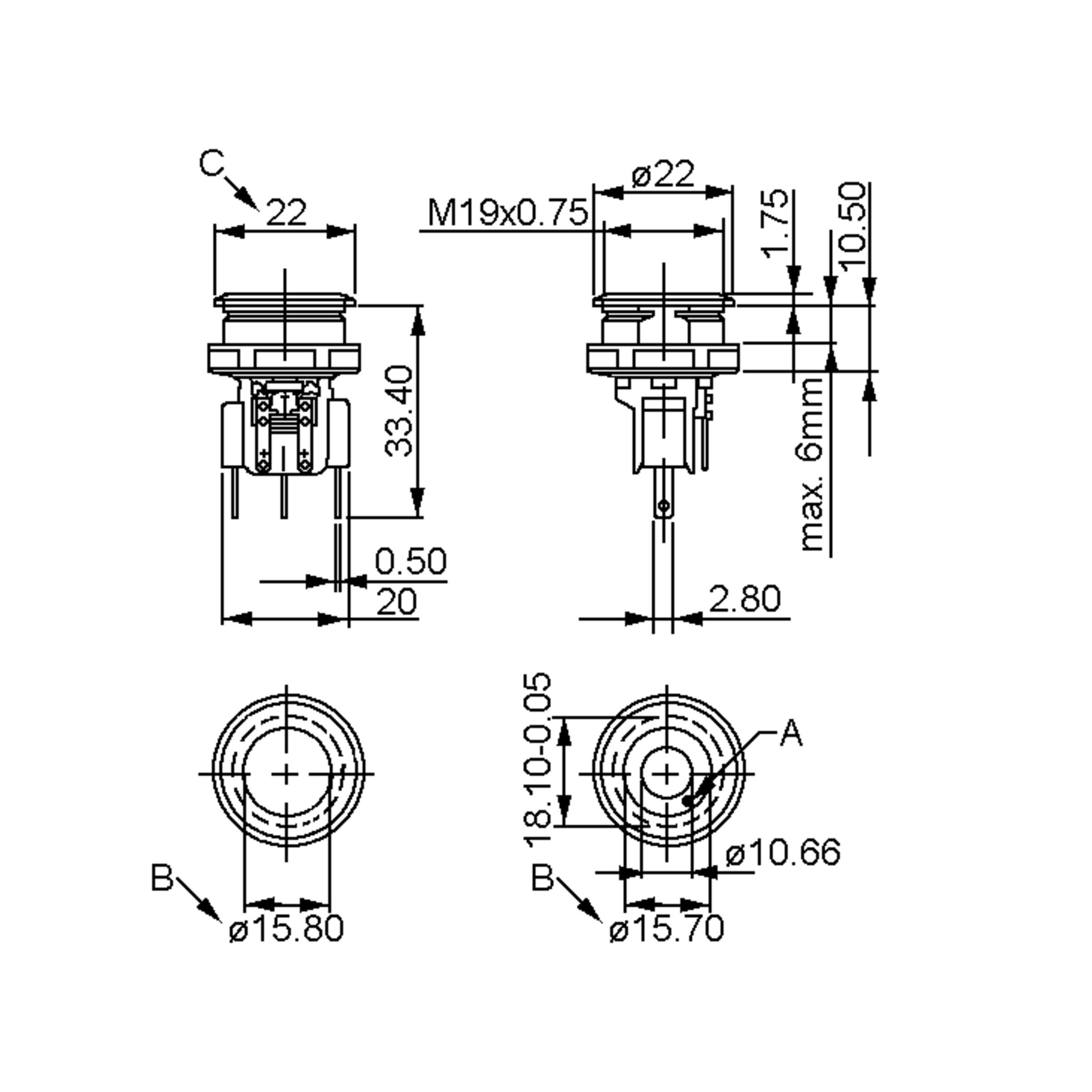

Dimensions and weights
- Diameter
- 19 mm
- Panel cut out
- Ø19,1mm
Operating conditions
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 85 °C
- Minimum Storage Temperature
- -25 °C
- Maximum Storage Temperature
- 85 °C
Electrical features
- Performance
- 1.25 W
Technical features
- Switching voltage
- 250 V AC
- Mechanical service life
- 15 x 10^5 Betätigungen
- Switching current, max.
- 3 A
- Contact resistance
- 30 mOhm
- Bounce time
- < 5 ms
- Material: Body
- Stainless steel
- Material: Actuator
- Stainless steel
- Material: Terminals
- silver, plated
Mechanical properties
- Thread
- M19 x 0,75
- Connection
- Push-in connector
- Operating path
- 0.8 mm
- Actuating force, max.
- 3,7 N
- Number of poles
- 1
Safety/Certifications
- Protection class
- IP67
