1241.3258

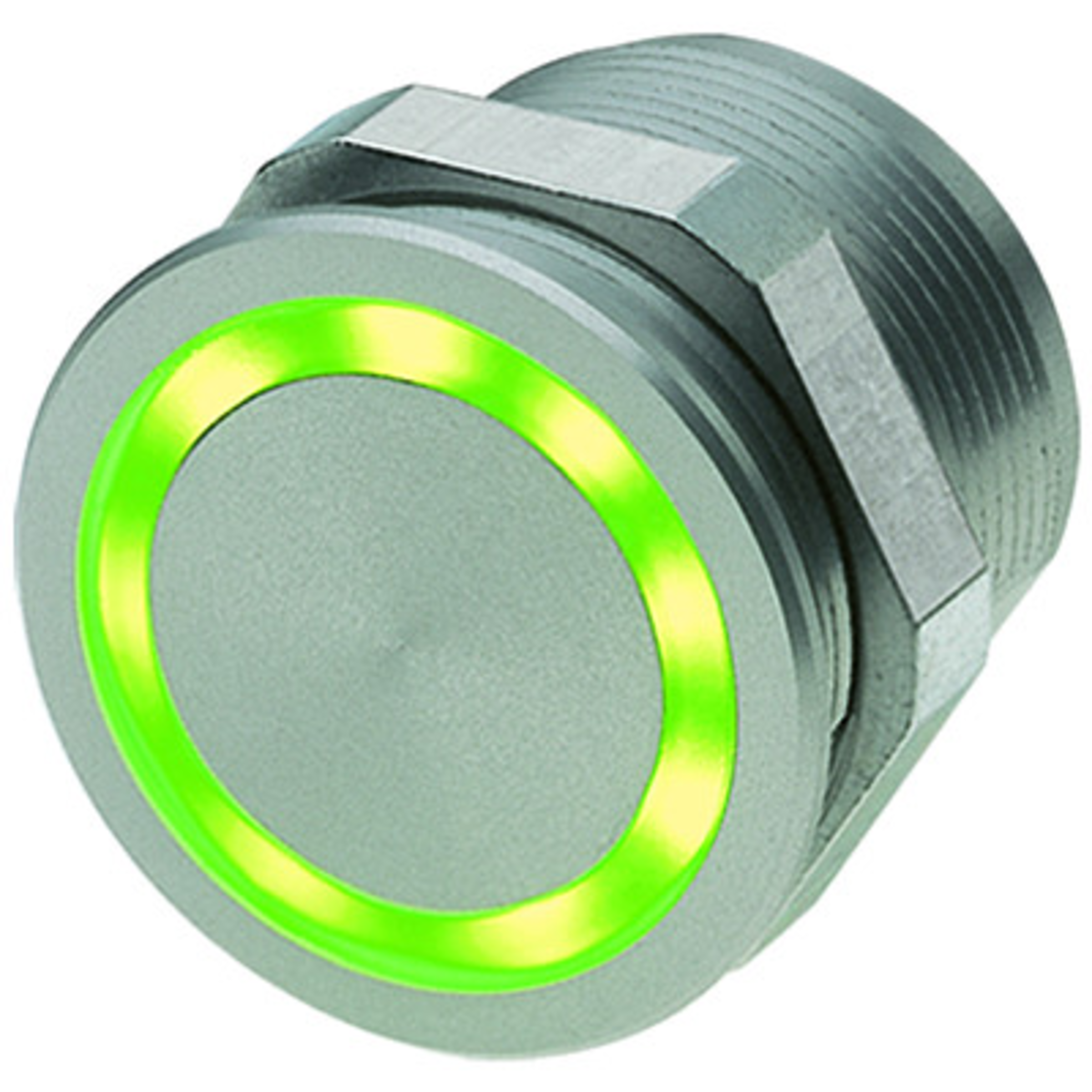

Schurter PSE NO 22 Push Button Switches 1xNO Strand 0,1A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1 Pcs. in stock
Planned delivery time
Ø 5 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Push Button Switches
- Series
- PSE NO 22
- Body colour
- silver
- contacts
- 1xNO
- Type of actuator
- Push button
- Actuator colour
- silver
- Diameter
- 22 mm
- Number of poles
- 1
- illumination
- true
- Switching current, max.
- 0.1 A
- Panel cut out
- Ø22,3mm
- Actuating force, max.
- 3 N
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
- Protection class
- IP69K
- RoHS-Conform
Specifications
Open all

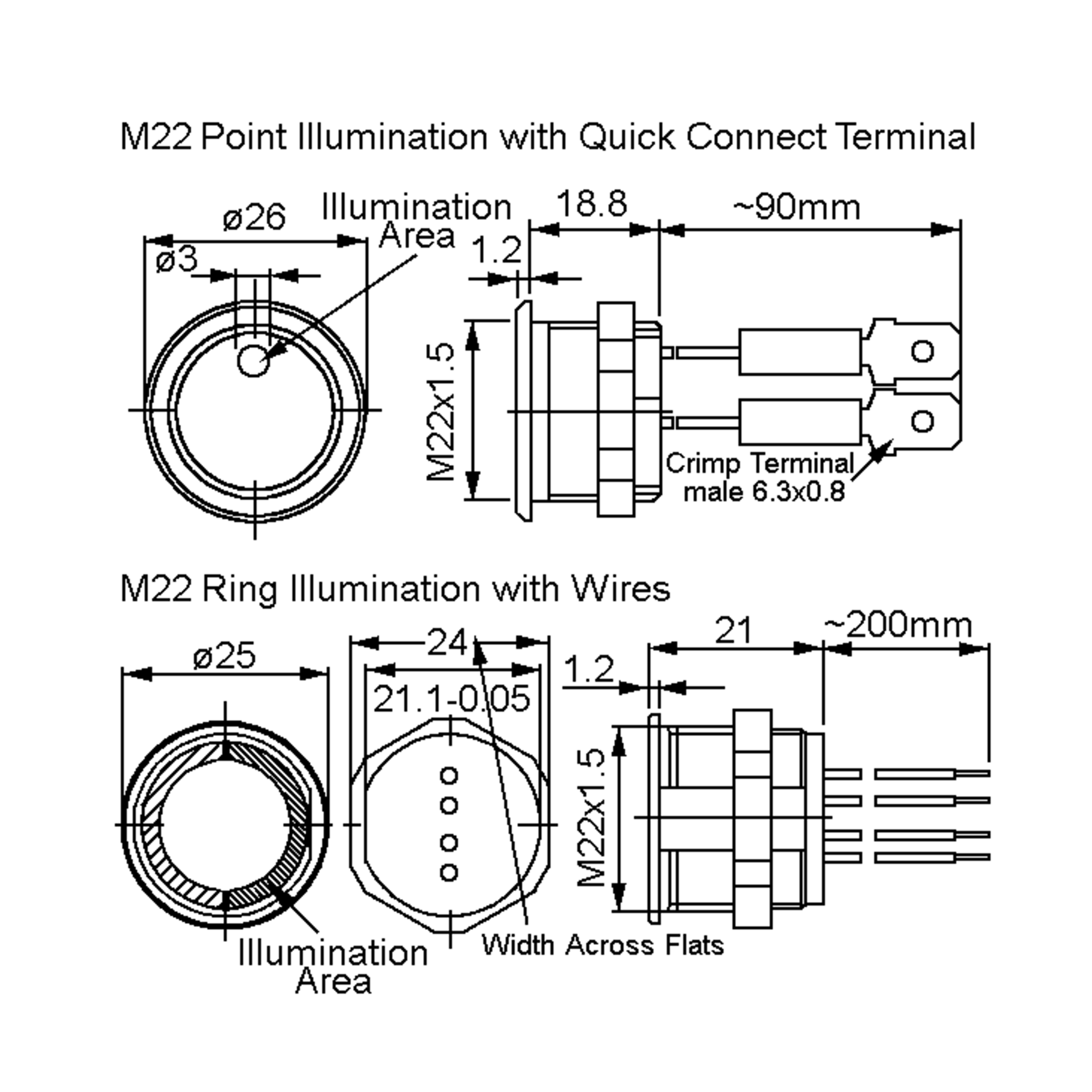

Dimensions and weights
- Diameter
- 22 mm
- Panel cut out
- Ø22,3mm
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
- Minimum Storage Temperature
- -40 °C
- Maximum Storage Temperature
- 85 °C
Electrical features
- Performance
- 1 W
Technical features
- Switching voltage
- 42 V AC
- LED supply voltage
- 24 V DC
- Service life, electrical
- 20 x 10^6 Betätigungen
- Switching current, max.
- 0.1 A
- Contact resistance
- 20 mOhm
- Material: Body
- Aluminum, anodized
- Material: Terminals
- silver, plated
Mechanical properties
- Thread
- M22 x 1,5
- Connection
- Strand
- Operating path
- 0.002 mm
- Actuating force, max.
- 3 N
- Number of poles
- 1
Safety/Certifications
- Protection class
- IP69K
