0090.1030

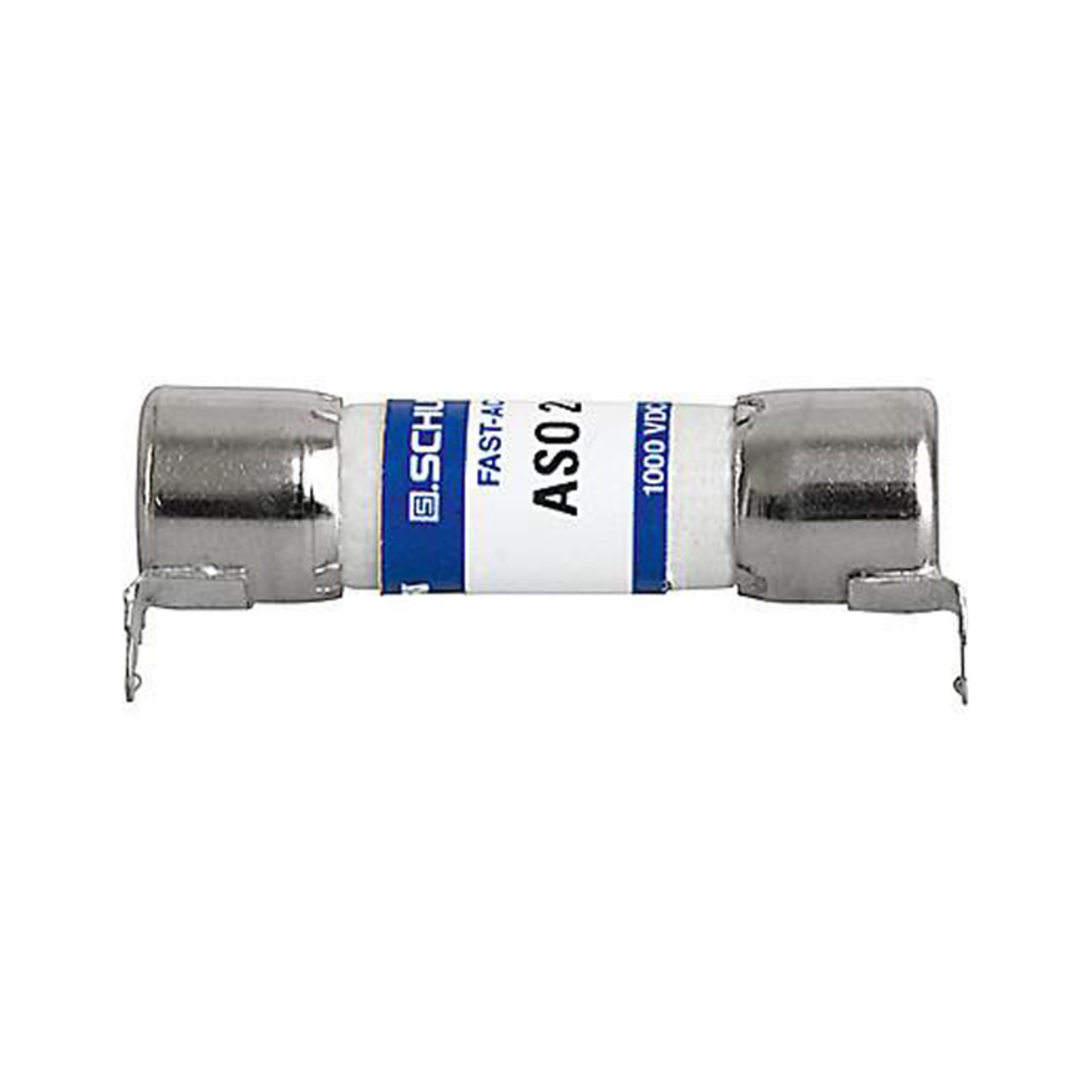

Schurter Device fuse link 10,3x38mm ASO 1.000VDC 30A Photovoltaics
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
100 Pcs.
100 Pcs.
Planned delivery time
Ø 46 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- ASO
- Rated voltage V DC
- 1,000 V DC
- Rated current
- 30 A
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Weight
- 8.3 g
Operating conditions
- Operating temperature range, min.
- -50 °C
- Operating temperature range, max.
- 125 °C
Technical features
- Rated current
- 30 A
- Melting integral
- 2,679 A²/s
- Rated voltage V DC
- 1,000 V DC
- Power loss, max.
- 3,923 W
Safety/Certifications
- Approvals
- CE
- IEC
- UK CA
- UL
- cCSA
- Standards
- IEC/UL 62368-1, IEC 61730-2
