0041.9141.3107

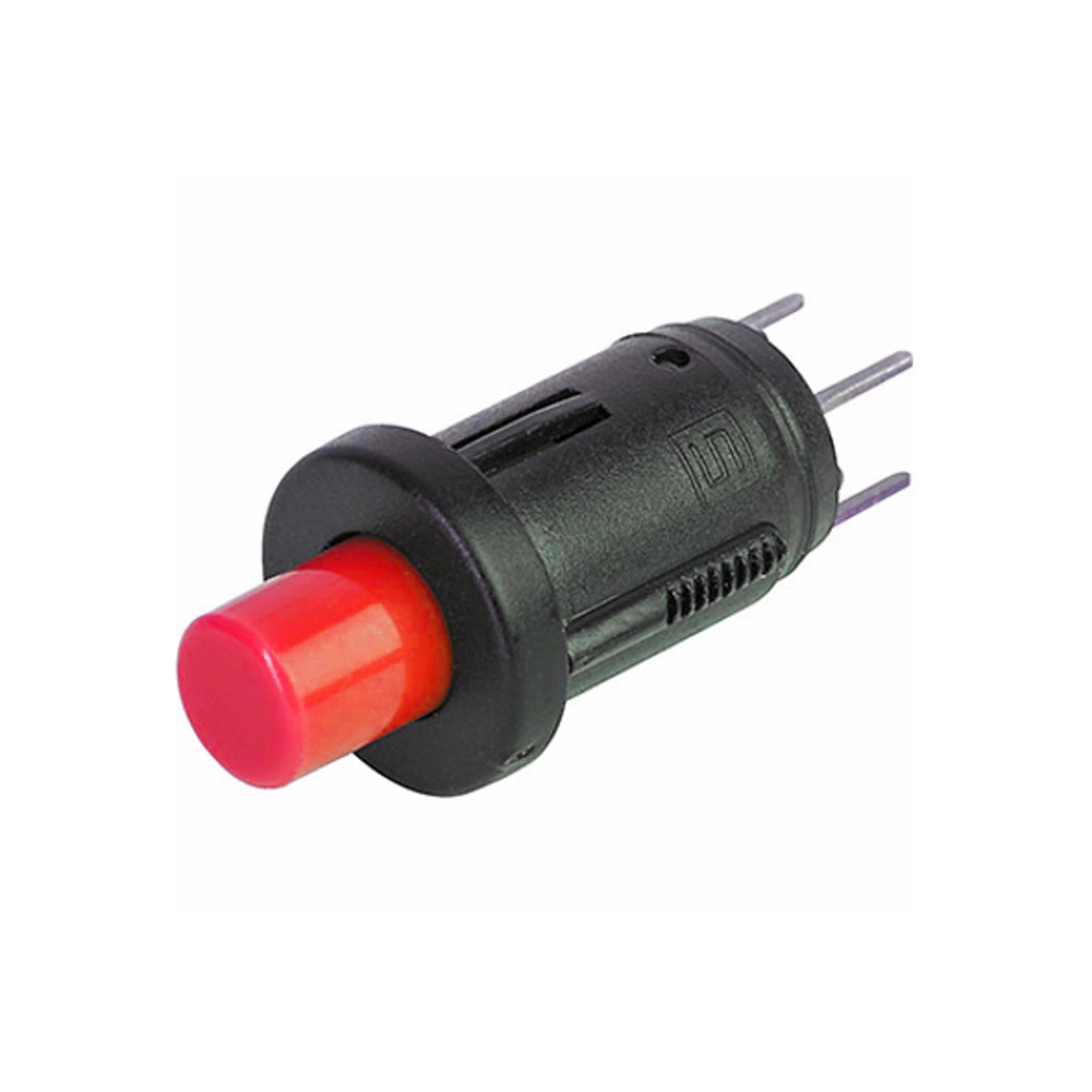

Schurter LDT Push Button Switches 1xNO Solder pin 0,2A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
90 Pcs. in stock
Next Stock Receipt
Week 47/2024
200 Pcs.
200 Pcs.
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Push Button Switches
- Series
- LDT
- Body colour
- black
- contacts
- 1xNO
- Type of actuator
- Push button
- Actuator colour
- red
- Number of poles
- 1
- illumination
- false
- Switching current, max.
- 0.2 A
- Actuating force, max.
- 0,6 N
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 85 °C
- Protection class
- IP40
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating temperature range, min.
- -25 °C
- Operating temperature range, max.
- 85 °C
- Minimum Storage Temperature
- -25 °C
- Maximum Storage Temperature
- 85 °C
Electrical features
- Performance
- 1.2 W
Technical features
- Switching voltage
- 60 V AC
- Mechanical service life
- 10^5 Betätigungen
- Switching current, max.
- 0.2 A
- Contact resistance
- 20 mOhm
- Bounce time
- 0,5 ms
- Material: Terminals
- CuZn 37/5µm Au
Mechanical properties
- Connection
- Solder pin
- Operating path
- 0.5 mm
- Actuating force, max.
- 0,6 N
- Number of poles
- 1
Safety/Certifications
- Protection class
- IP40
