0034.6921

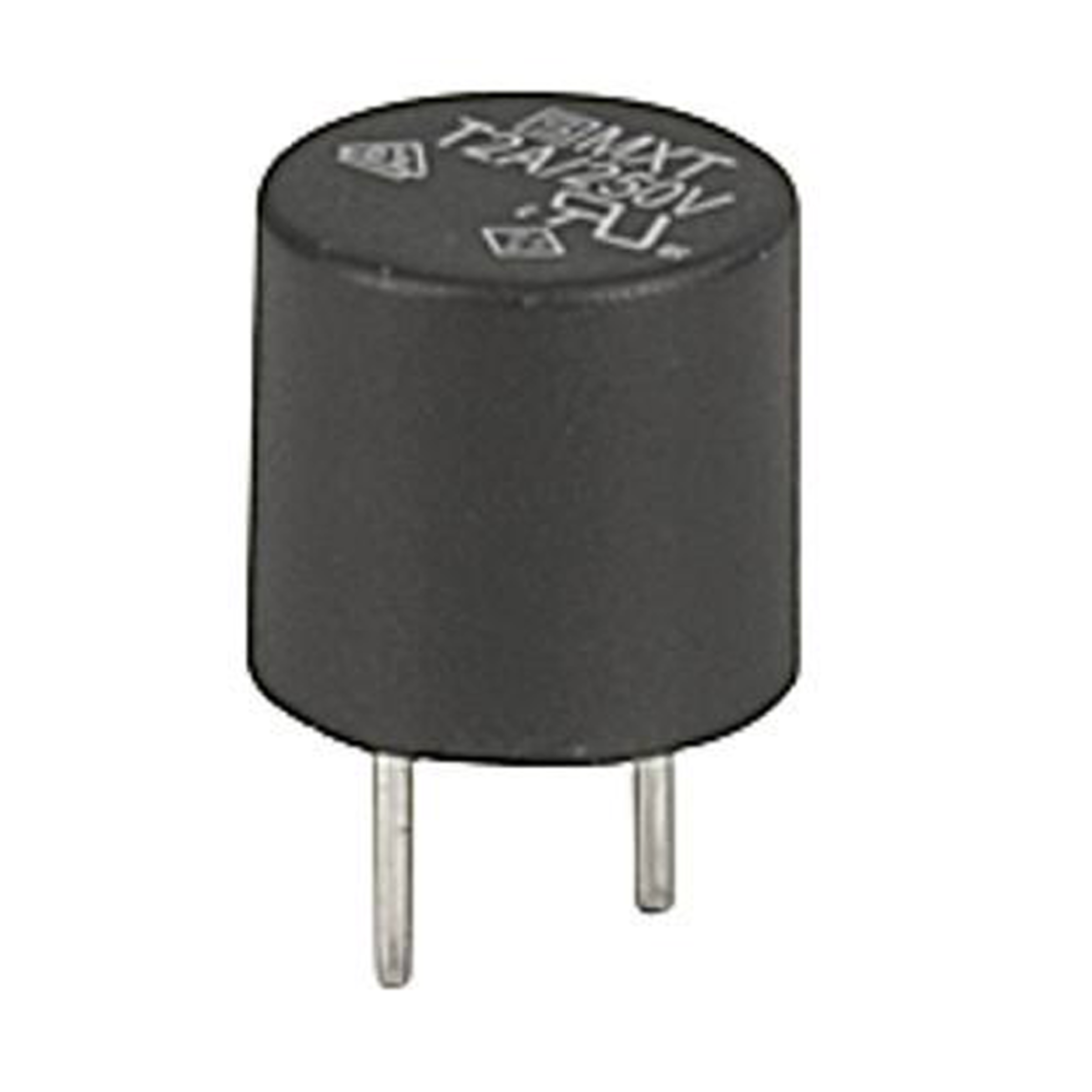

Schurter Miniature fuse link MXT250 250VAC time-lag
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 20.01.2026
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Miniature fuse
- Series
- MXT250
- Characteristic
- time-lag
- Package/Case
- 8,5 mm
- Connection
- radial, short
- Rated voltage V AC
- 250 V AC
- Voltage drop
- 100 mV
- Rated current
- 4 A
- RoHS-Conform
Specifications
Open all

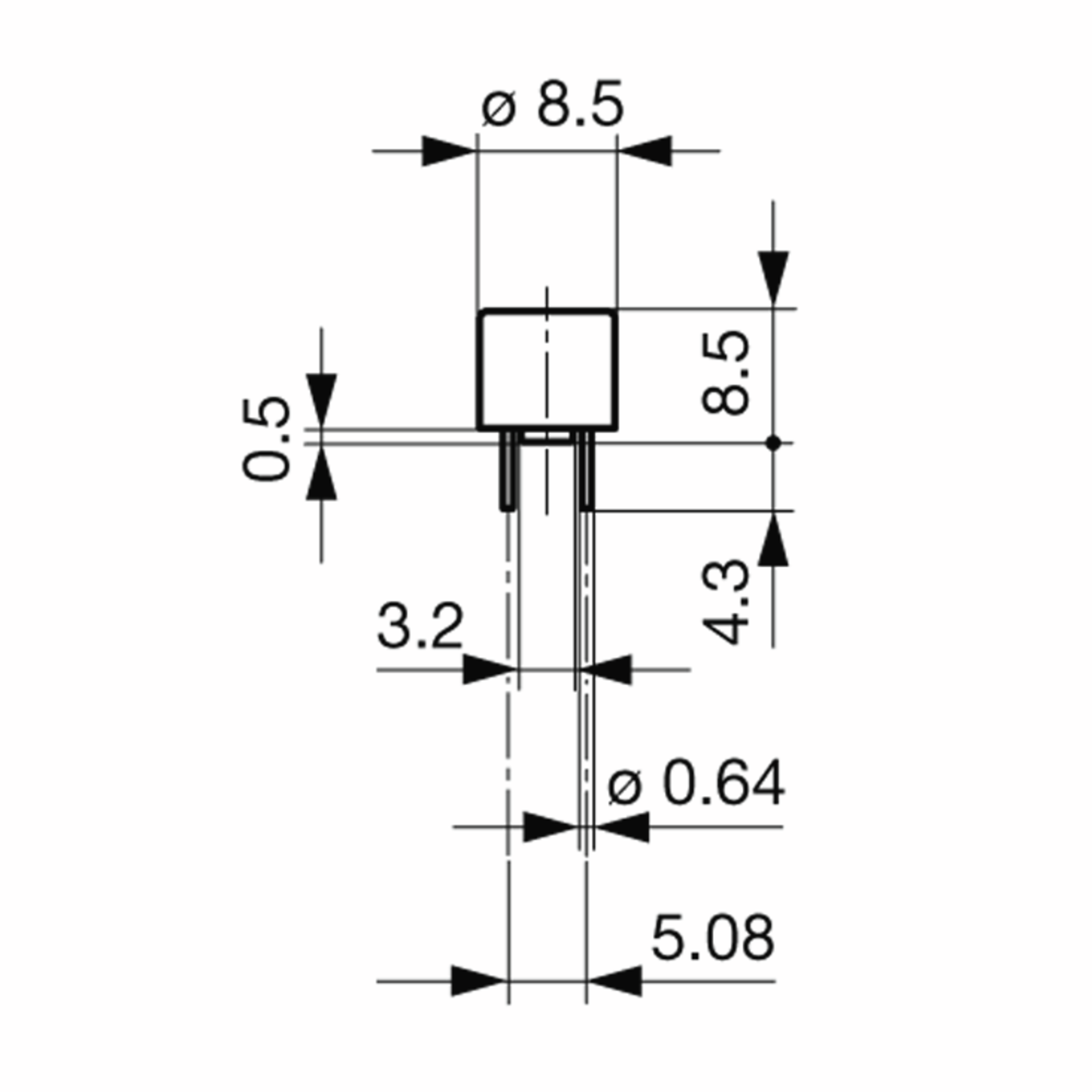

Dimensions and Weights
- Pin length
- 4.3 mm
- Pin diameter
- 0.64 mm
- Weight
- 0.78 g
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
- Climate category IEC
- 40/85/21
Technical Features
- Rated current
- 4 A
- Melting integral
- 77 A²/s
- Rated breaking capacity
- 100 A
- Rated voltage V AC
- 250 V AC
- Voltage drop
- 100 mV
- Power loss, max.
- 1.400 mW
- Solderability
- 235 °C / 2 s
Safety/Certifications
- Approvals
- CCC
- CE
- KTL
- METI
- VDE
- cULus
- Standards
- IEC 60127-3/4, UL 248-14, CSA22.2 No. 248.14, IEC/UL 62368-1
Documents
EOL_M1710_EN.pdf
