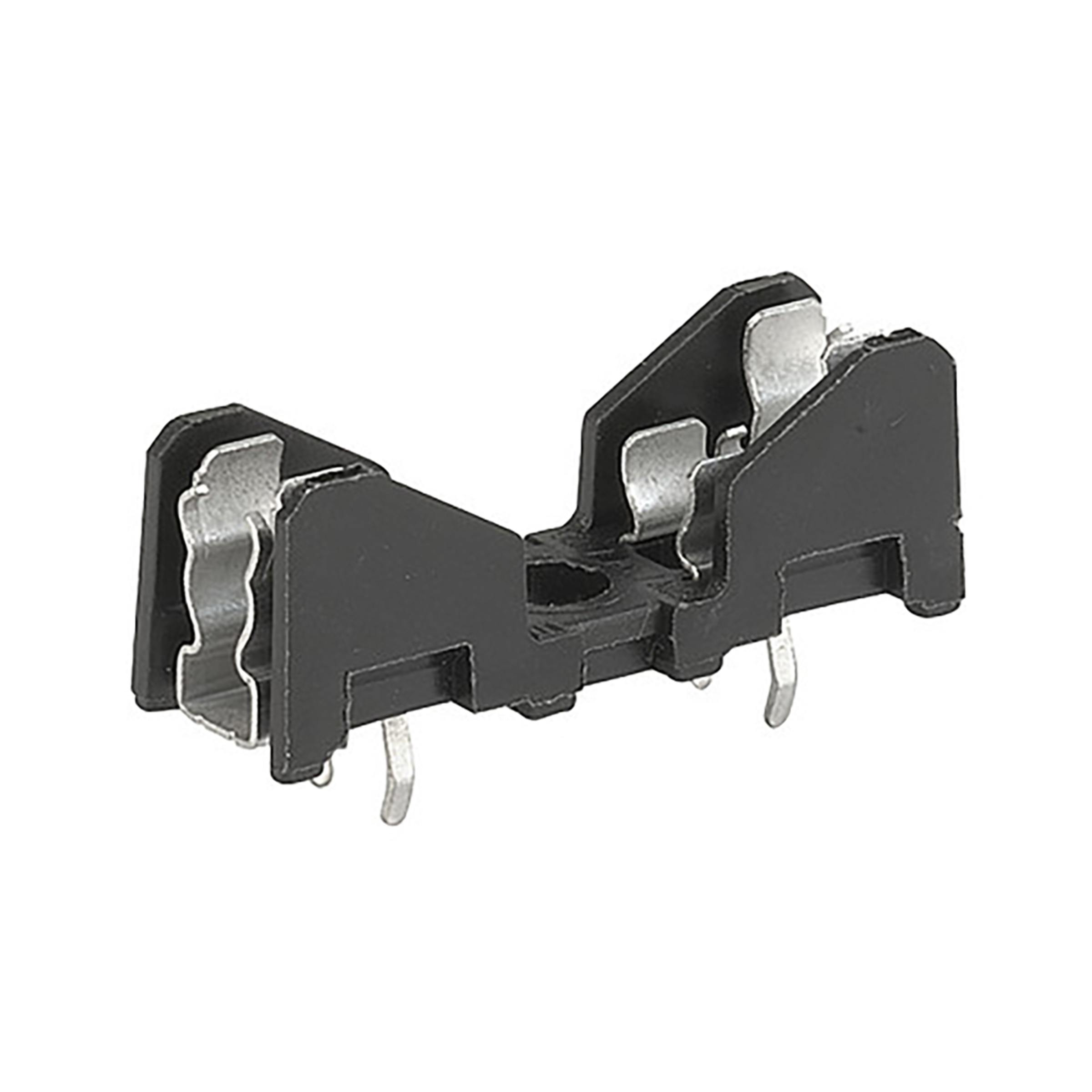

Schurter Fuse holder 5x20 / 6.3x32 500VAC for G-fuses 5x20mm and 6.3x32mm 10A PC1 IP00

0031.82310031.8231
NEW
Manufacturer Part No.
0031.8231
Schukat Part No.
0031.8231
Manufacturer
Schurter
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

300 Pcs. in stock

Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
• Here you will find suitable device fuses and automotive fuses.
Type
Fuse holder 5x20 / 6.3x32
Series
OGD
Housing
open
Insulation class
IP00
Applications
for G-fuses 5x20mm and 6.3x32mm
Rated voltage V AC
500 V AC
Rated current
10 A
Nominal power consumption
4 W
Contact hazard protection Category
PC1
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Schurter
Series
  • OGD
Type
  • Fuse holder 5x20 / 6.3x32
Product group
  • E1821
Housing
  • open
Assembly
  • Printed circuit board assembly
Fastening
  • mounting hole
Applications
  • for G-fuses 5x20mm and 6.3x32mm
Housing material
  • Thermoplastic (UL 94V-0)
Labelling
  • Logo, type, rated voltage, rated power, rated current, test mark
Colour
  • black
Material Terminal
  • Copper alloy, tin plated
Termination Style
  • THT
Features

  • • Universally applicable for devices with three-phase power supply (400V AC)
    • Base with raised insulating walls
    • Special clip end prevents axial displacement of the fuse
    • Protection class: IP20 in conjunction with cover cap OGD-KAPPE (must be ordered separately)

Notice

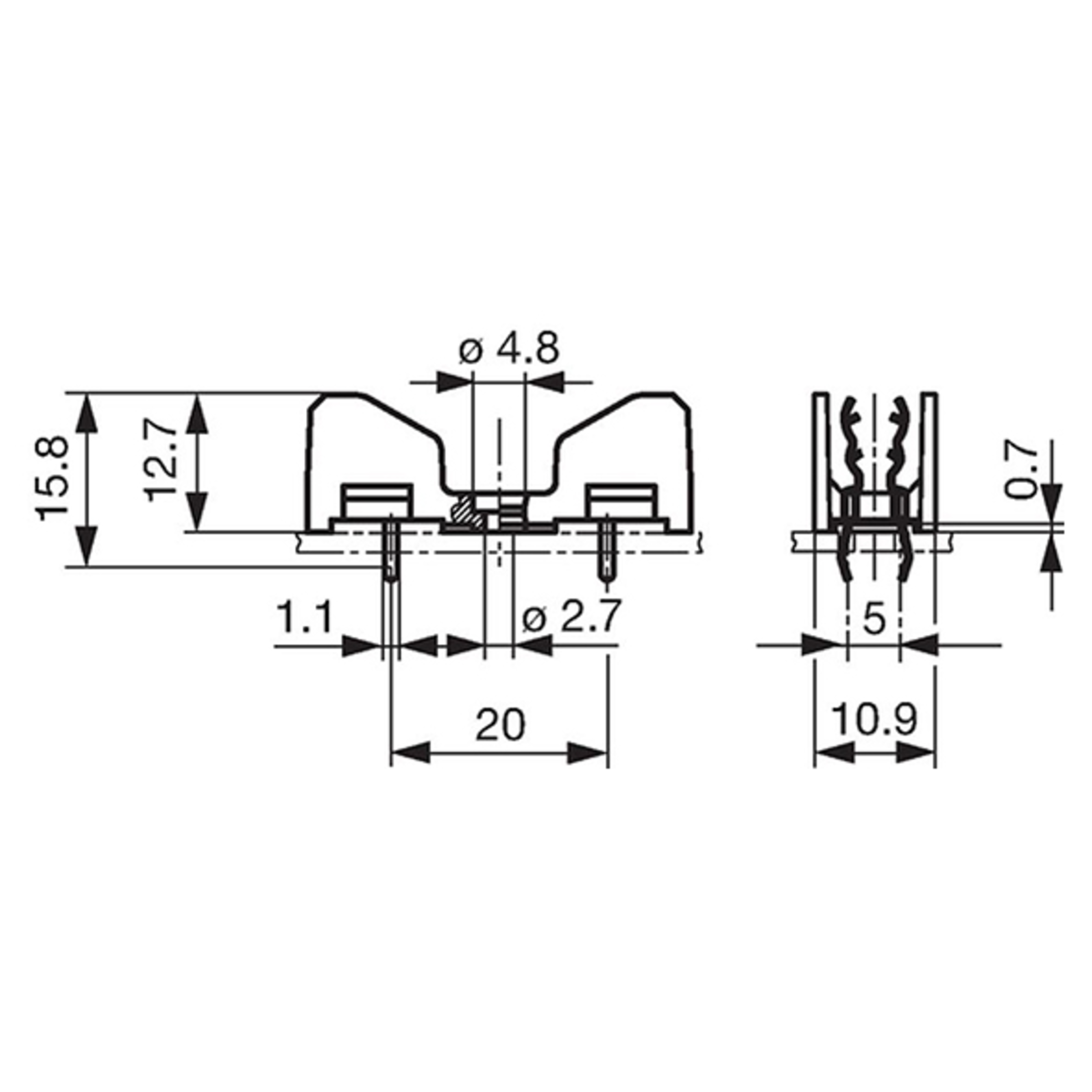

Dimensions and Weights

Dimension: Length
  • 30.5 mm
Dimension: Width
  • 10.9 mm
Dimension: Height
  • 12.7 mm
Pitch
  • 20 mm
Weight
  • 3.7 g

Operating conditions

Operating temperature range, min.
  • -40 °C
Operating temperature range, max.
  • 85 °C
Climate category IEC
  • 40/85/21

Technical Features

Rated current
  • 10 A
Dielectric strength
  • 3 kV
Rated voltage V AC
  • 500 V AC
Contact resistance, max.
  • 10 mOhm
Insulation resistance
  • 10 MOhm
Nominal power consumption
  • 4 W
Solderability
  • 245 °C / 3 s

Mechanical Features

Drilling Dimensions
  • 4.8 mm

Safety/Certifications

Approvals
  • CE
  • IEC
  • UK CA
  • UL
  • VDE
  • cCSA
  • cULus
Standards
  • IEC60127-6, UL 4248-1 / UL 512, CSA C22.2 no. 39
Insulation class
  • IP00
Contact hazard protection Category
  • PC1
