0031.2323

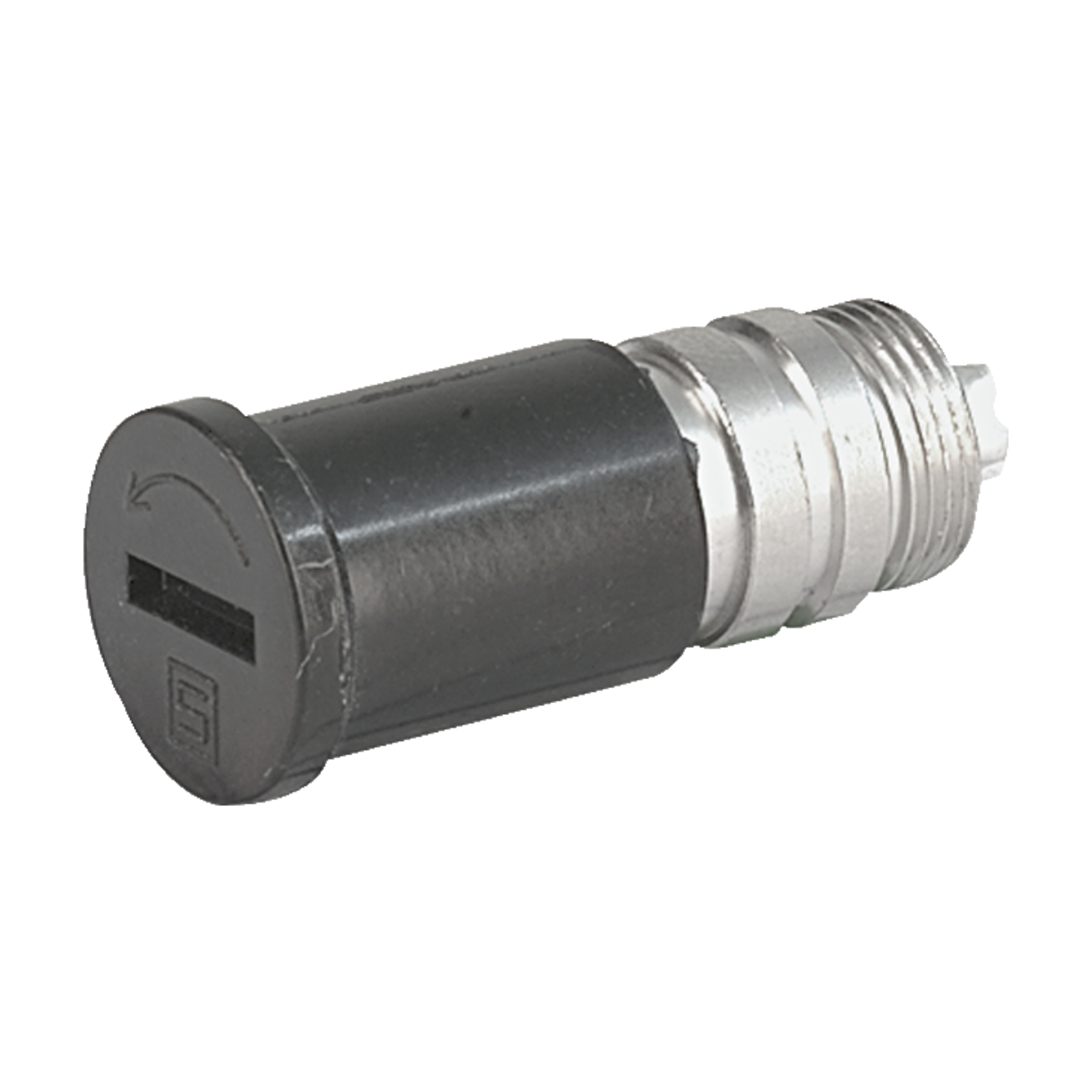

Schurter Carrier 500VAC for 5x20mm fuses 16A IP40

0031.23230031.23230031.2323
Manufacturer Part No.
0031.2323
Schukat Part No.
0031.2323
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

120 Pcs. in stock

Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
• Here you will find suitable device fuses.
• Here you will find suitable 0031.2500 and .

Type
Carrier
Series
FUL / FUP
Insulation class
IP40
Applications
for 5x20mm fuses
Rated voltage V AC
500 V AC
Rated current
16 A
Nominal power consumption
4 W
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Schurter
Series
  • FUL / FUP
Type
  • Carrier
Product group
  • E1833
Assembly
  • thread
Applications
  • for 5x20mm fuses
Housing material
  • Duroplastic (UL94V-0)
Labelling
  • logo
Features
  • • Carrier for 5x20mm fuses, FUL and FUP series
    • Slotted cap
    • For fuse housing 0031.2500 (must be ordered separately)

Notice
  • Cross-references:
    • Here you will find suitable device fuses.
    • Here you will find suitable 0031.2500 and .

Dimensions and Weights

Dimension: Height
  • 31.3 mm
Diameter
  • 14.9 mm
Weight
  • 11 g

Operating conditions

Operating temperature range, min.
  • -40 °C
Operating temperature range, max.
  • 85 °C

Technical Features

Rated current
  • 16 A
Rated voltage V AC
  • 500 V AC
Nominal power consumption
  • 4 W

Safety/Certifications

Approvals
  • VDE
  • cULus
Insulation class
  • IP40

Documents

PCN_D10-100-253_EN.pdf
