0031.2320

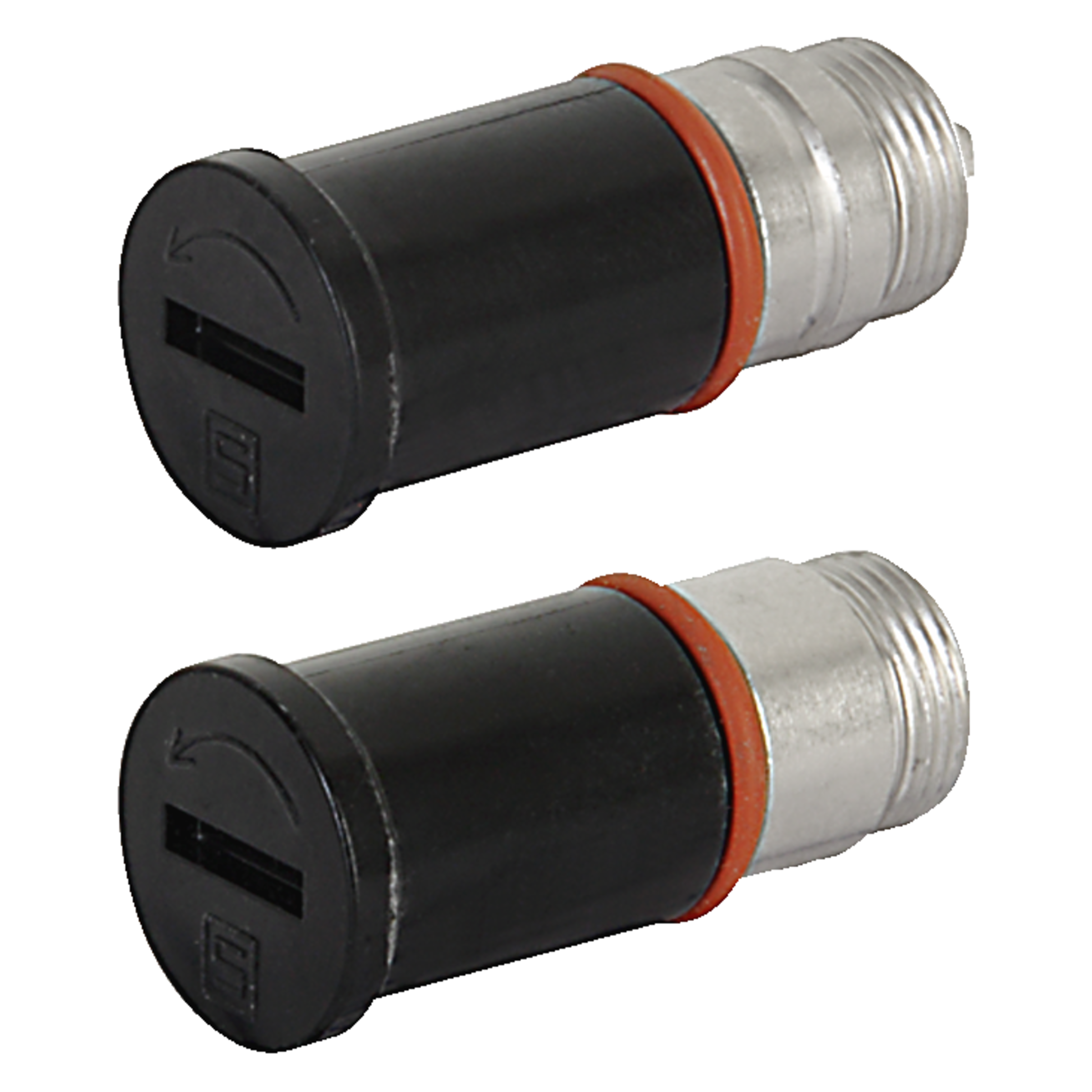

Schurter Cover cap 500VAC Head for fuse holder FUL IP67
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
122 Pcs. in stock
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable device fuses and automotive fuses. - Type
- Cover cap
- Series
- FUL
- Insulation class
- IP67
- Applications
- Head for fuse holder FUL
- Rated voltage V AC
- 500 V AC
- Nominal power consumption
- 4 W
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Height
- 34.7 mm
- Diameter
- 14.9 mm
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
Technical Features
- Rated voltage V AC
- 500 V AC
- Nominal power consumption
- 4 W
Safety/Certifications
- Approvals
- VDE
- cULus
- Insulation class
- IP67
