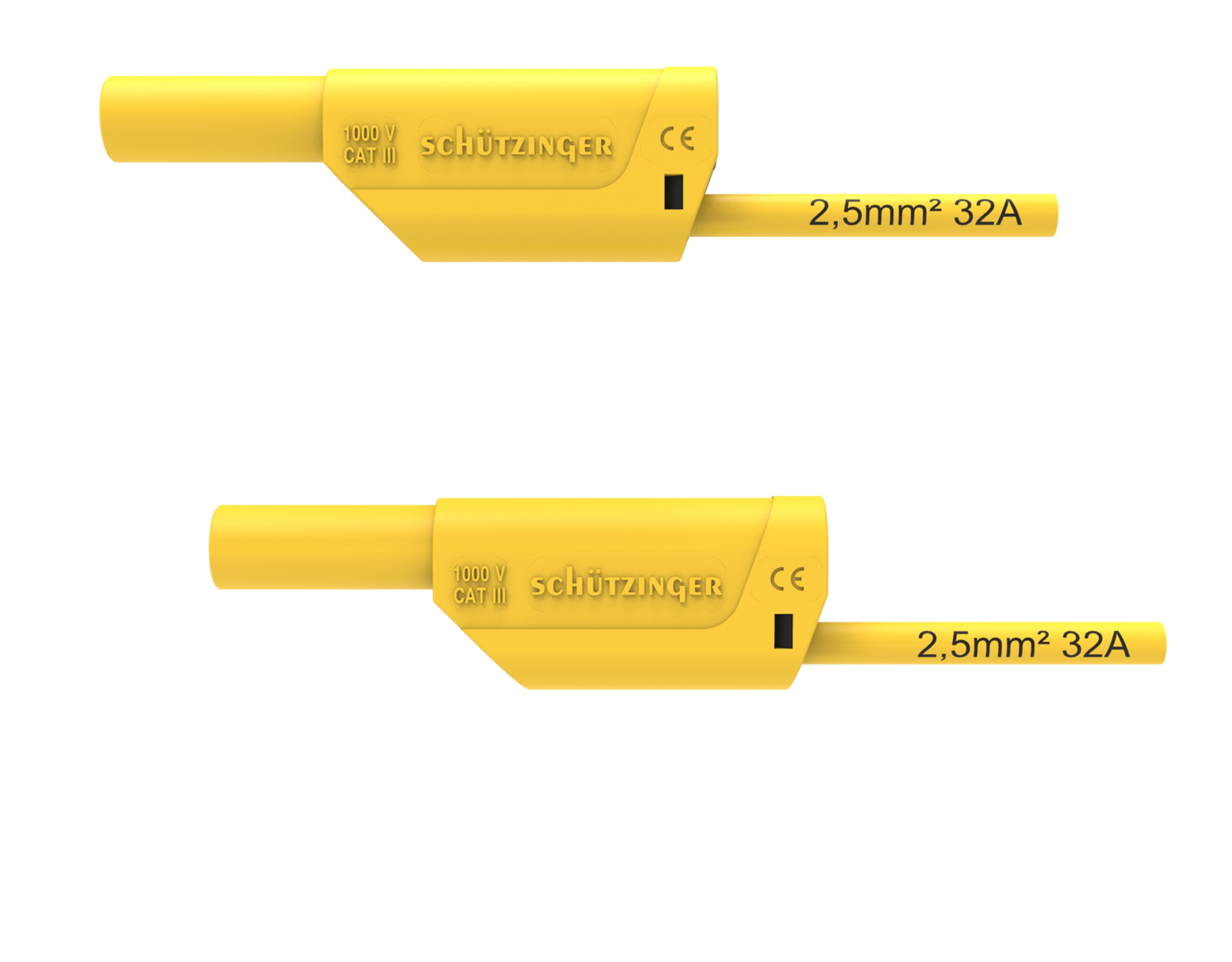

VSFK 8700 / 2.5 / 50 / GE
Schützinger
Manufacturer Part No.
VSFK 8700 / 2.5 / 50 / GE
Schukat Part No.
VSFK8700/2.5/50/GE
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
4 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- VSFK 8700 / 2.5
- Colour
- yellow
- Rated current
- 32 A
- Rated voltage AC
- 1,000 V AC
- Operating Temperature Min.
- -10 °C
- Operating Temperature Max.
- 70 °C
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Cable length
- 0.5 mm
- Conductor cross-section, max.
- 2.5 mm²
Operating conditions
- Operating Temperature Min.
- -10 °C
- Operating Temperature Max.
- 70 °C
Technical features
- Rated current
- 32 A
- Rated voltage AC
- 1,000 V AC
- Contact resistance
- 9 MOhm
Documents
vsfk_6000_6001_1.pdf
vsfk_8700_2.5_310321.pdf
vsfk_8701_2.5_310321.pdf
