VSFK 8700 / 2.5 / 200 GNGE

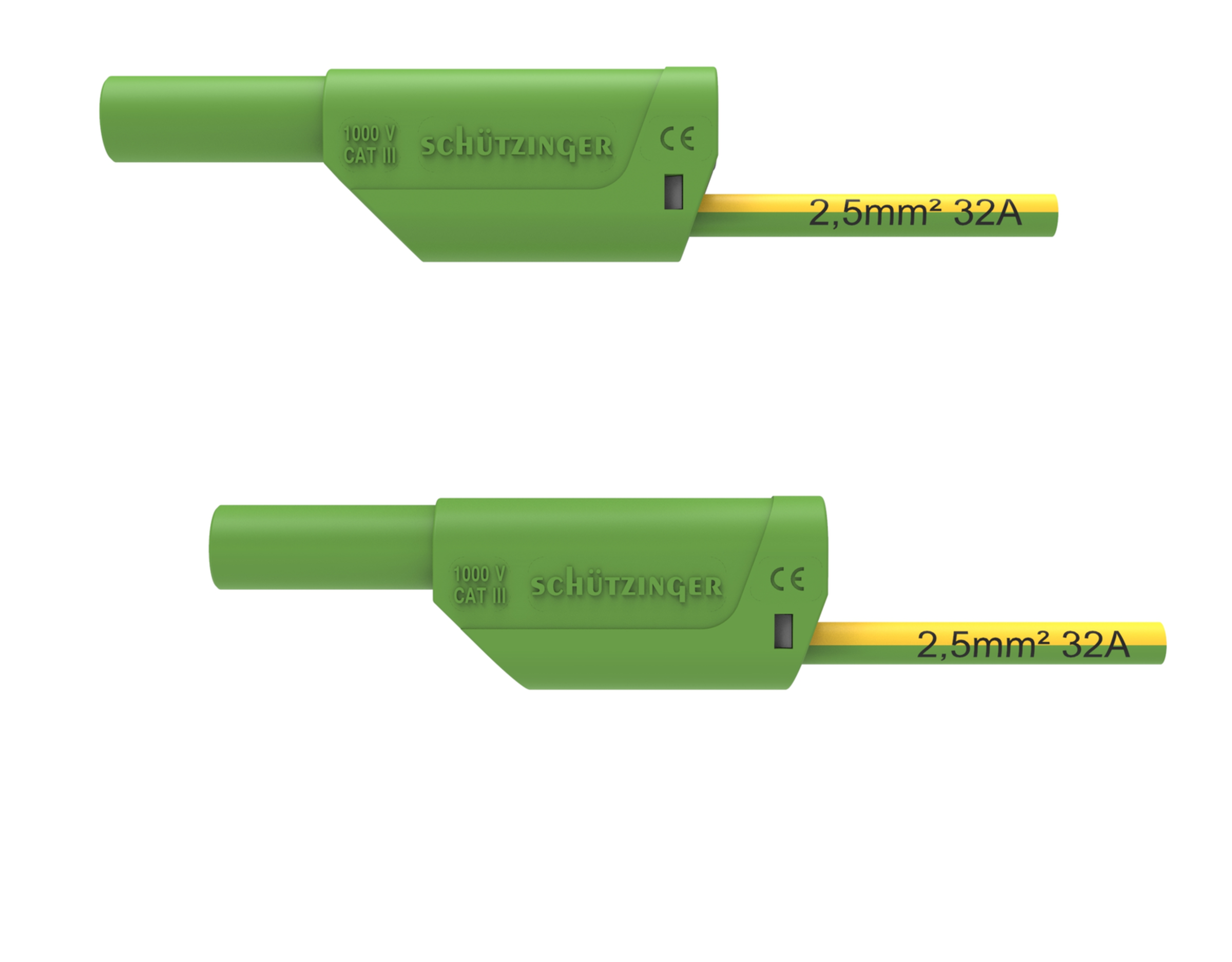

Schützinger Test lead VSFK 8700 / 2.5 round CAT III yellow green Plug in 2,5mm² 4mm 2m 32A 1.000VAC 35mOhm
Manufacturer Part No.
VSFK 8700 / 2.5 / 200 GNGE
Schukat Part No.
VSFK8700/2.5/200GG
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
4 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Plug
- Type
- Test lead
- Connector Contact
- Plug in
- Series
- VSFK 8700 / 2.5
- Colour
- green
yellow - Housing material
- Polyamide (PA) 66
- Housing
- round
- Measurement category
- CAT III
- Cable diameter, max.
- 4 mm
- Class of Inflammability
- UL 94 V-2
- Operating Temperature Max.
- 70 °C
- Rated voltage AC
- 1,000 V AC
- Rated current
- 32 A
- Operating Temperature Min.
- -10 °C
- RoHS-Conform
Specifications
Open all

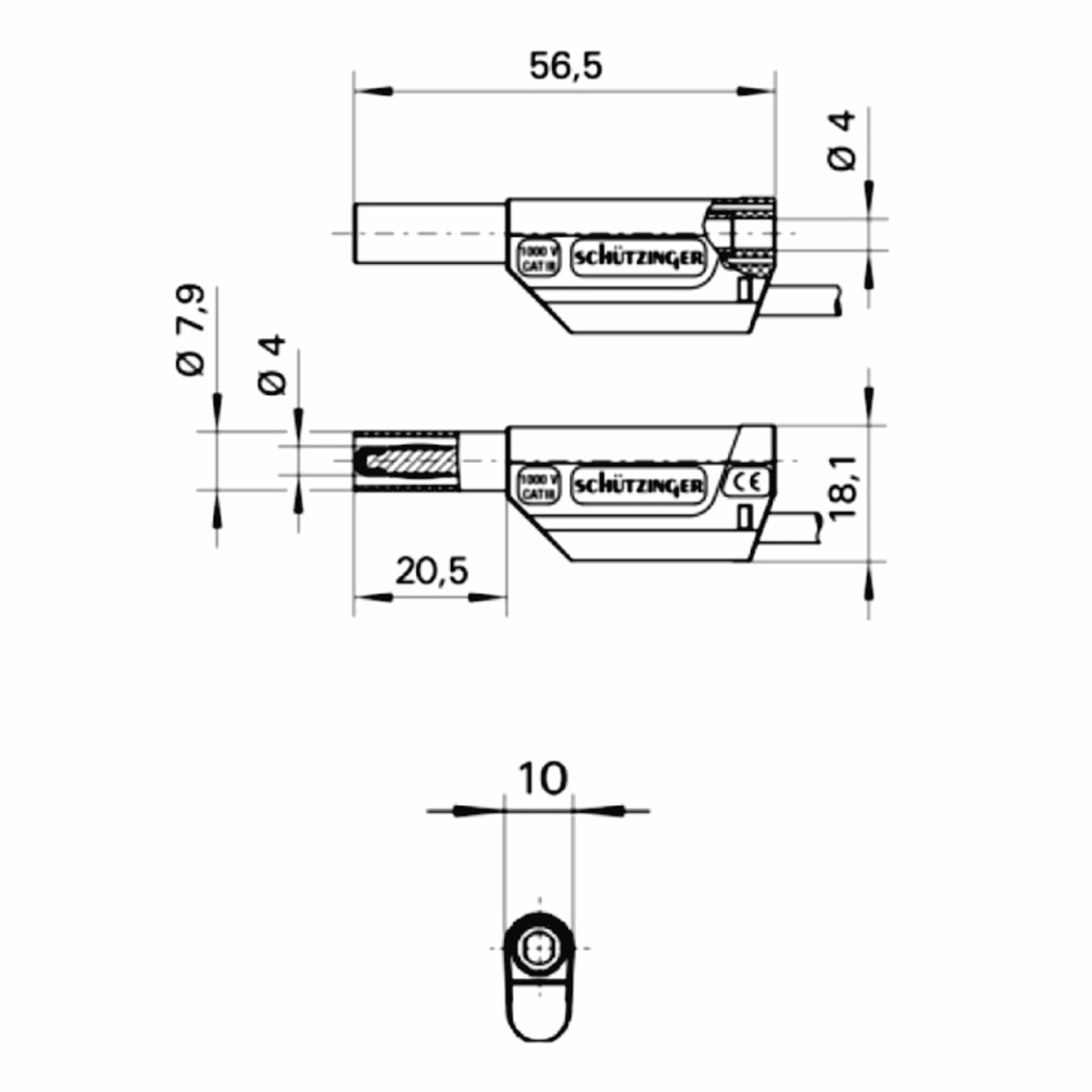

Dimensions and Weights
- Dimension: Length
- 56.5 mm
- Diameter
- 7.9 mm
- Cable diameter, max.
- 4 mm
- Cable length
- 2 m
- Conductor cross-section, max.
- 2.5 mm²
Operating conditions
- Operating Temperature Min.
- -10 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Rated current
- 32 A
- Rated voltage AC
- 1,000 V AC
- Contact resistance
- 35 mOhm
Mechanical Features
- Housing material
- Polyamide (PA) 66
- Contact Surface Input
- vernickelt
Safety/Certifications
- Class of Inflammability
- UL 94 V-2
