VSFK 8500 / 1 / 200 / GE
Schützinger Test lead VSFK 8500 / 1 round CAT II yellow Plug in 1mm² 4mm 2m 16A 1.000VAC 35mOhm
Manufacturer Part No.
VSFK 8500 / 1 / 200 / GE
Schukat Part No.
VSFK8500/1/200/GE
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
10 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Plug
- Type
- Test lead
- Connector Contact
- Plug in
- Series
- VSFK 8500 / 1
- Colour
- yellow
- Housing material
- Polyamide (PA) 66
- Housing
- round
- Measurement category
- CAT II
- Cable diameter, max.
- 4 mm
- Class of Inflammability
- UL 94 V-2
- Operating Temperature Max.
- 70 °C
- Rated voltage AC
- 1,000 V AC
- Rated current
- 16 A
- Operating Temperature Min.
- -10 °C
- RoHS-Conform
Specifications
Open all

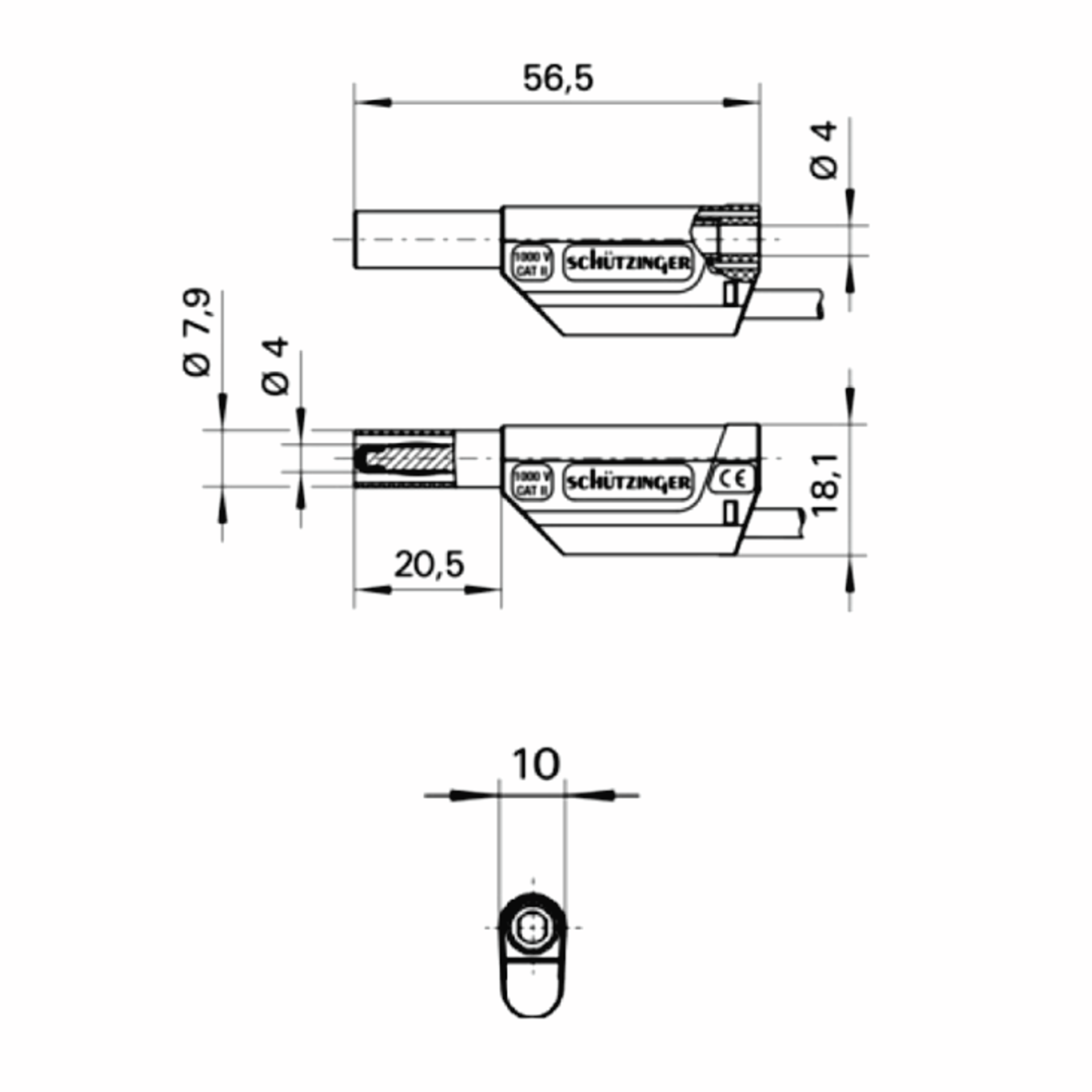

Dimensions and Weights
- Dimension: Length
- 56.5 mm
- Diameter
- 7.9 mm
- Cable diameter, max.
- 4 mm
- Cable length
- 2 m
- Conductor cross-section, max.
- 1 mm²
Operating conditions
- Operating Temperature Min.
- -10 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Rated current
- 16 A
- Rated voltage AC
- 1,000 V AC
- Contact resistance
- 35 mOhm
Mechanical Features
- Housing material
- Polyamide (PA) 66
- Contact Surface Input
- vernickelt
Safety/Certifications
- Class of Inflammability
- UL 94 V-2
