SPS 8034 NI / SW

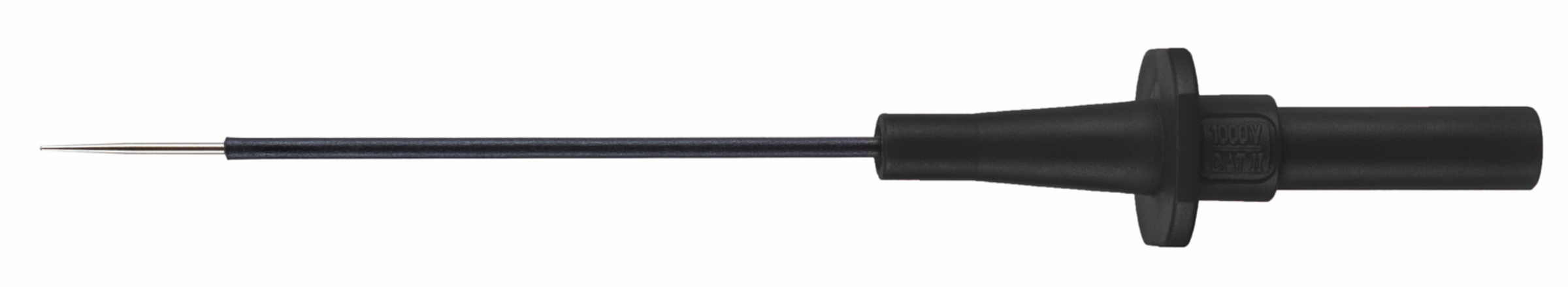

Schützinger Test probe SPS 8034 NI round CAT II black Plug in 4mm 5A 1.000VAC 20mOhm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
7 Pcs. in stock
Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Test probe
- Connector Contact
- Plug in
- Series
- SPS 8034 NI
- Colour
- black
- Housing material
- Polyamide (PA) 66
- Housing
- round
- Measurement category
- CAT II
- Cable diameter, max.
- 4 mm
- Operating Temperature Max.
- 80 °C
- Rated voltage AC
- 1,000 V AC
- Rated current
- 5 A
- Operating Temperature Min.
- -25 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 111 mm
- Cable diameter, max.
- 4 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 80 °C
Technical Features
- Rated current
- 5 A
- Rated voltage AC
- 1,000 V AC
- Contact resistance
- 20 mOhm
Mechanical Features
- Housing material
- Polyamide (PA) 66
- Contact Surface Input
- vernickelt
