SEPB 8522 NI / SW

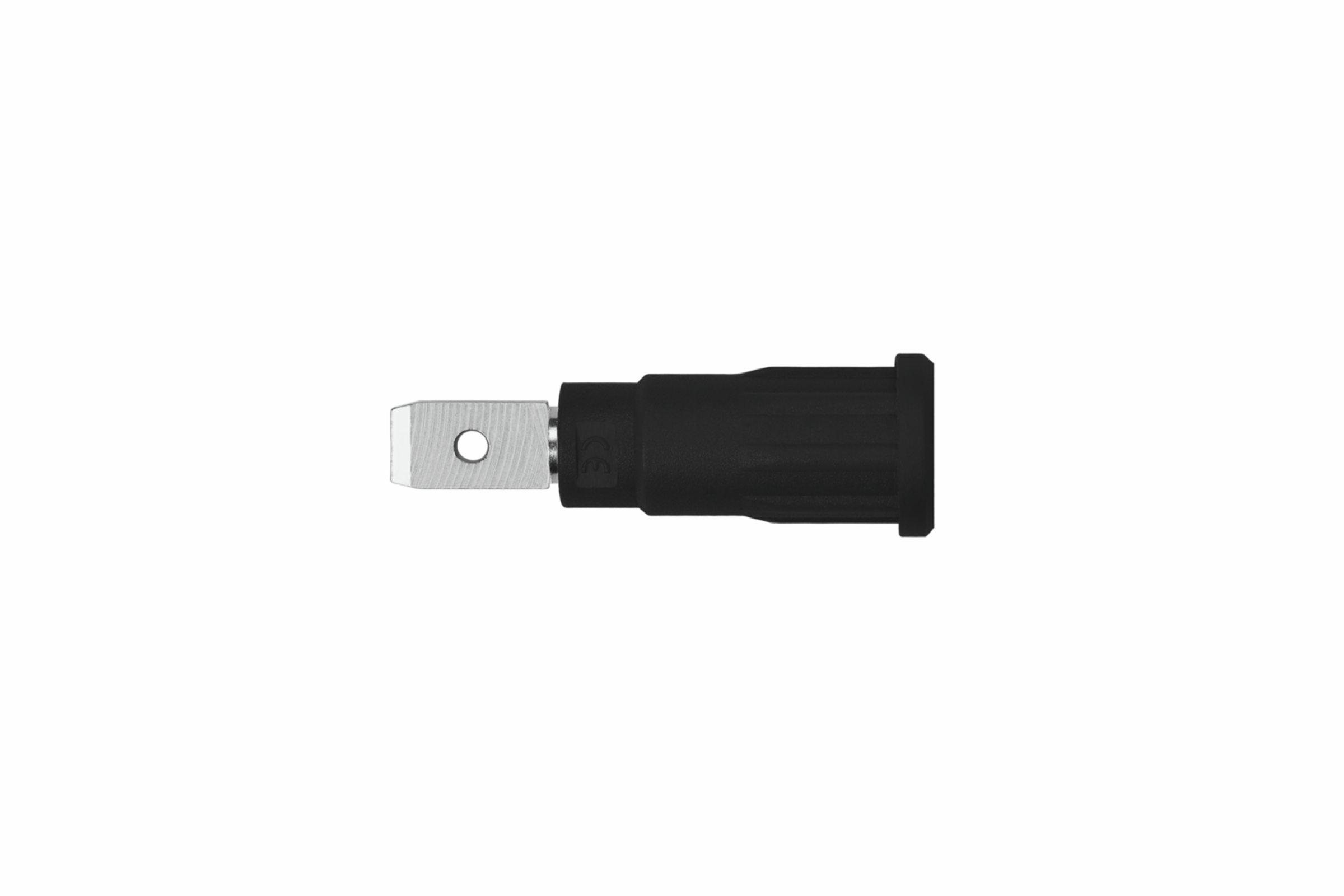

Schützinger Press-fit bushing SEPB 8522 NI round CAT II black Plug in 2mm 10A 600VAC 5mOhm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
20 Pcs. in stock
Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Press-fit bushing
- Connector Contact
- Plug in
- Series
- SEPB 8522 NI
- Colour
- black
- Housing material
- Polyamide (PA) 66
- Housing
- round
- Measurement category
- CAT II
- Cable diameter, max.
- 2 mm
- Operating Temperature Max.
- 80 °C
- Rated voltage AC
- 600 V AC
- Rated current
- 10 A
- Operating Temperature Min.
- -25 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 29.2 mm
- Diameter
- 10 mm
- Cable diameter, max.
- 2 mm
- Mounting plate thickness
- 2 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 80 °C
Technical Features
- Rated current
- 10 A
- Rated voltage AC
- 600 V AC
- Contact resistance
- 5 mOhm
Mechanical Features
- Faston terminal
- 4.8 mm
- Drilling Dimensions
- 8 mm
- Housing material
- Polyamide (PA) 66
- Contact Surface Input
- vernickelt
