SEB6448NI/RT

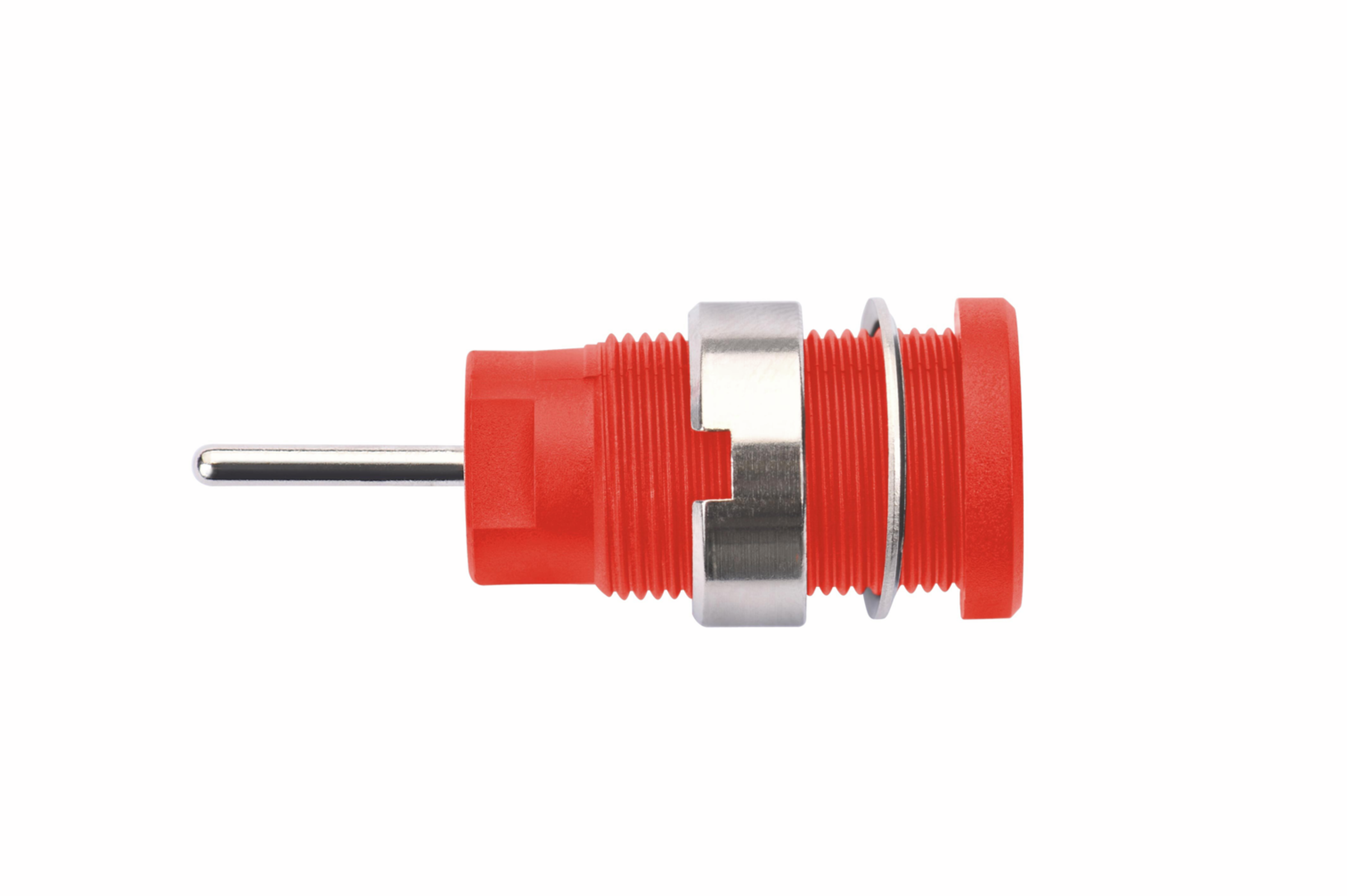

Schützinger Installation socket SEB 6448 Ni round CAT III red Solder 4mm 24A 1.000VAC 5mOhm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
10 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Installation socket
- Connector Contact
- Solder
- Series
- SEB 6448 Ni
- Colour
- red
- Housing material
- Polyamide (PA) 66
- Housing
- round
- Measurement category
- CAT III
- Cable diameter, max.
- 4 mm
- Class of Inflammability
- UL 94 V-2
- Operating Temperature Max.
- 80 °C
- Rated voltage AC
- 1,000 V AC
- Rated current
- 24 A
- Operating Temperature Min.
- -25 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 36.3 mm
- Diameter
- 14.5 mm
- Cable diameter, max.
- 4 mm
- Mounting plate thickness
- 6 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 80 °C
Technical Features
- Rated current
- 24 A
- Rated voltage AC
- 1,000 V AC
- Contact resistance
- 5 mOhm
Mechanical Features
- Drilling Dimensions
- 12.2 mm
- Housing material
- Polyamide (PA) 66
- Contact Surface Input
- vernickelt
Safety/Certifications
- Class of Inflammability
- UL 94 V-2
Conformity
- REACH Notice
- REACh Art. 33: contains Lead CAS# 7439-92-1
