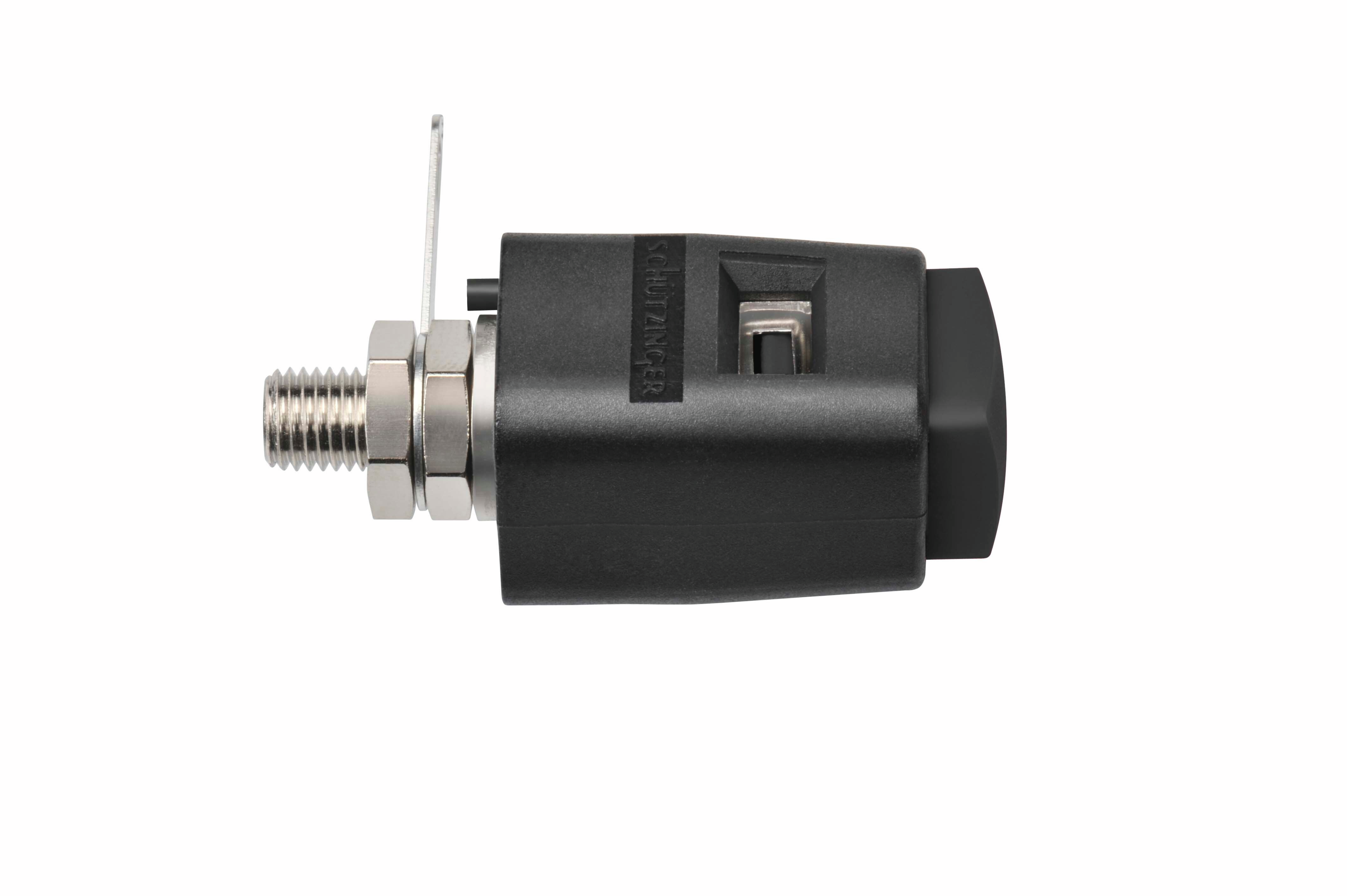

Schützinger Quick pressure terminal SDK 504 red Solder Plug in 4mm 16A 30VAC 5mOhm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
20 Pcs. in stock
Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Quick pressure terminal
- Connector Contact
- Plug in
Solder - Series
- SDK 504
- Colour
- red
- Housing material
- Polyamide (PA) 66
- Cable diameter, max.
- 4 mm
- Operating Temperature Max.
- 90 °C
- Rated voltage AC
- 30 V AC
- Rated current
- 16 A
- Rated voltage DC
- 60 V DC
- Operating Temperature Min.
- -25 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Cable diameter, max.
- 4 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 90 °C
Technical Features
- Rated current
- 16 A
- Rated voltage AC
- 30 V AC
- Rated voltage DC
- 60 V DC
- Contact resistance
- 5 mOhm
Mechanical Features
- Housing material
- Polyamide (PA) 66
- Contact Surface Input
- vernickelt
