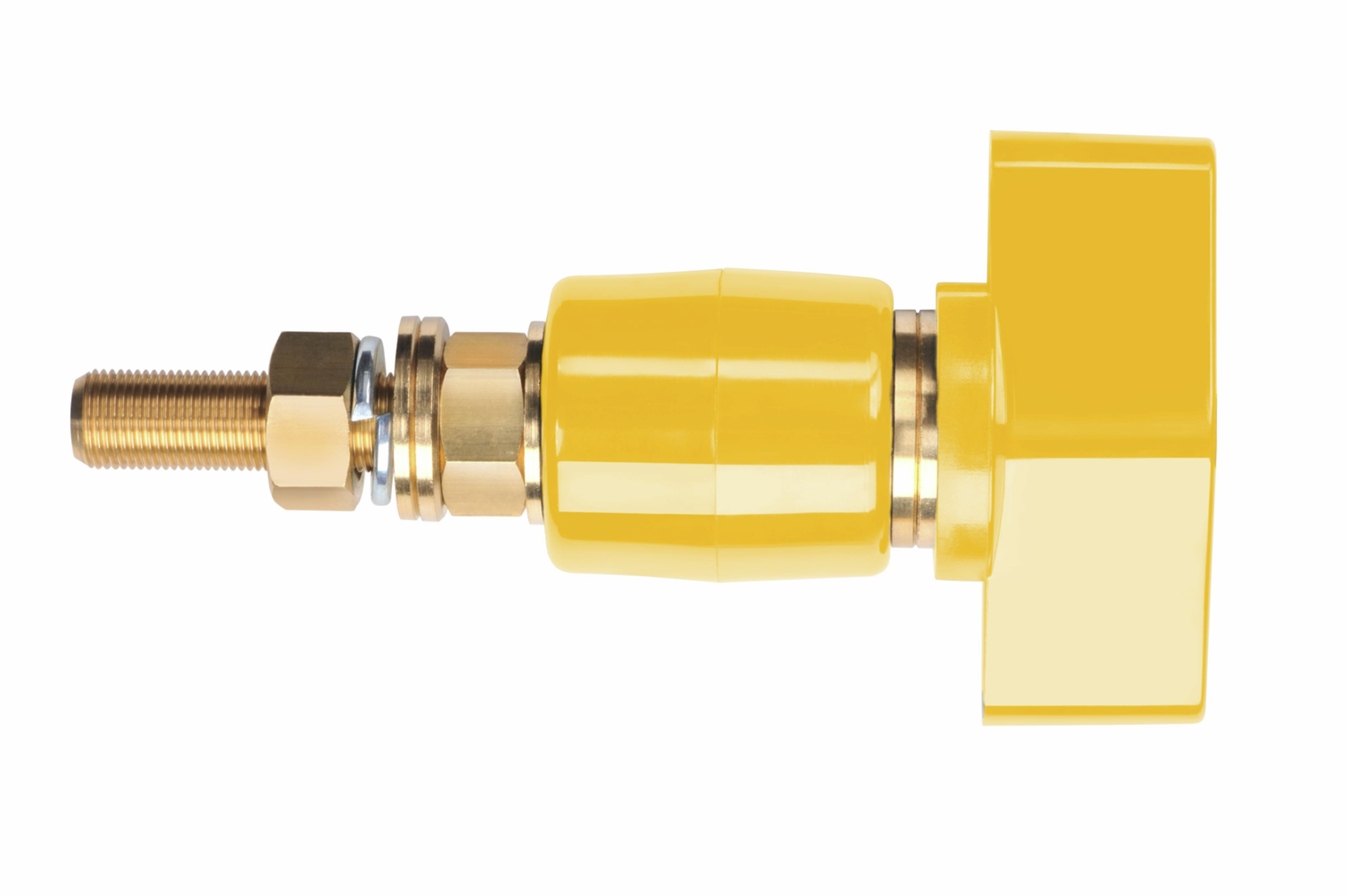

POL201/GE
Schützinger Pole terminal POL 201 round CAT I yellow Solder Screw Plug in Screw connection M12 4mm 200A 1.000VAC 0,3mOhm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
6 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 5 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Pole terminal
- Connector Contact
- Plug in
Screw
Solder - Series
- POL 201
- Colour
- yellow
- Housing material
- Polycarbonat (PC)
- Housing
- round
- Measurement category
- CAT I
- Cable diameter, max.
- 4 mm
- Operating Temperature Max.
- 115 °C
- Rated voltage AC
- 1,000 V AC
- Rated current
- 200 A
- Operating Temperature Min.
- -25 °C
- RoHS-Conform
Specifications
Open all

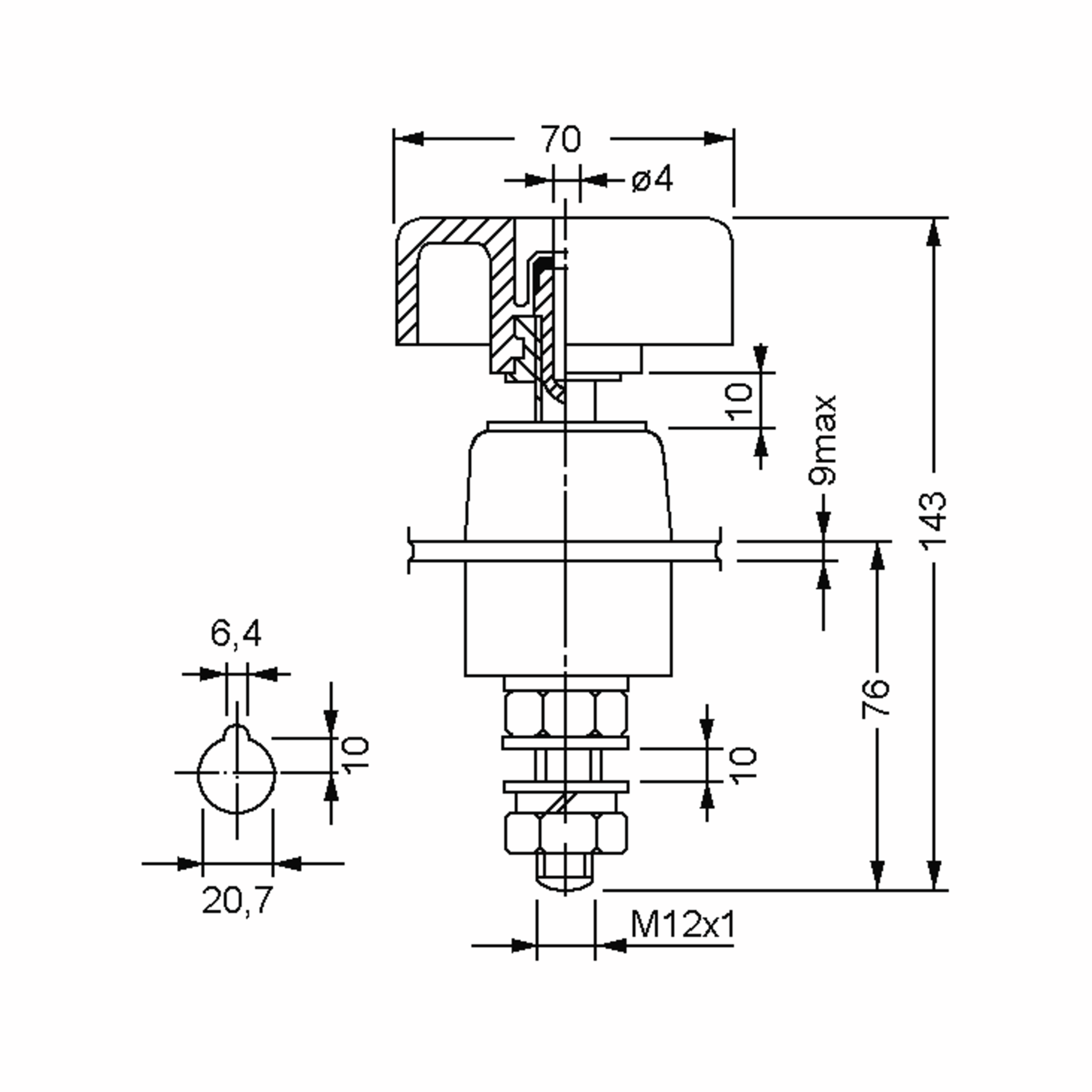

Dimensions and Weights
- Dimension: Length
- 143 mm
- Diameter
- 70 mm
- Cable diameter, max.
- 4 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 115 °C
Technical Features
- Rated current
- 200 A
- Rated voltage AC
- 1,000 V AC
- Contact resistance
- 0,3 mOhm
Mechanical Features
- Drilling Dimensions
- 20.7 mm
- Tightening torque
- 1,550 nm
- Housing material
- Polycarbonat (PC)
- Contact Surface Input
- vernickelt
