FK15LNI/1/RT
Schützinger FK 15 L Ni CAT I red 1mm² 4mm 16A 70VAC 3MOhm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 17.08.2023
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Plug
- Series
- FK 15 L Ni
- Colour
- red
- Measurement category
- CAT I
- Cable diameter, max.
- 4 mm
- Operating Temperature Max.
- 75 °C
- Rated voltage AC
- 70 V AC
- Rated current
- 16 A
- Operating Temperature Min.
- -25 °C
- RoHS-Conform
Specifications
Open all

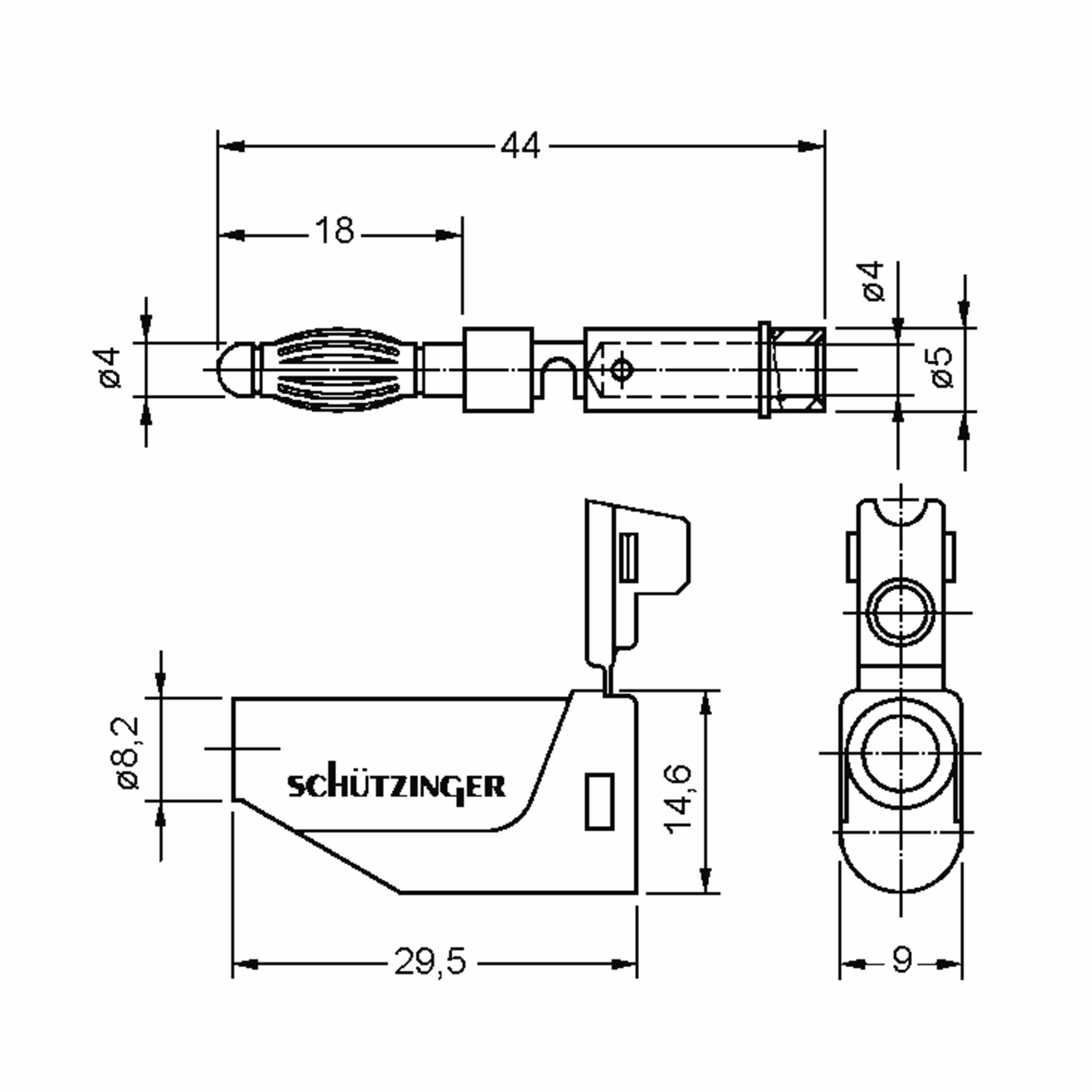

Dimensions and Weights
- Dimension: Length
- 44 mm
- Diameter
- 5 mm
- Cable diameter, max.
- 4 mm
- Conductor cross-section, max.
- 1 mm²
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 75 °C
Technical Features
- Rated current
- 16 A
- Rated voltage AC
- 70 V AC
- Contact resistance
- 3 MOhm
Conformity
- REACH Notice
- REACh Art. 33: contains Lead CAS# 7439-92-1
