KS 17-2

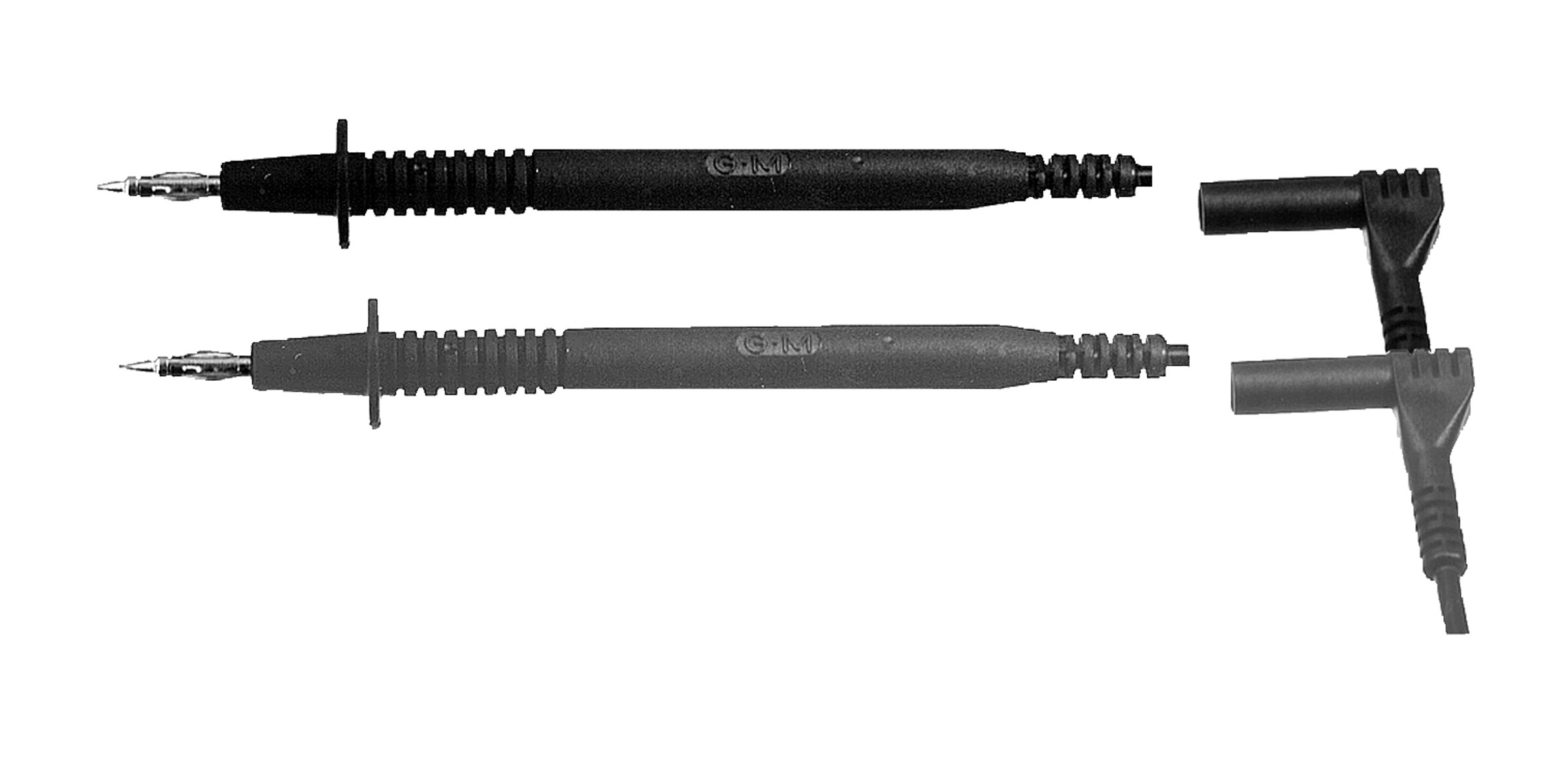

Schnepp GmbH Test probe KS17 round CAT II red black Plug in 4mm 1m 16A 1.000VAC
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
59 Pcs. in stock
Next Stock Receipt
Week 21/2026
63 Pcs.
63 Pcs.
Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Test probe
- Connector Contact
- Plug in
- Series
- KS17
- Colour
- black
red - Housing material
- Polyamide (PA)
- Housing
- round
- Measurement category
- CAT II
- Cable diameter, max.
- 4 mm
- Operating Temperature Max.
- 60 °C
- Rated voltage AC
- 1,000 V AC
- Rated current
- 16 A
- Operating Temperature Min.
- -10 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Cable diameter, max.
- 4 mm
- Cable length
- 1 m
Operating conditions
- Operating Temperature Min.
- -10 °C
- Operating Temperature Max.
- 60 °C
Technical Features
- Rated current
- 16 A
- Rated voltage AC
- 1,000 V AC
Mechanical Features
- Housing material
- Polyamide (PA)
- Contact Surface Input
- vernickelt
