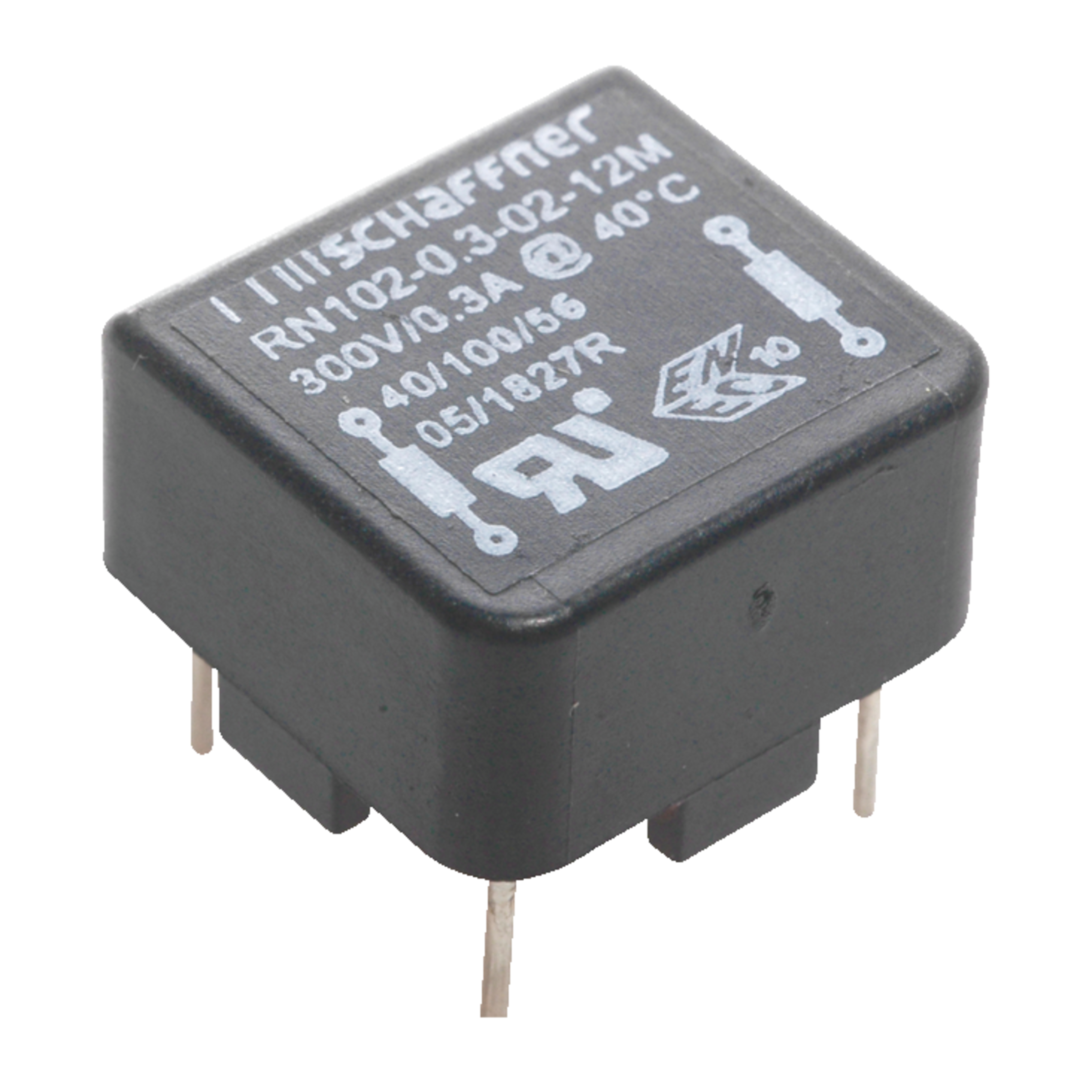

RN102-0.3-02-12M
Schaffner Inductors Current-compensated chokes RN102 0,3A 12mH -30-50 vertical moulded
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
285 Pcs. in stock
Next Stock Receipt
Week 19/2026
600 Pcs.
600 Pcs.
Planned delivery time
Ø 28 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 600 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Kind
- Current-compensated chokes
- Inductance
- 12 mH
- Inductance tolerance[%]
- -30 - 50
- Nominal resistance
- 1.100 mOhm
- Rated current
- 0.3 A
- Dimension: Length
- 14 mm
- Dimension: Width
- 14 mm
- Dimension: Height
- 9 mm
- Structure
- moulded
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 14 mm
- Dimension: Width
- 14 mm
- Dimension: Height
- 9 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 100 °C
Technical Features
- Inductance
- 12 mH
- Inductance value
- 12
- Inductance unit
- mH
- Inductance tolerance[%]
- -30 - 50
- Nominal resistance
- 1.100 mOhm
- Rated Voltage
- 300 V AC
- Rated current
- 0.3 A
- Structure
- moulded
Safety/Certifications
- Approvals
- ENEC10
- UL
- VDE
