FN9260S-6-06-10
Schaffner IEC filter FN 9260 Snap-on assembly 250V 6A IP40
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 60 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 60 or multiple of 60)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- FN 9260
- Type
- IEC filter
- Rated voltage at 50/60Hz
- 250 V
- Rated current
- 6 A
- Approvals
- CE
CQC
ENEC14
UK CA
UL
cCSA - Protection class front side
- IP40
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 34 mm
- Dimension: Width
- 35 mm
- Dimension: Height
- 41 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Rated voltage at 50/60Hz
- 250 V
- Dielectric strength, 2s, conductor/earth
- 2 kV AC
- Dielectric strength, 2s, conductor/conductor
- 0,76 kV AC
- Rated current
- 6 A
- Leakage current, max.
- 310 µA

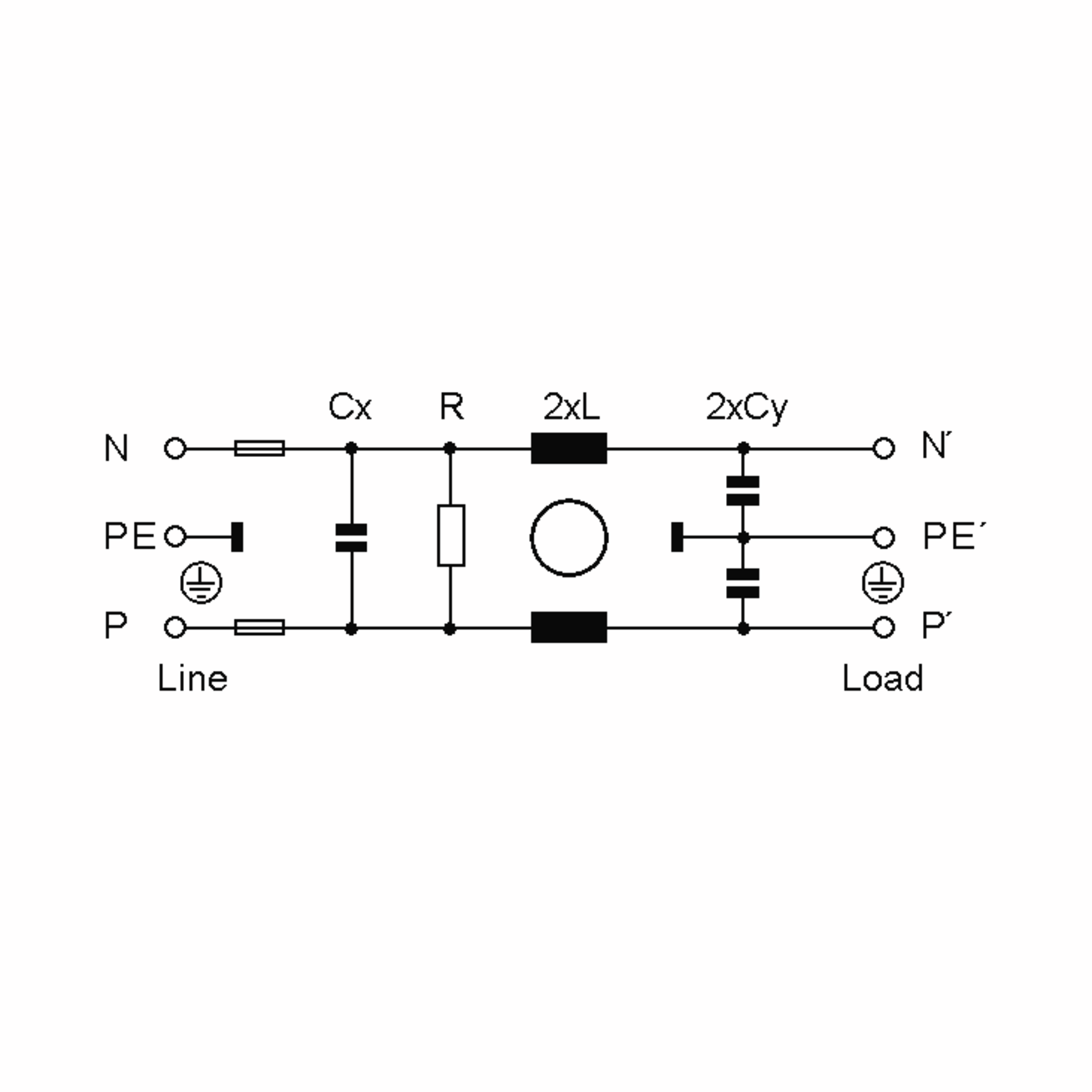

- Inductance
- 0.3 mH
- Cx
- 0,1 µF
- Cy
- 2,2 nF
Safety/Certifications
- Approvals
- CE
- CQC
- ENEC14
- UK CA
- UL
- cCSA
- Protection class front side
- IP40
- Standards
- UL 60939-3; CSA Std C22.2 No. 8-13; IEC 60939-3; EN 60939-3; GB/T15287, GB/T15288; IEC 60601-1; EN 60601-1
