FN9222-3-06
Schaffner IEC filter FN 9222 Panel mounting 250V 3A IP40
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
47 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 60 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- FN 9222
- Type
- IEC filter
- Rated voltage at 50/60Hz
- 250 V
- Rated current
- 3 A
- Approvals
- CE
CQC
ENEC14
UK CA
UL
cCSA - Protection class front side
- IP40
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 48 mm
- Dimension: Width
- 22.4 mm
- Dimension: Height
- 38.25 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage at 50/60Hz
- 250 V
- Dielectric strength, 2s, conductor/earth
- 2 kV AC
- Dielectric strength, 2s, conductor/conductor
- 1 kV AC
- Rated current
- 3 A
- Leakage current, max.
- 0,31 mA

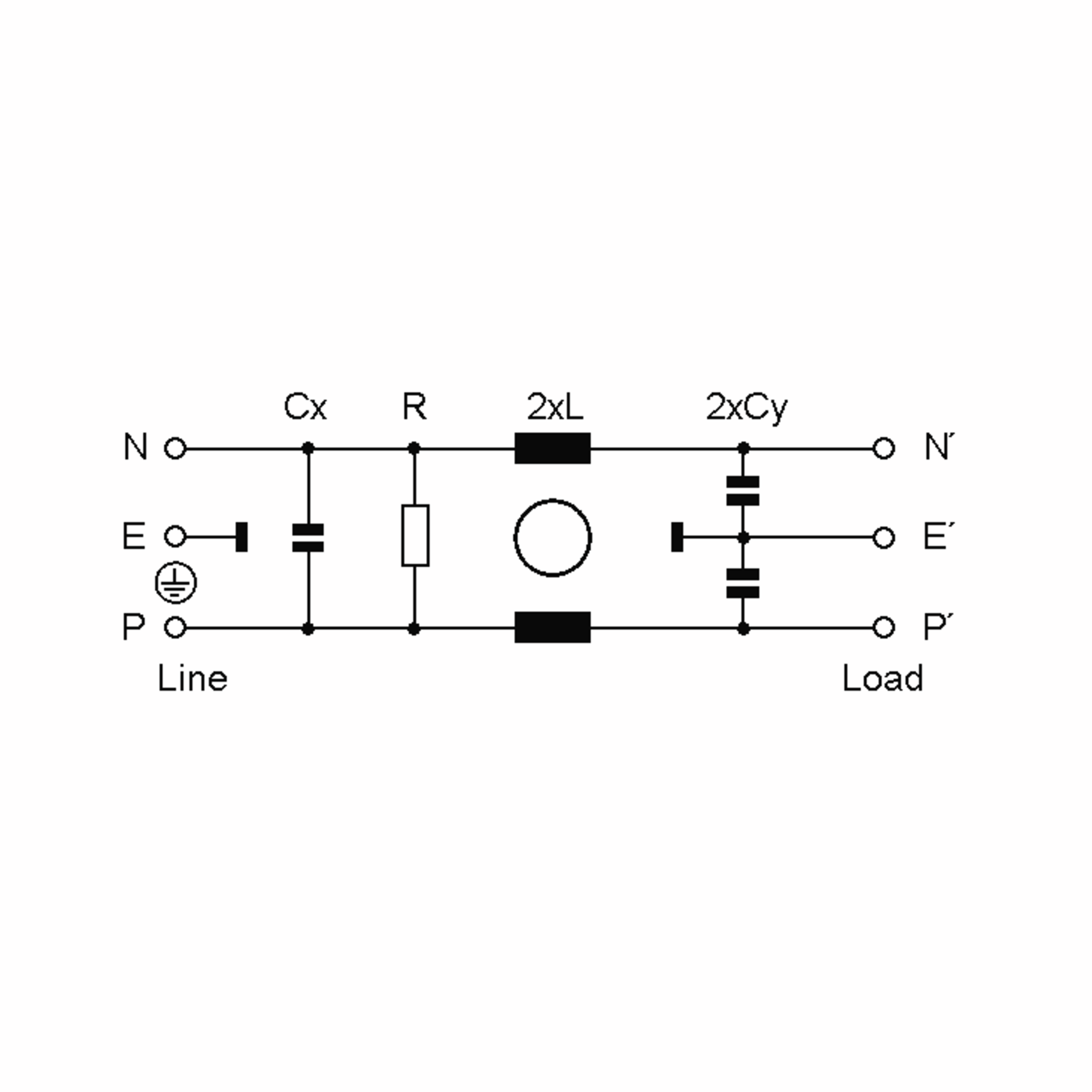

- Inductance
- 2.5 mH
- Cx
- 0,1 µF
- Cy
- 2,2 nF
Safety/Certifications
- Approvals
- CE
- CQC
- ENEC14
- UK CA
- UL
- cCSA
- Protection class front side
- IP40
- Standards
- UL 1283; CSA 22.2 No. 8 1986; IEC 60939; EN 60939; IEC 60601-1; EN 60601-1
