FN406B-0.5-02

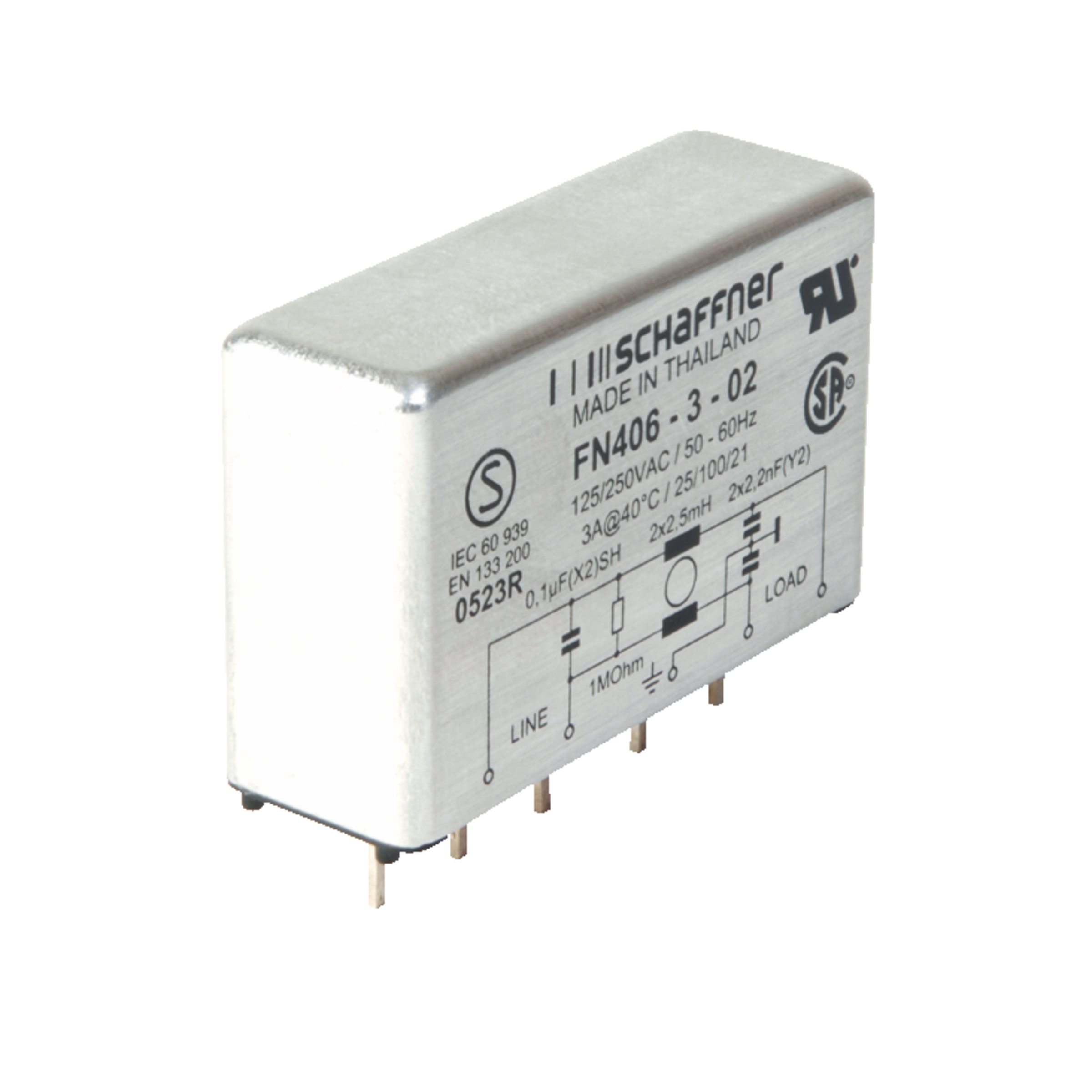

Schaffner Printed circuit board filter FN 406 Printed circuit board assembly 250V 0,5A Medical
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
50 Pcs.
50 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- FN 406
- Type
- Printed circuit board filter
- Rated voltage at 50/60Hz
- 250 V
- Rated current
- 0.5 A
- Approvals
- ENEC14
IEC
UL
cCSA - RoHS-Conform
Specifications
Open all

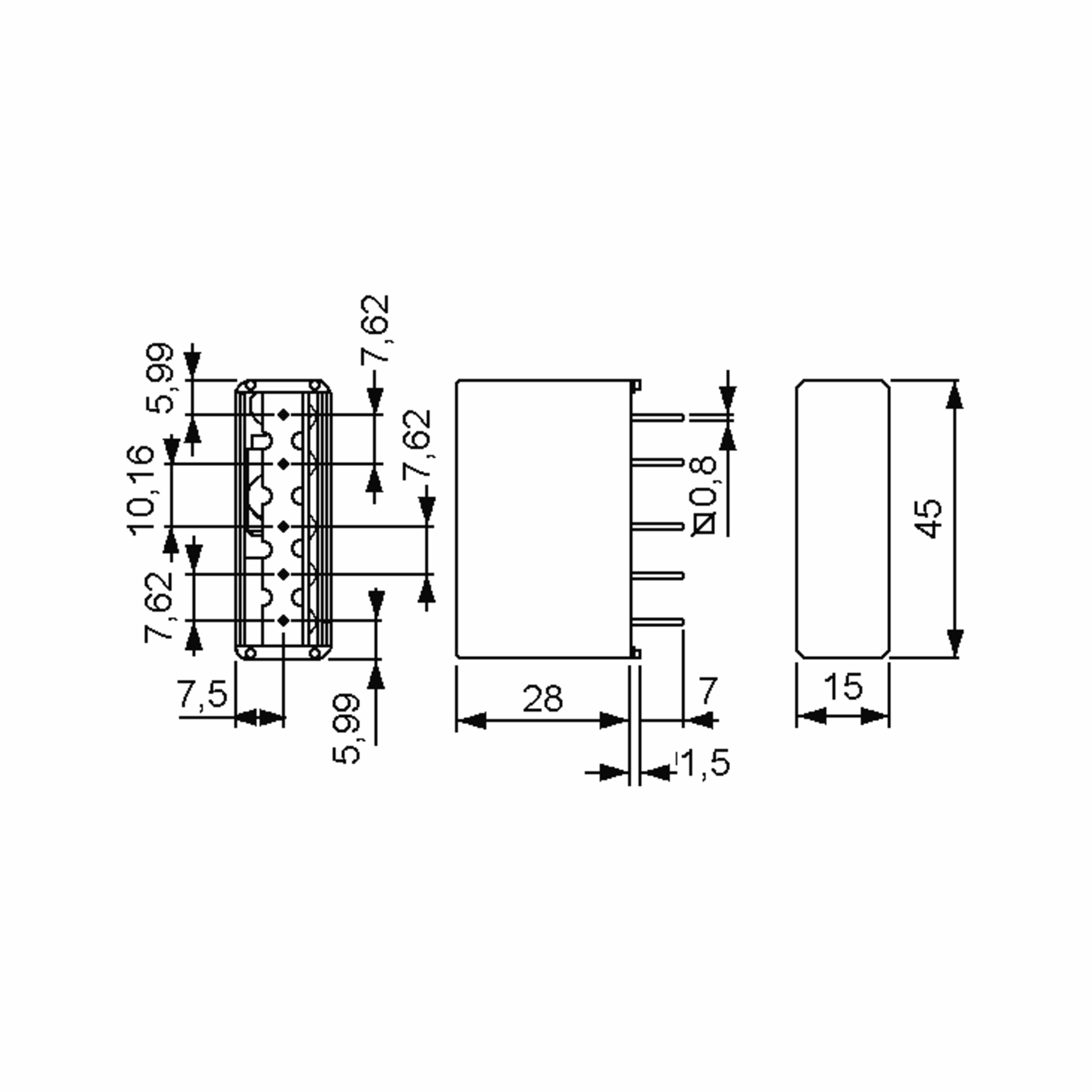

Dimensions and weights
- Dimension: Length
- 45 mm
- Dimension: Width
- 15 mm
- Dimension: Height
- 28 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 100 °C
Technical features
- Rated voltage at 50/60Hz
- 250 V
- Dielectric strength, 2s, conductor/earth
- 2,5 kV AC
- Dielectric strength, 2s, conductor/conductor
- 0,76 kV AC
- Rated current
- 0.5 A
- Leakage current, max.
- 2 µA

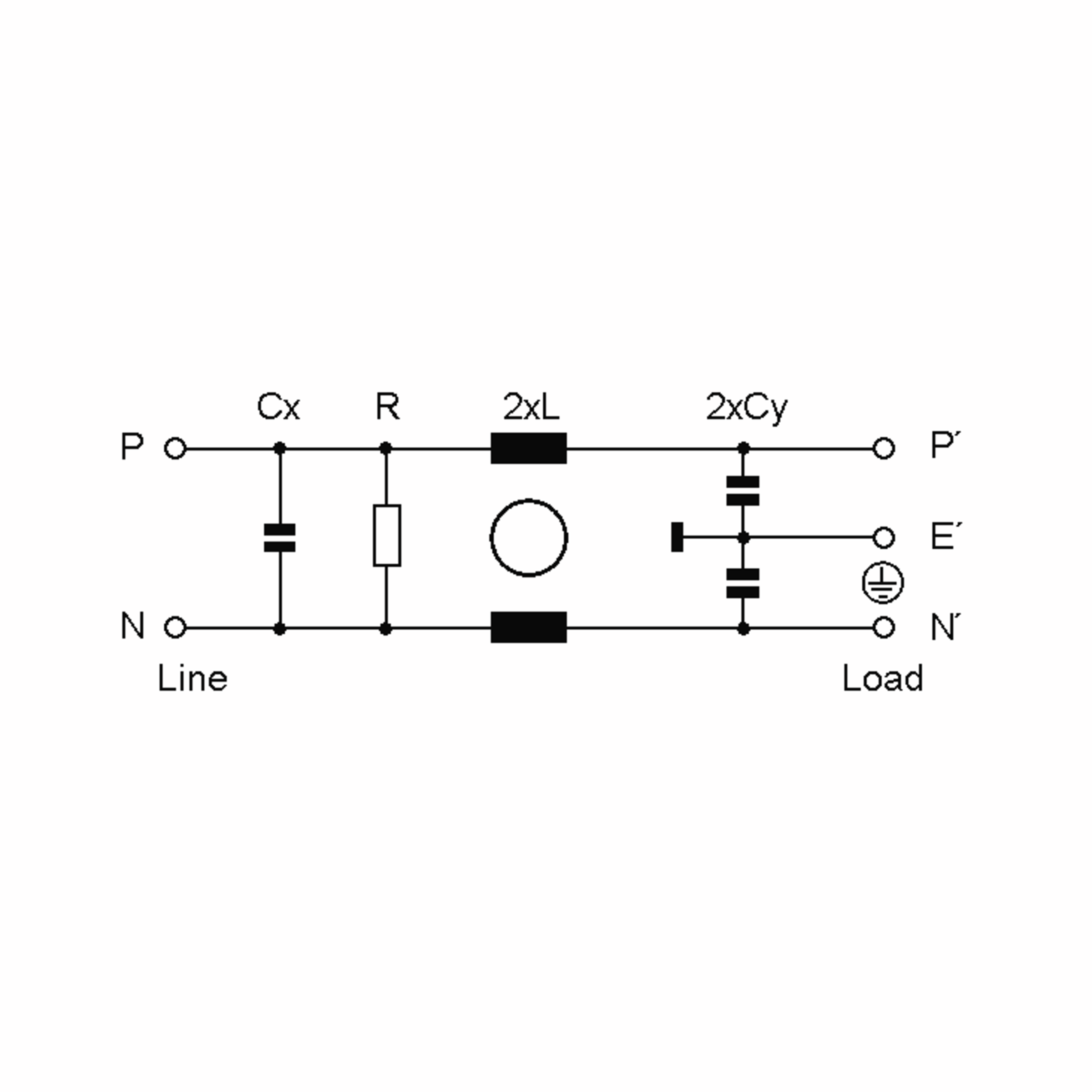

- Inductance
- 24 mH
- Cx
- 100 nF
Safety/Certifications
- Approvals
- ENEC14
- IEC
- UL
- cCSA
- Standards
- UL 1283; CSA 22.2 No. 8 1986; IEC 60939; EN 60939
