FN3258H-55-34

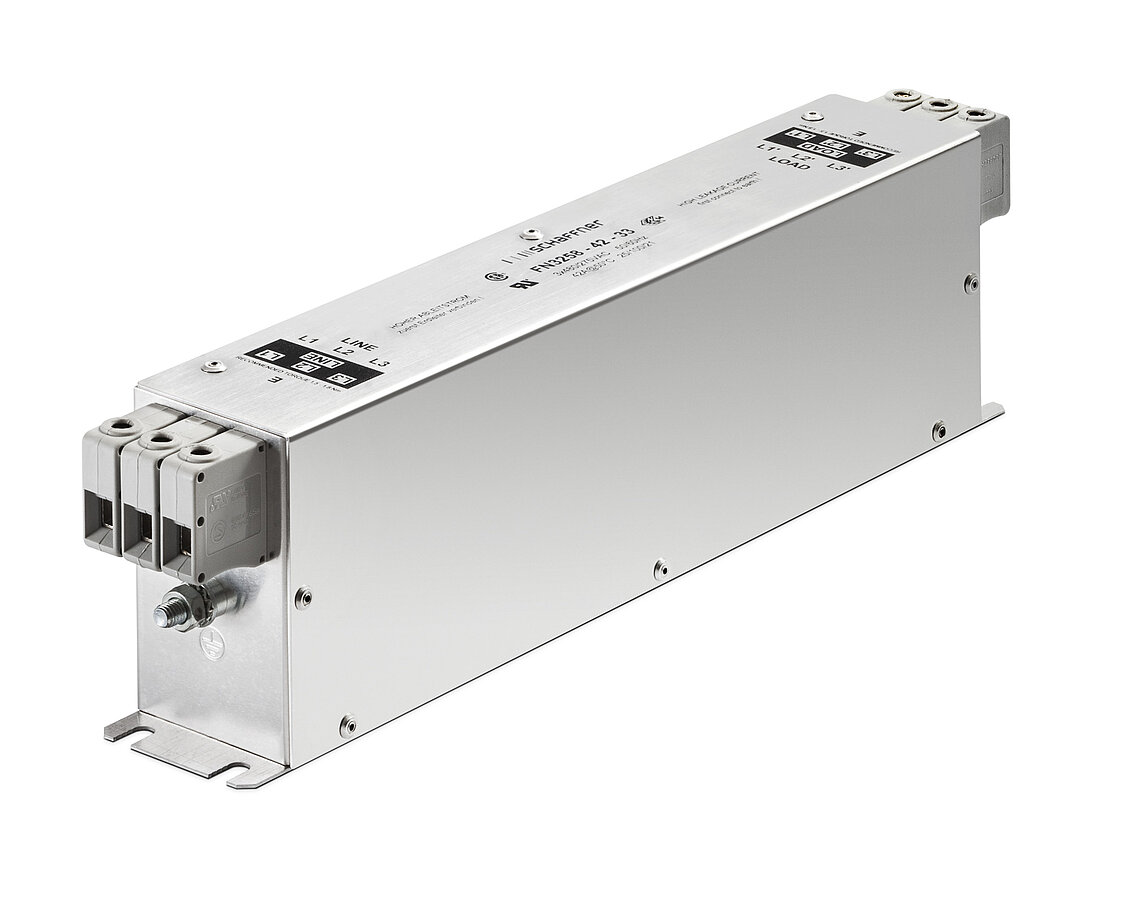

Schaffner Three-phase filter FN3258 Chassis assembly 520V 55A IP20
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- FN3258
- Type
- Three-phase filter
- Rated voltage at 50/60Hz
- 520 V
- Rated current
- 55 A
- Approvals
- CE
ENEC14
UK CA
UL
cCSA - Protection class front side
- IP20
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 250 mm
- Dimension: Width
- 85 mm
- Dimension: Height
- 90 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 100 °C
Technical Features
- Rated voltage at 50/60Hz
- 520 V
- Dielectric strength, 2s, conductor/earth
- 2,75 kV DC
- Dielectric strength, 2s, conductor/conductor
- 2,25 kV DC
- Rated current
- 55 A
- Leakage current, max.
- 4,7 mA
- Climate category
- 25/100/21
Safety/Certifications
- Approvals
- CE
- ENEC14
- UK CA
- UL
- cCSA
- Protection class front side
- IP20
- Standards
- UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939
