FN2070B-16-06
Schaffner Single-phase filter FN 2070 Chassis assembly 250V 16A Medical
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
10 Pcs.
10 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- FN 2070
- Type
- Single-phase filter
- Rated voltage at 50/60Hz
- 250 V
- Rated current
- 16 A
- Approvals
- CE
ENEC14
UK CA
UL
cCSA - RoHS-Conform
Specifications
Open all

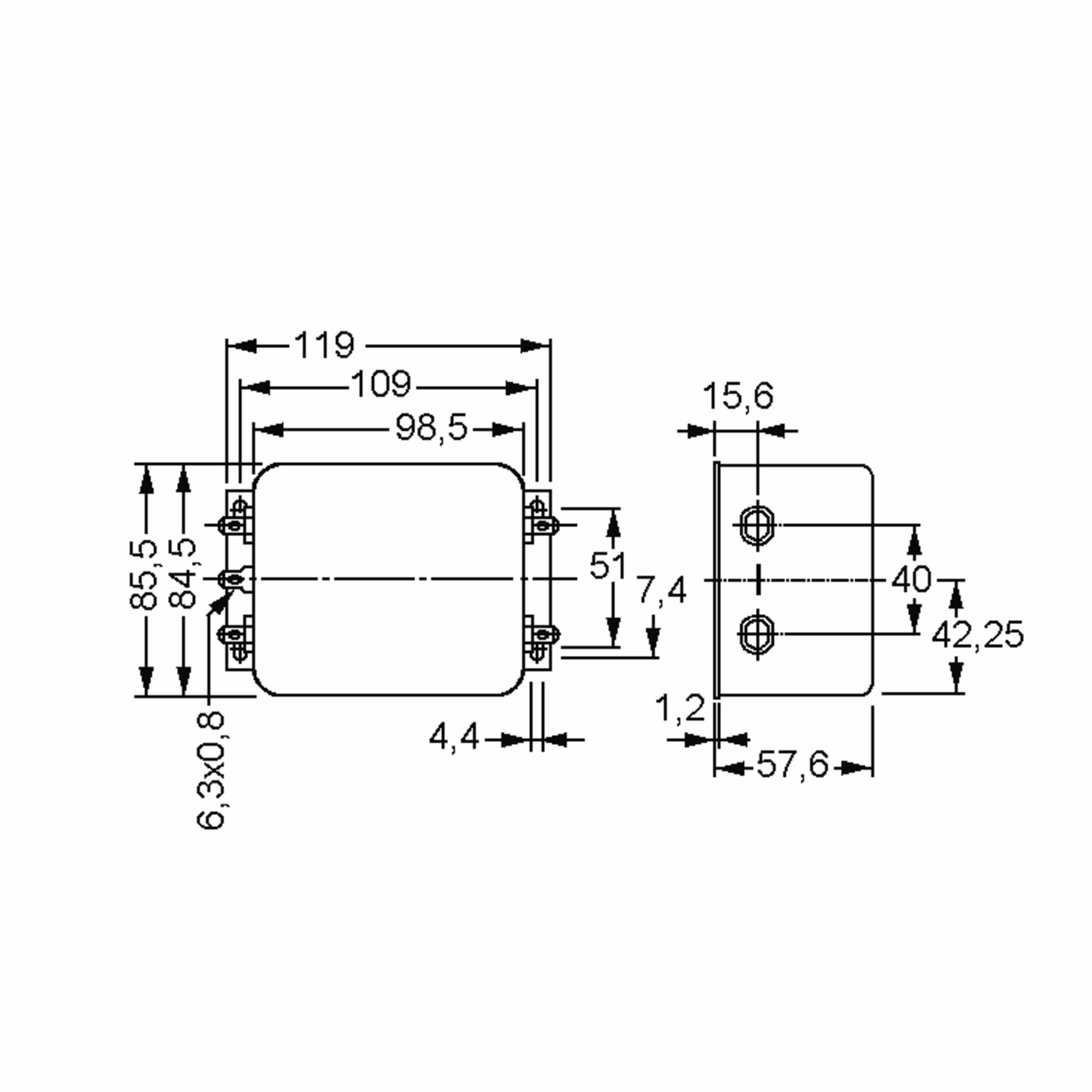

Dimensions and Weights
- Dimension: Length
- 119 mm
- Dimension: Width
- 85.5 mm
- Dimension: Height
- 57.6 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 100 °C
Technical Features
- Rated voltage at 50/60Hz
- 250 V
- Dielectric strength, 2s, conductor/earth
- 2,5 kV AC
- Dielectric strength, 2s, conductor/conductor
- 1,1 kV DC
- Rated current
- 16 A
- Inductance
- 2.8 mH
- Cx
- 1 µF
Safety/Certifications
- Approvals
- CE
- ENEC14
- UK CA
- UL
- cCSA
- Standards
- UL 1283; CSA 22.2 No. 8 1986; IEC 60939; EN 60939
