TS-21A-UR1-E-H

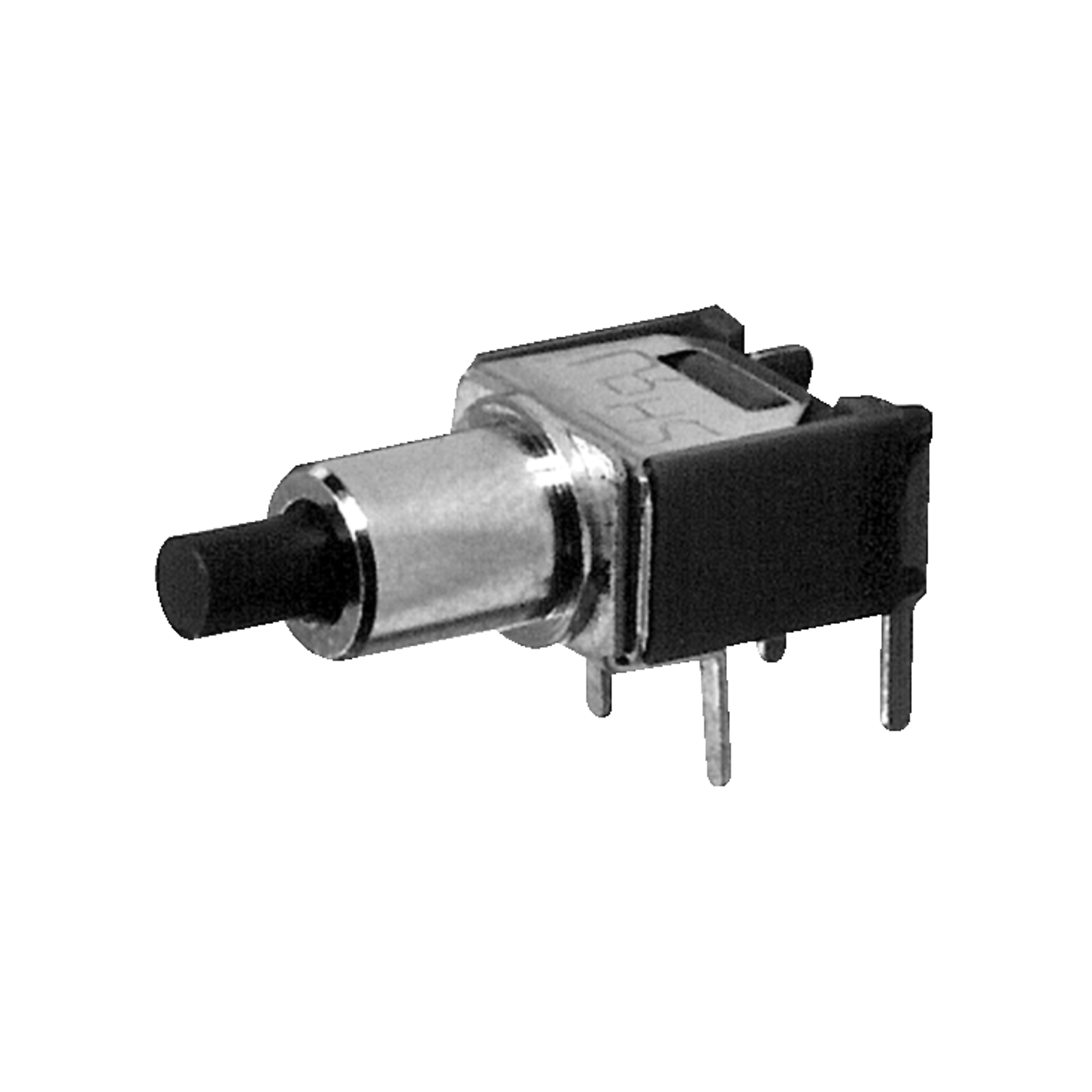

Salecom Pushbutton switch TS-40-P 1x0-E Solder pin black unlit
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
5.490 Pcs. in stock
Planned delivery time
Ø 15 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Pushbutton switch
- Series
- TS-40-P
- Body colour
- black
- contacts
- 1xNO
- Type of actuator
- Plunger
- Function
- 1x0-E
- Actuator colour
- black
- Number of poles
- 1
- illumination
- unlit
- Operating temperature range, min.
- -30 °C
- Operating temperature range, max.
- 85 °C
- Approvals
- UL
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating temperature range, min.
- -30 °C
- Operating temperature range, max.
- 85 °C
Technical features
- Contact resistance
- 20 mOhm
- Insulation resistance, min.
- 1,000 MOhm
- Material: Body
- Diallyl phthalate (DAP)
- Material: Terminals
- Brass, silver plated
Mechanical properties
- Connection
- Solder pin
- Number of poles
- 1
Safety/Certifications
- Approvals
- UL
