TS-13-A1-2-CR1-E-H

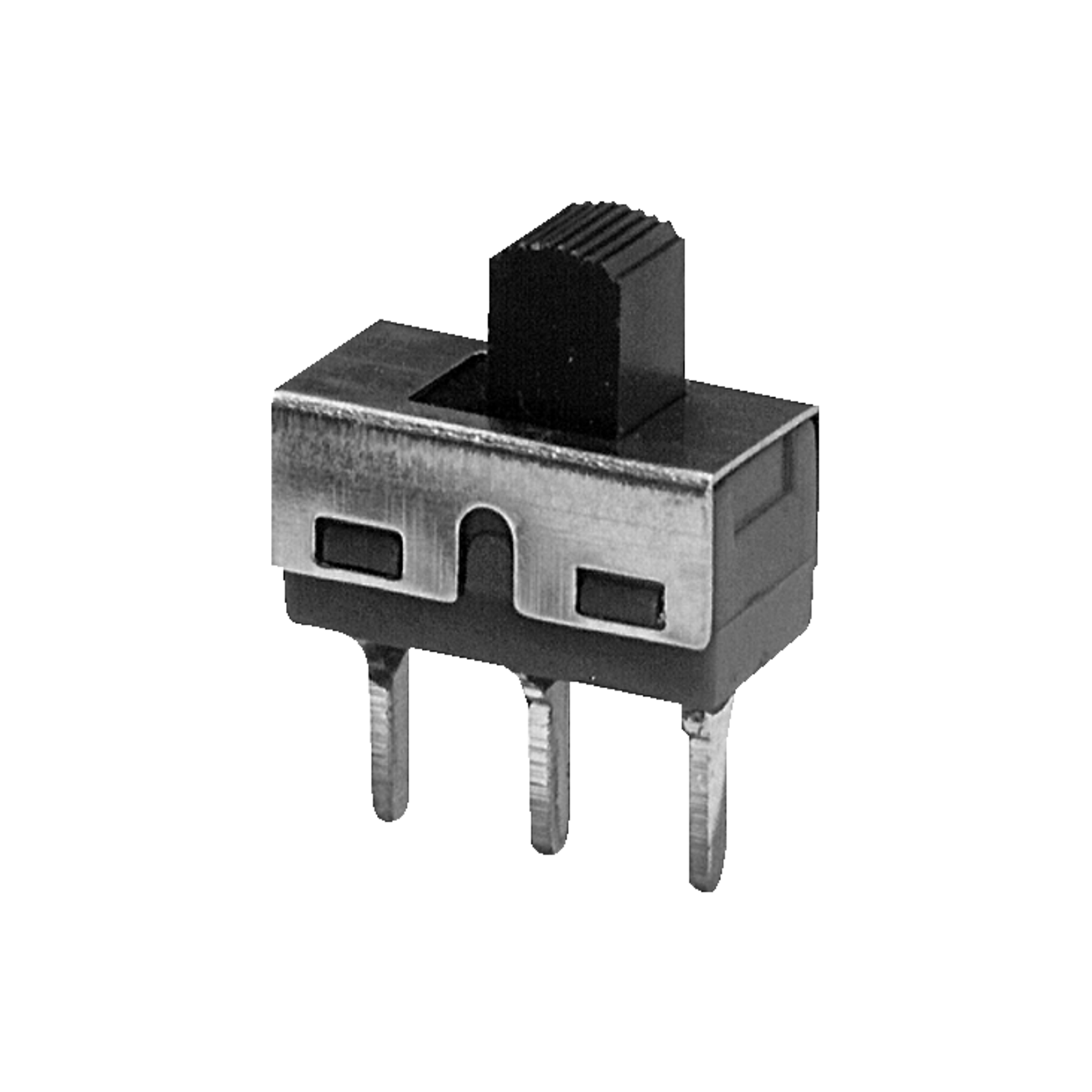

Salecom Slide Switches T80-S 1xCO RM4,7mm 125VAC 6A

Manufacturer Part No.
TS-13-A1-2-CR1-E-H
Schukat Part No.
MSS13ASP
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

2.780 Pcs. in stock

Planned delivery time
Ø 15 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Slide Switches
Series
T80-S
contacts
1xCO
Pitch
4.7 mm
Function
1xCO
illumination
unlit
Switching current, max.
6 A
Operating temperature range, min.
-30 °C
Operating temperature range, max.
85 °C
Approvals
UL
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Salecom
Series
  • T80-S
Product group
  • E2831 Miniature Slide Switches
Type
  • Slide Switches
contacts
  • 1xCO
Function
  • 1xCO
illumination
  • unlit
Features
  • - With print (MSS13) or soldering (TS-11) connections which are sealed against dirt and fluxing agent
    - Washable using all conventional cleaning agents
    - Small dimensions
    - Suitable for use in applications with limited space

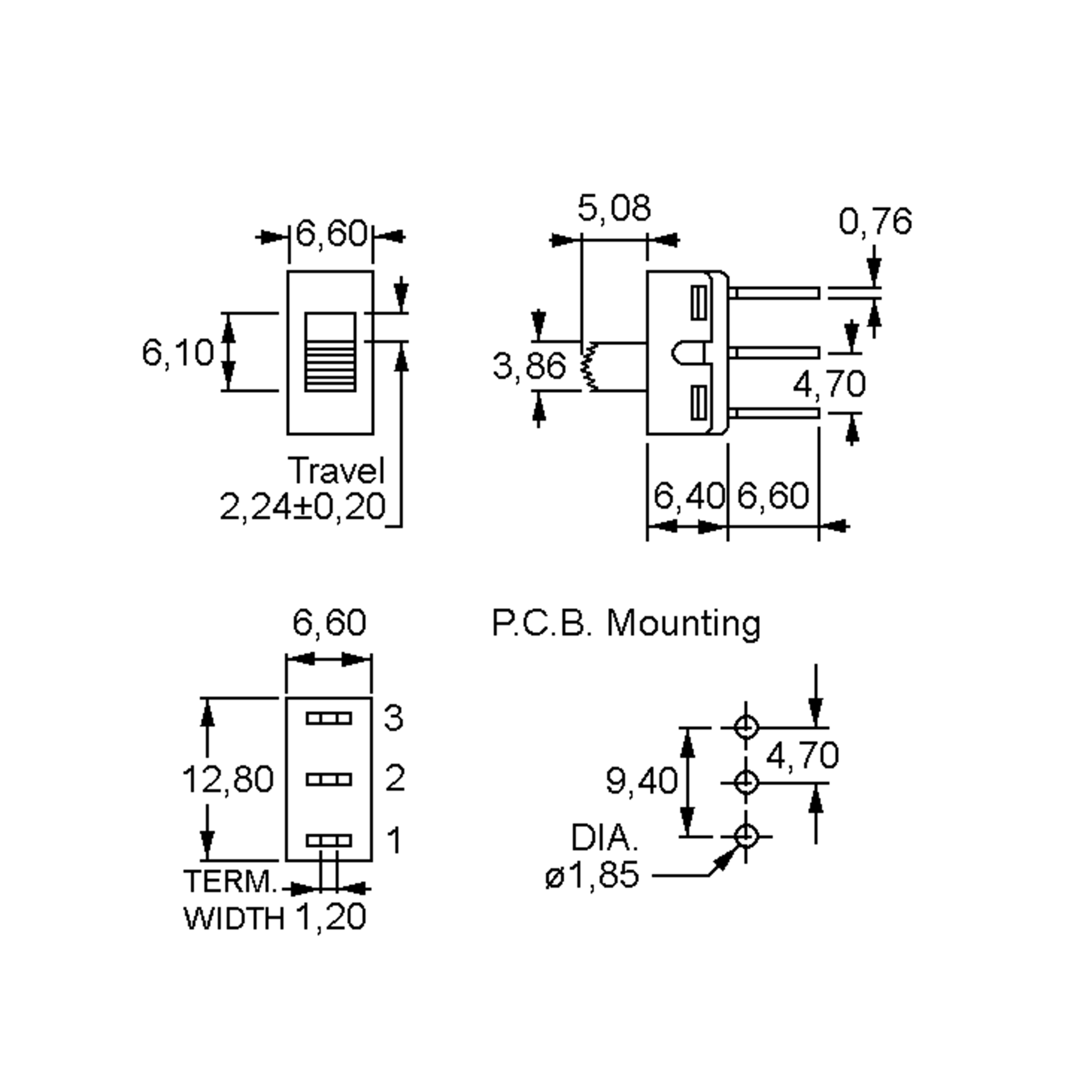

Dimensions and weights

Pitch
  • 4.7 mm

Operating conditions

Operating temperature range, min.
  • -30 °C
Operating temperature range, max.
  • 85 °C

Technical features

Switching voltage
  • 125 V AC
Dielectric Strength
  • 1.500 Veff
Switching current, max.
  • 6 A
Contact resistance
  • 10 mOhm
Insulation resistance, min.
  • 1,000 MOhm
Material: Body
  • Diallyl phthalate (DAP)
Material: Actuator
  • Nylon
Material: Terminals
  • Brass, gold plated over nickel

Mechanical properties

Connection
  • Solder pin

Safety/Certifications

Approvals
  • UL
